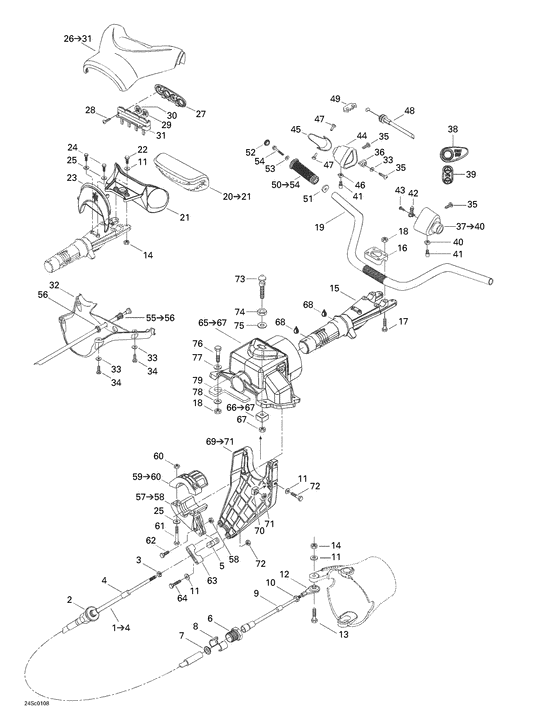

07- steering system Diagram Bombardier RX
- Year
- 2001
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
277000891
Tampon guidon *pad-handle
RX (YELLOW).; |
277000891 |
— | ||
|
1
|
1
277001011
Cable direction*cable-steering
Includes 1 - 4.; |
277001011 |
— | ||
| replacement | |||||
|
1
|
1
277001321 Cable direction*cable-steeringIncludes 1 - 4.; |
277001321 |
US $223.33 |
||
|
2
|
2
277000782 Bouton ajust. *knob-ajust. |
277000782 |
US $22.39 |
||
|
3
|
3
211100056 Nut-hex. 1/4-28 ss-304 |
211100056 |
US $8.80 |
||
|
4
|
4
277000441 Racleur *wiper-terminal |
277000441 |
US $12.58 |
||
|
5
|
5
277000774
Joint a rotule *joint-ball
|
277000774 |
— | ||
| replacement | |||||
|
5
|
5
277001180 Joint a rotule *ball joint |
277001180 |
US $40.92 |
||
|
6
|
6
277000784
Barrure cable *lock-cable
|
277000784 |
— | ||
| replacement | |||||
|
6
|
6
277001729 STEERING CABLE LOCK |
277001729 |
from US $14.20 |
||
|
7
|
7
293830063 Rondelle caout.*rubber washer |
293830063 |
US $24.30 |
||
|
8
|
8
277000783
Demi-bague *half-ring
|
277000783 |
— | ||
|
9
|
9
277000441 Racleur *wiper-terminal |
277000441 |
US $12.58 |
||
|
10
|
10
211100056 Nut-hex. 1/4-28 ss-304 |
211100056 |
US $8.80 |
||
|
11
|
11
234061600 Washer-flat din.125a-a2 |
234061600 |
US $10.25 |
||
|
12
|
12
277000775 Joint a rotule *joint-ball |
277000775 |
US $58.48 |
||
|
13
|
13
207063560 Screw-hex.cap din.931a2 |
207063560 |
US $14.35 |
||
|
14
|
14
232561600 Nut-stop elastic din.985-a2 |
232561600 |
US $7.40 |
||
|
15
|
15
277000562400
Tige direction *stem-steering
|
277000562400 |
— | ||
|
16
|
16
277000142 Bride direction*clamp-steering |
277000142 |
US $11.02 |
||
|
17
|
17
207085060 Screw-hex.cap din.931a2 |
207085060 |
US $10.65 |
||
|
18
|
18
232581650
Nut-stop elastic din.985a2 wax/lube
|
232581650 |
— | ||
|
19
|
19
277000824
Guidon *bar-handle
|
277000824 |
— | ||
| replacement | |||||
|
19
|
19
277001450 Guidon *bar-handle |
277001450 |
US $149.89 |
||
|
20
|
20
277000931
Tampon guidon *pad-handle
Includes 20 - 21. RX (BLUE).; |
277000931 |
— | ||
|
21
|
21
277000687 Support tampon *support-pad |
277000687 |
US $19.33 |
||
|
22
|
22
207063060 Screw-hex.cap din.931a2 |
207063060 |
US $12.15 |
||
|
23
|
23
277000549 Plaque mar.noir*plate-mar.blac |
277000549 |
US $21.39 |
||
|
24
|
24
211000036 Screw-forming hex.hd. |
211000036 |
US $10.65 |
||
|
25
|
25
234062600 Washer-flat din.9021b-a2 |
234062600 |
US $10 |
||
|
26
|
26
277000753
Couvre guidon *cover-stee.sup
Includes 26 - 31.; |
277000753 |
— | ||
|
27
|
27
277000688 Plaque retenue *plate-retainer |
277000688 |
US $21.39 |
||
|
28
|
28
241140060 Screw-pt.hex.flange k40 x 10 |
241140060 |
US $9.60 |
||
|
29
|
29
293000079
Bouton mode *knob-mode
|
293000079 |
— | ||
| replacement | |||||
|
29
|
29
293000099 Bouton set *knob-set |
293000099 |
US $55.85 |
||
|
30
|
30
293000080
Bouton set *knob-set
|
293000080 |
— | ||
| replacement | |||||
|
30
|
30
293000099 Bouton set *knob-set |
293000099 |
US $55.85 |
||
|
31
|
31
277000563
Support inter *support-switch
|
277000563 |
— | ||
|
32
|
32
277000625 Couvre guidon *cover-stee.inf |
277000625 |
US $111.13 |
||
|
33
|
33
234051600 Washer-flat din.125a-a2 |
234051600 |
US $10 |
||
|
34
|
34
241141660 Screw-pt.hex.flange k40 x 16 |
241141660 |
US $9.60 |
||
|
35
|
35
209630960 Screw-tapp.pan hd.ph.din.7981c-a2 |
209630960 |
US $5.35 |
||
|
36
|
36
293450153 Ajout *insert |
293450153 |
US $12.19 |
||
|
37
|
37
277000877 Log.gauche ass.*housing-assy.Includes 37 - 40.; |
277000877 |
US $66.77 |
||
|
38
|
38
277000306
Bouton inter. *knob-switch
|
277000306 |
— | ||
|
39
|
39
277000497 Bouton de vts *knob-vts |
277000497 |
US $60.95 |
||
|
40
|
40
232860600
Nut-square thin m6 din.562a2
|
232860600 |
— | ||
|
41
|
41
250000036 Screw-socket set m6x16 ss304-a2 |
250000036 |
US $16.30 |
||
|
42
|
42
277000845
Plaque retenue *plate-retainer
|
277000845 |
— | ||
| replacement | |||||
|
42
|
42
277001213 Plaque *plate |
277001213 |
US $57.45 |
||
|
43
|
43
209631360 Screw-tapp.pan hd.ph.din.7981c-a2 |
209631360 |
US $9.80 |
||
|
44
|
44
277000872 Log.man.acc. *housing-thrott |
277000872 |
US $26.49 |
||
|
45
|
45
277000214
Manette acc. *handle-throttl
|
277000214 |
— | ||
| replacements | |||||
|
45
|
45
277000872 Log.man.acc. *housing-thrott |
277000872 |
US $26.49 |
||
|
45
|
45
277001485 Manette acc. *throttle handle |
277001485 |
US $17.82 |
||
|
46
|
46
232860600
Nut-square thin m6 din.562a2
|
232860600 |
— | ||
|
47
|
47
277000381 Goupille *pin |
277000381 |
US $11.15 |
||
|
48
|
48
277000915 Cable accelerat*cable-throttle |
277000915 |
US $194.79 |
||
|
49
|
49
277000279 Patte verrouil.*lock-tab |
277000279 |
US $45.65 |
||
|
50
|
50
295500691 Black handle grip kitIncludes 50 - 54.; |
295500691 |
US $36.72 |
||
|
52
|
52
277000203 Capuchon gaine *cap-grip black |
277000203 |
US $20.02 |
||
|
53
|
53
234062600 Washer-flat din.9021b-a2 |
234062600 |
US $10 |
||
|
54
|
54
250000002 Screw-hex.cap din.933a2 s.grip |
250000002 |
US $29.75 |
||
|
55
|
55
270000383 Cable etrang. *cable-chokeIncludes 55 - 56.; |
270000383 |
US $79.53 |
||
|
56
|
56
211100030
Nut-hexagonal hi-lex
|
211100030 |
— | ||
|
57
|
57
277000518
Support *support
Includes 57 - 58.; |
277000518 |
— | ||
|
58
|
58
232561600 Nut-stop elastic din.985-a2 |
232561600 |
US $7.40 |
||
|
59
|
59
277000519
Palier bras *thrust-arm
Includes 59 - 60.; |
277000519 |
— | ||
| replacement | |||||
|
59
|
59
277001473
Palier bras *thrust-arm
Includes 59 - 60.; |
277001473 |
— | ||
|
60
|
60
232561600 Nut-stop elastic din.985-a2 |
232561600 |
US $7.40 |
||
|
61
|
61
207162560 Screw-hex.cap din.933a2 |
207162560 |
US $9.50 |
||
|
62
|
62
211000081 Screw-hex.cap |
211000081 |
US $23.90 |
||
|
63
|
63
277000162
Palier support *thrust support
|
277000162 |
— | ||
|
64
|
64
207065060 Screw-hex.cap din.931a2 |
207065060 |
US $14.35 |
||
|
65
|
65
277000515
Support direct.*support-steer.
Includes 65 - 67.; |
277000515 |
— | ||
| replacement | |||||
|
65
|
65
277001471 Support direct.*support-steer.Includes 65 - 67.; |
277001471 |
US $270.27 |
||
|
66
|
66
271000598 Logement ecrou *housing-nutIncludes 66 - 67.; |
271000598 |
US $14.67 |
||
|
67
|
67
232501600 Nut-stop elastic din.985a2 |
232501600 |
US $10.65 |
||
|
68
|
68
293550010 Graisse synth. *grease-synth. |
293550010 |
US $33.61 |
||
|
69
|
69
277000516
Support cable *support-cable
Includes 69 - 71.; |
277000516 |
— | ||
|
70
|
70
269500252 Logement ecrou *housing-nut as |
269500252 |
US $19.22 |
||
|
71
|
71
232561600 Nut-stop elastic din.985-a2 |
232561600 |
US $7.40 |
||
|
72
|
72
207162060 Screw-hex.cap din.933a2 |
207162060 |
US $8.75 |
||
|
73
|
73
291000689 Ergot d ancrage*stud-latch |
291000689 |
US $34.63 |
||
|
74
|
74
232100600 Nut-jam hexagonal din.439b-a2 |
232100600 |
US $14.35 |
||
|
75
|
75
234002600 Washer-flat din.9021b-a2 |
234002600 |
US $14.35 |
||
|
76
|
76
207083560 Screw-hex.cap din.931a2 |
207083560 |
US $19 |
||
|
77
|
77
234081600 Washer-flat din.125a-a2 |
234081600 |
US $7.10 |
||
|
78
|
78
234082600 Washer-flat din.9021b-a2 |
234082600 |
US $31.10 |
||
|
79
|
79
293250068
Joint etanche *gasket
|
293250068 |
— | ||
| replacement | |||||
|
79
|
79
293250171 Joint etanche *gasket |
293250171 |
US $35.64 |
||
