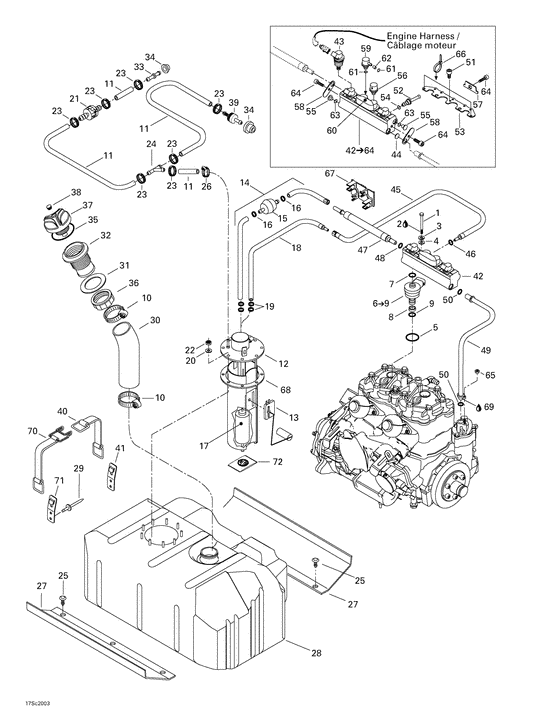

02- fuel system Diagram Bombardier RX
- Year
- 2000
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
207087060 Screw-hex.cap din.931a2 |
207087060 |
US $14.20 |
||
|
2
|
2
293800060 Loctite 243 *loctite-243 |
293800060 |
US $31.18 |
||
|
3
|
3
234181601 Washer-lock helical din.127b-a2 |
234181601 |
US $7.10 |
||
|
4
|
4
234081600 Washer-flat din.125a-a2 |
234081600 |
US $7.10 |
||
|
5
|
5
293300054
Joint torique *o-ring
|
293300054 |
— | ||
|
6
|
6
275500451
Injecteur d air*injector-air
Includes 6 - 9.; |
275500451 |
— | ||
| replacement | |||||
|
6
|
6
219700275 Injecteur d air*injector-airIncludes 6 - 9.; |
219700275 |
US $386.53 |
||
|
7
|
7
293300066 Joint torique *o-ring |
293300066 |
US $19.56 |
||
|
8
|
8
270600030 Bague injecteur*injector ring |
270600030 |
US $20.37 |
||
|
9
|
9
293300076
Joint torique *o-ring
|
293300076 |
— | ||
|
10
|
10
293650023 Bride serrage *clamp-tridon |
293650023 |
US $70.70 |
||
|
11
|
11
275500139
Boyau 6mm. *hose-6mm.
|
275500139 |
— | ||
|
12
|
12
275500432
Module essence *module-fuel ass y
Includes 12 - 18.; |
275500432 |
— | ||
| replacement | |||||
|
12
|
12
275500641 Module essence *module-fuel ass yIncludes 12 - 18.; |
275500641 |
US $1,242.34 |
||
|
13
|
13
270600012
Levier capteur *level-sensor
|
270600012 |
— | ||
|
14
|
14
275500439
Boyau assemble *hose-ass y
|
275500439 |
— | ||
| replacement | |||||
|
14
|
14
275500642
Boyau assemble *hose-ass y
|
275500642 |
— | ||
|
15
|
15
275500501
Filtre essence *filter-fuel
|
275500501 |
— | ||
| replacement | |||||
|
15
|
15
275500503 Filtre essence *filter-fuel |
275500503 |
US $95.85 |
||
|
16
|
16
293650030 Bride serrage *clamp-oetiker |
293650030 |
US $69.50 |
||
|
17
|
17
275500500
New Genuine Part
|
275500500 |
— | ||
|
18
|
18
275500440
Fuel return hose ass'y
|
275500440 |
— | ||
|
19
|
19
293650030 Bride serrage *clamp-oetiker |
293650030 |
US $69.50 |
||
|
20
|
20
234052400 Washer-flat din.7349 |
234052400 |
US $91.75 |
||
|
21
|
21
275500416
Soupape retenue*valve-check
|
275500416 |
— | ||
| replacement | |||||
|
21
|
21
275500505 Soupape retenue*valve-check |
275500505 |
US $27.56 |
||
|
22
|
22
232551200 Nut-stop elastic din.985 |
232551200 |
US $19 |
||
|
23
|
23
293650042 Bride serrage *clamp-oetiker |
293650042 |
US $20.50 |
||
|
24
|
24
293710059 Raccord en y *y-connector |
293710059 |
US $10.97 |
||
|
25
|
25
293730006 Dard noir *dart-black |
293730006 |
US $6.70 |
||
|
26
|
26
293650038
Bride serrage *clamp-tridon
|
293650038 |
— | ||
|
27
|
27
293830077
Tampon caout. *pad-rubber
|
293830077 |
— | ||
|
28
|
28
275500427
Reservoir ess. *tank-fuel
|
275500427 |
— | ||
|
29
|
29
293150037 Rivet avdel *rivet-avdel 3/16 |
293150037 |
US $7.30 |
||
|
30
|
30
275500434
Boyau remplis. *hose-fil.neck
|
275500434 |
— | ||
|
31
|
31
293250029 Joint etanche *gasket |
293250029 |
US $16.13 |
||
|
32
|
32
275500231 Goulot remplis.*neck-filler |
275500231 |
US $12.68 |
||
|
33
|
33
293710039 Raccord droit *fitting-straig |
293710039 |
US $9.89 |
||
|
34
|
34
293720029 Passe-fils *grommet |
293720029 |
US $9.25 |
||
|
35
|
35
293250075
Joint etanche *gasket
|
293250075 |
— | ||
|
36
|
36
211100012 Nut-neck filler fuel |
211100012 |
US $14.14 |
||
|
37
|
37
275500430 Bouchon ess.sub*cap-fuel sub.Includes 37 - 38.; |
275500430 |
US $30.19 |
||
|
38
|
38
293000034 Capuchon press.*cap-snap black |
293000034 |
US $50.05 |
||
|
39
|
39
275500398 Soupape retenue*valve-check |
275500398 |
from US $12.38 |
||
|
40
|
40
293850036 Sangle res.ess.*strap-fuel tankIncludes 40 - 41.; |
293850036 |
US $18.22 |
||
|
41
|
41
293850024 Pince courroie *clip-strap |
293850024 |
US $157.30 |
||
|
42
|
42
275500433
Distributeur *distributor-fuel
Includes 42 - 64.; |
275500433 |
— | ||
| replacement | |||||
|
42
|
42
275500510
Distributeur *distributor-fuel
Includes 42 - 64.; |
275500510 |
— | ||
|
43
|
43
275500459
Distributeur *distributor-fuel
|
275500459 |
— | ||
| replacement | |||||
|
43
|
43
275500510
Distributeur *distributor-fuel
|
275500510 |
— | ||
|
44
|
44
275500457
Filtre a air *air-filter
|
275500457 |
— | ||
|
45
|
45
275500448
Boyau ass
Includes 45 - 46.; |
275500448 |
— | ||
|
46
|
46
293300070 Joint torique *o-ring |
293300070 |
US $16.76 |
||
|
47
|
47
275500447
Boyau ass
Includes 47 - 48.; |
275500447 |
— | ||
|
48
|
48
293300069 Joint torique *o-ring |
293300069 |
US $16.26 |
||
|
49
|
49
270600022
Boyau pression *hose-pressure
Includes 49 - 50.; |
270600022 |
— | ||
|
50
|
50
293300070 Joint torique *o-ring |
293300070 |
US $16.76 |
||
|
52
|
52
275500458
New Genuine Part
|
275500458 |
— | ||
|
54
|
54
293300069 Joint torique *o-ring |
293300069 |
US $16.26 |
||
|
55
|
55
275500535
Bouchon *cap
|
275500535 |
— | ||
|
57
|
57
275500456 Plaque retenue *plate-retainner |
275500456 |
US $48.93 |
||
|
58
|
58
275500455 Plaque retenue *plate-retainner |
275500455 |
US $50.97 |
||
|
63
|
63
293300073 Joint torique *o-ring |
293300073 |
US $8.13 |
||
|
64
|
64
205061260 Screw-socket hd.din.912a2 |
205061260 |
US $20.10 |
||
|
65
|
65
232561600 Nut-stop elastic din.985-a2 |
232561600 |
US $7.40 |
||
|
66
|
66
293750001 Tie rap 94mm *tie-rap 94mm |
293750001 |
US $66.50 |
||
|
67
|
67
291001399
Attache collier*tie-clamp
|
291001399 |
— | ||
|
68
|
68
293250088 Joint etanche *gasket |
293250088 |
US $14.64 |
||
|
69
|
69
293800070 Loct.anti grip.*loct-antiseize |
293800070 |
US $40.78 |
||
|
70
|
70
293850037 Sangle res.ess.*strap-fuel tankIncludes 70 - 71.; |
293850037 |
US $17.29 |
||
|
71
|
71
293850024 Pince courroie *clip-strap |
293850024 |
US $157.30 |
||
|
72
|
72
219700368 Filtreur bosch *bosch filter |
219700368 |
from US $43.86 |
||
