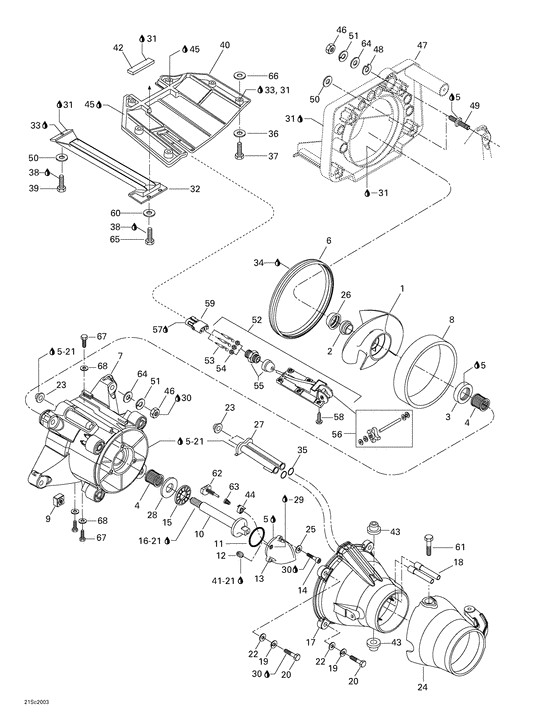

05- propulsion system Diagram Bombardier RX
- Year
- 2000
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
271000920 Helice stlss.as*impeller-assy. |
271000920 |
US $433.02 |
||
|
2
|
2
271000516 Prot.helice *boot-impeller |
271000516 |
US $20.80 |
||
|
3
|
3
293200065
Anneau etanche *oil seal
|
293200065 |
— | ||
| replacement | |||||
|
3
|
3
267000094 Anneau etanche *oil seal |
267000094 |
from US $24.34 |
||
|
4
|
4
293350017 Roulement aigui*needle bearing |
293350017 |
US $31.18 |
||
|
5
|
5
293800038 Loctite 518 *loctite-518 |
293800038 |
US $51.97 |
||
|
6
|
6
293200051 Anneau neoprene*neoprene seal |
293200051 |
US $18 |
||
|
7
|
7
271001143
Carter helice *housing-impel.
Includes 7 - 9.; |
271001143 |
— | ||
| replacement | |||||
|
7
|
7
267000314 Carter helice *housing-impel.Includes 7 - 9.; |
267000314 |
US $390.63 |
||
|
8
|
8
271000653 Bague d usure *wear ring |
271000653 |
US $64.33 |
||
|
9
|
9
211100033 Nut-square |
211100033 |
US $97.35 |
||
|
10
|
10
271000965 Arbre helice *shaft-impeller |
271000965 |
US $128.71 |
||
|
11
|
11
293300011 Joint torique *o-ring |
293300011 |
US $48.95 |
||
|
12
|
12
211500001 Plug-pipe socket hd sae-j-531 |
211500001 |
US $43.50 |
||
|
13
|
13
271000971
Couvercle turb.*cover-impeller
|
271000971 |
— | ||
| replacement | |||||
|
13
|
13
267000267 Couvercle turb.*cover-impeller |
267000267 |
US $21.39 |
||
|
14
|
14
205062560 Screw-socket hd.din.912a2 |
205062560 |
US $21.90 |
||
|
15
|
15
293350022 Palier a butee *thrust-bearing |
293350022 |
US $51.66 |
||
|
16
|
16
413705200
Loctite 262, 50 ml
|
413705200 |
— | ||
|
17
|
17
271001079
Venturi noir *venturi
|
271001079 |
— | ||
|
18
|
18
271001133 Tube de siphon *tube-siphon |
271001133 |
US $96.20 |
||
|
19
|
19
234181601 Washer-lock helical din.127b-a2 |
234181601 |
US $7.10 |
||
|
20
|
20
207084560 Screw-hex.cap din.931a2 |
207084560 |
US $21.75 |
||
|
21
|
21
293800041 Appret loctite *primer-loctite |
293800041 |
US $47.91 |
||
|
22
|
22
234081600 Washer-flat din.125a-a2 |
234081600 |
US $7.10 |
||
|
23
|
23
293250084 Joint torique *o-ring |
293250084 |
US $9.15 |
||
|
24
|
24
271001007
Buse direc.noir*nozzle-black
|
271001007 |
— | ||
| replacement | |||||
|
24
|
24
267000081 Buse direc.noir*nozzle-black |
267000081 |
US $157.05 |
||
|
25
|
25
234061600 Washer-flat din.125a-a2 |
234061600 |
US $10.25 |
||
|
26
|
26
271000517 Bague *ring |
271000517 |
US $104 |
||
|
27
|
27
271000785 Sortie d eau *outlet-water |
271000785 |
US $4.90 |
||
|
28
|
28
293350020 Rondelle appuie*thrust washer |
293350020 |
US $56.55 |
||
|
29
|
29
293600011 Huile de pompe *oil-pump |
293600011 |
US $256.68 |
||
|
30
|
30
293800060 Loctite 243 *loctite-243 |
293800060 |
US $31.18 |
||
|
31
|
31
293800066 Scellant 5900 *sealant-5900 |
293800066 |
US $65.25 |
||
|
32
|
32
271000763
Grille pompe *grate-pump
|
271000763 |
— | ||
| replacement | |||||
|
32
|
32
271001525
Grille pompe *grate-pump
|
271001525 |
— | ||
|
33
|
33
293800033
Scell.silicone *seal-silicone
|
293800033 |
— | ||
| replacement | |||||
|
33
|
33
293800086
Scell.silicone *seal-silicone
|
293800086 |
— | ||
|
34
|
34
413708300 Colle tube 20gr*glue-tube 20gr |
413708300 |
US $75.07 |
||
|
35
|
35
293300013 Joint torique *o-ring |
293300013 |
US $100 |
||
|
36
|
36
234081600 Washer-flat din.125a-a2 |
234081600 |
US $7.10 |
||
|
37
|
37
207383060 Screw-hex.cap din.933a2 s.grip |
207383060 |
US $24.50 |
||
|
38
|
38
293800005 Loctite 271 *loctite-271 |
293800005 |
US $31.18 |
||
|
39
|
39
207382560 Screw-hex.cap din.933a2 s.grip |
207382560 |
US $31.10 |
||
|
40
|
40
271001141
Plaque promenad*plate-riding
|
271001141 |
— | ||
| replacement | |||||
|
40
|
40
271001453 Plaque promenad*plate-riding |
271001453 |
US $258.01 |
||
|
41
|
41
293800013 Scellant tuyau *sealant-pipe |
293800013 |
US $106.05 |
||
|
42
|
42
293200003 Joint etanche *seal-tray |
293200003 |
US $37.20 |
||
|
43
|
43
293900007 Douille venturi*bushing-ventur |
293900007 |
US $13.32 |
||
|
44
|
44
271001107
Glissoir *slider
|
271001107 |
— | ||
|
45
|
45
293800066 Scellant 5900 *sealant-5900 |
293800066 |
US $65.25 |
||
|
46
|
46
232001600 Nut-hexagonal din.934a2 |
232001600 |
US $10.65 |
||
|
47
|
47
271001084
Support pompe *support-pump
|
271001084 |
— | ||
|
48
|
48
272000053 Cale epaisseur *shim |
272000053 |
US $54.75 |
||
|
49
|
49
250300010
Goujon carre *stud-square
|
250300010 |
— | ||
| replacement | |||||
|
49
|
49
250300022 Goujon carre *stud-square |
250300022 |
US $21.42 |
||
|
50
|
50
234081600 Washer-flat din.125a-a2 |
234081600 |
US $7.10 |
||
|
51
|
51
234101601 Washer-lock helical din.127b-a2 |
234101601 |
US $7.40 |
||
|
52
|
52
278001595
Capteur vitesse*sensor-speed
Includes 52 - 56.; |
278001595 |
— | ||
|
53
|
53
278000222 Cosse male *terminal-male |
278000222 |
US $21.15 |
||
|
54
|
54
278000218 Joint de fil *seal-wire |
278000218 |
US $58.70 |
||
|
55
|
55
293710031 Raccord elect. *connect-elect. |
293710031 |
US $19.92 |
||
|
56
|
56
295500108
Paddle wheel kit
|
295500108 |
— | ||
| replacement | |||||
|
56
|
56
296000193 Paddle wheel kit |
296000193 |
US $74.41 |
||
|
57
|
57
293550004 Graisse dielect*grease-dielect dc4 |
293550004 |
US $59.94 |
||
|
58
|
58
250000020
Screw-ctsk.ov.hd.ph.din.966a-a2
|
250000020 |
— | ||
|
59
|
59
278000281 Bloc 3 circ.fem*housing-tab |
278000281 |
US $54.25 |
||
|
60
|
60
234061600 Washer-flat din.125a-a2 |
234061600 |
US $10.25 |
||
|
61
|
61
211000127 Screw-socket din.912a2 s.grip |
211000127 |
US $26 |
||
|
62
|
62
271001124
Poussoir ass. *pusher-ass y
|
271001124 |
— | ||
|
63
|
63
271001108 Ressort *spring |
271001108 |
US $40.65 |
||
|
64
|
64
234002600 Washer-flat din.9021b-a2 |
234002600 |
US $14.35 |
||
|
65
|
65
207161660 Screw-hex.cap din.933a2 |
207161660 |
US $9.50 |
||
|
66
|
66
234002600 Washer-flat din.9021b-a2 |
234002600 |
US $14.35 |
||
|
67
|
67
250000040 Screw-plastite hexagonale #10x3/8 |
250000040 |
US $13.30 |
||
|
68
|
68
234051600 Washer-flat din.125a-a2 |
234051600 |
US $10 |
||
