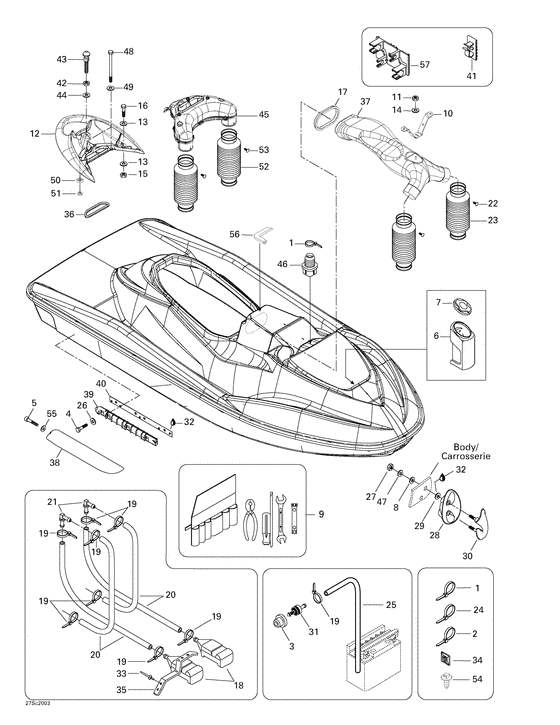

09- body Diagram Bombardier RX
- Year
- 2000
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
292000617 Stabilisat.ga. *sponson-lh. |
292000617 |
US $106.05 |
||
|
|
293450203
Ajout stab. *insert-stab.
|
293450203 |
— | ||
|
|
292000624
Base stab.ga. *base-stab.lh.
|
292000624 |
— | ||
|
1
|
1
414115200 Tie-rap 180 mm |
414115200 |
US $7 |
||
|
2
|
2
293750008 Tie rap 350mm *tie-rap 350mm |
293750008 |
US $13.40 |
||
|
3
|
3
293720029 Passe-fils *grommet |
293720029 |
US $9.25 |
||
|
4
|
4
207363060 Screw-hex.cap din.933a2 s.grip |
207363060 |
US $58.30 |
||
|
5
|
5
205565060 Screw-socket din.912a2 s.grip |
205565060 |
US $1.96 |
||
|
6
|
6
269500606 Boitier extinct*housing-exting |
269500606 |
US $29.38 |
||
|
7
|
7
269500603
Cap extincteur *cap-extinguish
|
269500603 |
— | ||
|
8
|
8
293830037 Rondelle caout.*washer-rubber |
293830037 |
US $20.65 |
||
|
9
|
9
295500783
Trousse outil *kit-tool owner
|
295500783 |
— | ||
| replacement | |||||
|
9
|
9
294000743
Trousse outil *kit-tool owner
|
294000743 |
— | ||
|
10
|
10
291001439
Support collec.*collector-supp.
|
291001439 |
— | ||
|
11
|
11
232561600 Nut-stop elastic din.985-a2 |
232561600 |
US $7.40 |
||
|
12
|
12
269000577
Poignee arriere*handle-grab
|
269000577 |
— | ||
|
13
|
13
234081600 Washer-flat din.125a-a2 |
234081600 |
US $7.10 |
||
|
14
|
14
234062600 Washer-flat din.9021b-a2 |
234062600 |
US $10 |
||
|
15
|
15
232581650
Nut-stop elastic din.985a2 wax/lube
|
232581650 |
— | ||
|
16
|
16
207084560 Screw-hex.cap din.931a2 |
207084560 |
US $21.75 |
||
|
17
|
17
291001424
Joint collect. *joint-collect.
|
291001424 |
— | ||
|
18
|
18
292000688
Tamis declenche*screen-bailer
|
292000688 |
— | ||
|
19
|
19
293750001 Tie rap 94mm *tie-rap 94mm |
293750001 |
US $66.50 |
||
|
20
|
20
275000007
Boyau 8mm. *hose-8mm.
|
275000007 |
— | ||
|
21
|
21
293710057 Raccord coude90*fitting-elbow |
293710057 |
US $7.09 |
||
|
22
|
22
293730024 Dard fastex *dart-fastex |
293730024 |
US $8.95 |
||
|
23
|
23
291001486
Boyau ventilat.*hose-vent
|
291001486 |
— | ||
| replacement | |||||
|
23
|
23
291001777
Boyau ventilat.*hose-vent
|
291001777 |
— | ||
|
24
|
24
293750002 Tie rap 142mm *tie-rap 142mm |
293750002 |
US $15.50 |
||
|
25
|
25
275500446 Boyau 6mm. *hose-6mm. |
275500446 |
US $21.72 |
||
|
26
|
26
234061600 Washer-flat din.125a-a2 |
234061600 |
US $10.25 |
||
|
27
|
27
232581650
Nut-stop elastic din.985a2 wax/lube
|
232581650 |
— | ||
|
28
|
28
292000453
Coquille noire *shell-black
|
292000453 |
— | ||
|
29
|
29
234081600 Washer-flat din.125a-a2 |
234081600 |
US $7.10 |
||
|
30
|
30
292000708
Amarre noire *bow-eye black
|
292000708 |
— | ||
|
31
|
31
275500167
Soupape retenue*valve-check
|
275500167 |
— | ||
| replacement | |||||
|
31
|
31
275500499 Soupape retenue*valve-check |
275500499 |
US $17.82 |
||
|
32
|
32
293800033
Scell.silicone *seal-silicone
|
293800033 |
— | ||
| replacement | |||||
|
32
|
32
293800086
Scell.silicone *seal-silicone
|
293800086 |
— | ||
|
33
|
33
293150037 Rivet avdel *rivet-avdel 3/16 |
293150037 |
US $7.30 |
||
|
34
|
34
293750015 Ancrage tie rap*mount-tie rap |
293750015 |
US $15.05 |
||
|
35
|
35
292000398 Pince ress.ga. *clip-spring lh |
292000398 |
US $13.21 |
||
|
36
|
36
293200059
Anneau etanche *baffle seal
|
293200059 |
— | ||
|
37
|
37
291001427
Collecteur av. *collector-fr.
|
291001427 |
— | ||
| replacement | |||||
|
37
|
37
291001629
Collecteur av. *collector-fr.
|
291001629 |
— | ||
|
38
|
38
292000616
Stabilisat.dr. *sponson-rh.
|
292000616 |
— | ||
|
39
|
39
292000627
Base stab.droit*base-stab.rh.
|
292000627 |
— | ||
|
40
|
40
293450201
Ajout stab. *insert-stab.
|
293450201 |
— | ||
|
41
|
41
293750005 Attache collier*tie-clamp |
293750005 |
US $38.85 |
||
|
42
|
42
232100600 Nut-jam hexagonal din.439b-a2 |
232100600 |
US $14.35 |
||
|
43
|
43
291000691 Ergot de siege *stud-seat |
291000691 |
US $44.83 |
||
|
44
|
44
234002600 Washer-flat din.9021b-a2 |
234002600 |
US $14.35 |
||
|
45
|
45
291001417
Chicane vent. *tube-vent assy
|
291001417 |
— | ||
| replacements | |||||
|
45
|
45
291001873
Chicane vent. *vent tube ass y
|
291001873 |
— | ||
|
45
|
45
269000812 Poignee *grag handle |
269000812 |
US $93.81 |
||
|
46
|
46
293720042 Passe-fils *grommet |
293720042 |
US $66.25 |
||
|
47
|
47
250200011 Washer-flat stlss. m8 |
250200011 |
US $4.85 |
||
|
48
|
48
230262060
Screw-hex.cap s.grip din.931a2
|
230262060 |
— | ||
|
49
|
49
234062600 Washer-flat din.9021b-a2 |
234062600 |
US $10 |
||
|
50
|
50
271000598 Logement ecrou *housing-nutIncludes 50 - 51.; |
271000598 |
US $14.67 |
||
|
51
|
51
232501600 Nut-stop elastic din.985a2 |
232501600 |
US $10.65 |
||
|
52
|
52
291001486
Boyau ventilat.*hose-vent
|
291001486 |
— | ||
| replacement | |||||
|
52
|
52
291001777
Boyau ventilat.*hose-vent
|
291001777 |
— | ||
|
53
|
53
293730024 Dard fastex *dart-fastex |
293730024 |
US $8.95 |
||
|
54
|
54
293730018 Dard d ancrage *dart-mount |
293730018 |
US $4.95 |
||
|
55
|
55
234061600 Washer-flat din.125a-a2 |
234061600 |
US $10.25 |
||
|
56
|
56
293200017 Anneau neoprene*neoprene seal |
293200017 |
US $5.83 |
||
| replacement | |||||
|
56
|
56
293200093 Anneau neoprene*neoprene seal |
293200093 |
US $183.44 |
||
|
57
|
57
291001399
Attache collier*tie-clamp
|
291001399 |
— | ||
