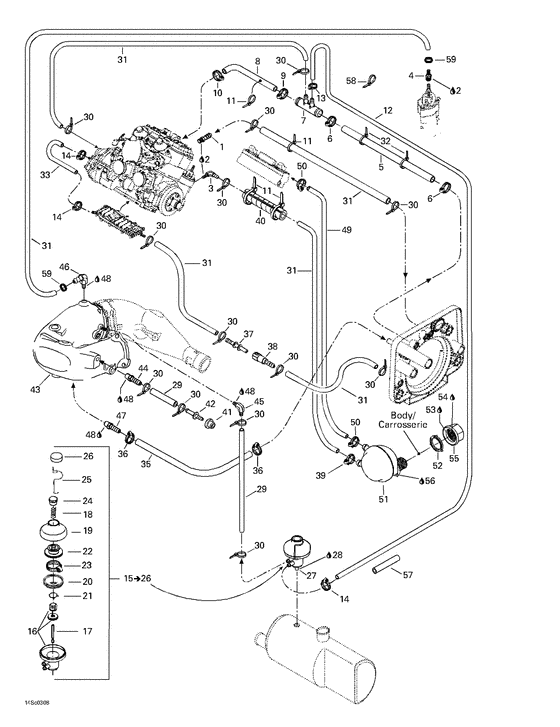

01- cooling system Diagram Bombardier RX
- Year
- 2003
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
293710066 Raccord male *connector-male |
293710066 |
US $17.29 |
||
|
2
|
2
293800013 Scellant tuyau *sealant-pipe |
293800013 |
US $106.05 |
||
|
3
|
3
293700016
Raccord coude90*fitting-elbow
|
293700016 |
— | ||
|
4
|
4
293710082 Raccord droit *fitting-straight |
293710082 |
US $8.13 |
||
|
5
|
5
276000099 Boyau 19.0mm. *hose-19.0mm. |
276000099 |
US $45.70 |
||
|
6
|
6
293650051 Bride serrage *clamp-tridon |
293650051 |
US $28.55 |
||
|
7
|
7
293710102
Raccord double *double fitting
|
293710102 |
— | ||
| replacement | |||||
|
7
|
7
204300182
Raccord double*t-fitting/double
|
204300182 |
— | ||
|
8
|
8
276000098 Boyau forme *hose-formed |
276000098 |
US $22.39 |
||
|
9
|
9
293650051 Bride serrage *clamp-tridon |
293650051 |
US $28.55 |
||
|
10
|
10
293650019 Bride serrage *clamp-tridon |
293650019 |
US $37.65 |
||
|
11
|
11
293750002 Tie rap 142mm *tie-rap 142mm |
293750002 |
US $15.50 |
||
|
12
|
12
275500548 Boyau 5/16 *hose-5/16 |
275500548 |
US $110.10 |
||
|
13
|
13
293650053 Bride serrage *clamp-oetiker |
293650053 |
US $20.40 |
||
|
14
|
14
293650129 Bride serrage *hose clamp |
293650129 |
US $1.96 |
||
| replacement | |||||
|
14
|
14
293650171 Bride serrage *hose clamp |
293650171 |
US $20.50 |
||
|
15
|
15
274000898 Regulateur pres*reg-pressionIncludes 15 - 26.; |
274000898 |
US $316.17 |
||
|
17
|
17
274000423 Tige de debit *rod-feeding |
274000423 |
US $50.97 |
||
|
18
|
18
274000382
Ressort 44mm *spring-44mm
|
274000382 |
— | ||
|
19
|
19
420911552 Couvercle soup.*cover-valve |
420911552 |
US $42.87 |
||
|
20
|
20
420260721 Manchon *bellows |
420260721 |
US $57.51 |
||
|
21
|
21
420838190 Bride *clamp |
420838190 |
US $29.15 |
||
|
23
|
23
293650065 Bride serrage *clamp |
293650065 |
US $35.34 |
||
|
24
|
24
420241221 Vis ajustement *screw-adjuster |
420241221 |
US $12.19 |
||
|
25
|
25
290838083
Pince a ressort*clip-spring
|
290838083 |
— | ||
| replacement | |||||
|
25
|
25
420838083 Pince a ressort*clip-spring |
420838083 |
US $17.74 |
||
|
26
|
26
274000903
Couvercle vis *screw-cover
|
274000903 |
— | ||
|
27
|
27
293700033 Raccord male *connector-male |
293700033 |
US $16.29 |
||
|
28
|
28
293800013 Scellant tuyau *sealant-pipe |
293800013 |
US $106.05 |
||
|
29
|
29
276000048 Boyau 6mm. *hose-6mm. |
276000048 |
US $121.95 |
||
|
30
|
30
293750001 Tie rap 94mm *tie-rap 94mm |
293750001 |
US $66.50 |
||
|
31
|
31
275000007
Boyau 8mm. *hose-8mm.
|
275000007 |
— | ||
|
32
|
32
293750008 Tie rap 350mm *tie-rap 350mm |
293750008 |
US $13.40 |
||
|
33
|
33
275500567
Boyau forme *formed hose
|
275500567 |
— | ||
|
34
|
34
293650129 Bride serrage *hose clamp |
293650129 |
US $1.96 |
||
| replacement | |||||
|
34
|
34
293650171 Bride serrage *hose clamp |
293650171 |
US $20.50 |
||
|
35
|
35
276000001
Boyau 12.5mm. *hose-12.5mm.
|
276000001 |
— | ||
| replacement | |||||
|
35
|
35
296000303
BOYAU 12.5MM. *HOSE 12.5MM.
|
296000303 |
— | ||
|
36
|
36
293650130
Bride serrage*hose clamp
|
293650130 |
— | ||
| replacement | |||||
|
36
|
36
293650172 Bride serrage *hose clamp |
293650172 |
US $20.50 |
||
|
37
|
37
275500435
Raccord rapide *fitting-quick
|
275500435 |
— | ||
|
38
|
38
275500436 Raccord rapide *fitting-quick |
275500436 |
US $13.21 |
||
|
39
|
39
293650128
Bride serrage *hose clamp
|
293650128 |
— | ||
| replacement | |||||
|
39
|
39
293650170 Bride serrage *hose clamp |
293650170 |
US $27.20 |
||
|
40
|
40
415079900 Gaine *protector tube |
415079900 |
US $2.67 |
||
|
41
|
41
293720029 Passe-fils *grommet |
293720029 |
US $9.25 |
||
|
42
|
42
293710039 Raccord droit *fitting-straig |
293710039 |
US $9.89 |
||
|
43
|
43
274000927
Tuyau collect. *pipe-head
|
274000927 |
— | ||
| replacement | |||||
|
43
|
43
274001107
Tuyau collect. *pipe-head
|
274001107 |
— | ||
|
44
|
44
293710037 Raccord male *connector-male |
293710037 |
US $10.17 |
||
|
45
|
45
293710048
Raccord coude90*fitting-elbow
|
293710048 |
— | ||
|
46
|
46
293700016
Raccord coude90*fitting-elbow
|
293700016 |
— | ||
|
47
|
47
293710021 Raccord male *connector-male |
293710021 |
US $13.21 |
||
|
48
|
48
293800013 Scellant tuyau *sealant-pipe |
293800013 |
US $106.05 |
||
|
49
|
49
276000084 Boyau 8mm. *hose-8mm. |
276000084 |
US $61.11 |
||
|
50
|
50
293650128
Bride serrage *hose clamp
|
293650128 |
— | ||
| replacement | |||||
|
50
|
50
293650170 Bride serrage *hose clamp |
293650170 |
US $27.20 |
||
|
51
|
51
270000569
Reducteur bruit*noise reducer
|
270000569 |
— | ||
|
52
|
52
293830027 Rondelle etanc.*washer-seal |
293830027 |
US $2.52 |
||
|
53
|
53
293800041 Appret loctite *primer-loctite |
293800041 |
US $47.91 |
||
|
54
|
54
293800060 Loctite 243 *loctite-243 |
293800060 |
US $31.18 |
||
|
55
|
55
211100020 Nut-special m27 |
211100020 |
US $39.60 |
||
|
56
|
56
293800086
Scell.silicone *seal-silicone
|
293800086 |
— | ||
|
57
|
57
415080000
Gaine *protector tube
|
415080000 |
— | ||
|
58
|
58
414115200 Tie-rap 180 mm |
414115200 |
US $7 |
||
|
59
|
59
293650042 Bride serrage *clamp-oetiker |
293650042 |
US $20.50 |
||
