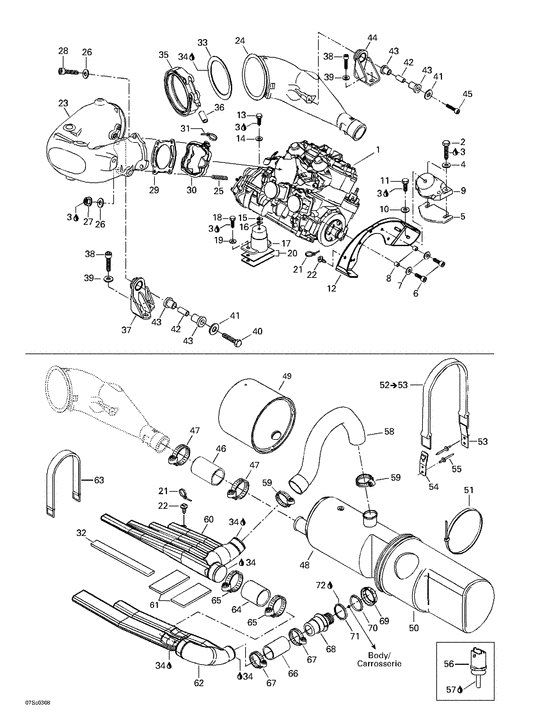

01- engine support and muffler Diagram Bombardier RX
- Year
- 2003
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
270000123 Cale epaisseur *shim-1.3mm. |
270000123 |
US $58.30 |
||
|
1
|
1
270000536
Moteur rotax 947 di (argent)
|
270000536 |
— | ||
|
2
|
2
207184060 Screw-hex.cap din.933a2 |
207184060 |
US $14.35 |
||
|
3
|
3
293800060 Loctite 243 *loctite-243 |
293800060 |
US $31.18 |
||
|
4
|
4
234081600 Washer-flat din.125a-a2 |
234081600 |
US $7.10 |
||
|
5
|
5
270000122 Cale epaisseur *shim-0.3mm |
270000122 |
US $55.85 |
||
|
6
|
6
205582560 Screw-socket din.912a2 s.grip |
205582560 |
US $14.35 |
||
|
7
|
7
234081600 Washer-flat din.125a-a2 |
234081600 |
US $7.10 |
||
|
8
|
8
270000453 Douille *bushing |
270000453 |
US $12.58 |
||
|
9
|
9
270000421
Tampon ancrage *mount-rubber
|
270000421 |
— | ||
|
10
|
10
234082600 Washer-flat din.9021b-a2 |
234082600 |
US $31.10 |
||
|
11
|
11
207181660 Screw-hex.cap din.933a2 |
207181660 |
US $10.65 |
||
|
12
|
12
270000515
Support moteur *support-engine
|
270000515 |
— | ||
|
13
|
13
207182060 Screw-hex.cap din.933a2 |
207182060 |
US $9.80 |
||
|
14
|
14
234082600 Washer-flat din.9021b-a2 |
234082600 |
US $31.10 |
||
|
15
|
15
270000025 Cale epaisseur *shim-1.3mm |
270000025 |
US $35.45 |
||
|
16
|
16
270000024 Cale epaisseur *shim-0.4mm |
270000024 |
US $70.90 |
||
|
17
|
17
270000422
Tampon ancrage *mount-rubber
|
270000422 |
— | ||
|
18
|
18
207184060 Screw-hex.cap din.933a2 |
207184060 |
US $14.35 |
||
|
19
|
19
234081600 Washer-flat din.125a-a2 |
234081600 |
US $7.10 |
||
|
20
|
20
270000122 Cale epaisseur *shim-0.3mm |
270000122 |
US $55.85 |
||
|
21
|
21
414115200 Tie-rap 180 mm |
414115200 |
US $7 |
||
|
22
|
22
293730018 Dard d ancrage *dart-mount |
293730018 |
US $4.95 |
||
|
23
|
23
274000927
Tuyau collect. *pipe-head
|
274000927 |
— | ||
| replacement | |||||
|
23
|
23
274001107
Tuyau collect. *pipe-head
|
274001107 |
— | ||
|
24
|
24
274000871 Cone echapp. *cone-exhaust |
274000871 |
US $391.66 |
||
|
25
|
25
250300008
Goujon m10x55 *stud-m10x55
|
250300008 |
— | ||
|
26
|
26
211200051 Rondelle *washer-flat |
211200051 |
US $21.60 |
||
|
27
|
27
233101600 Nut-flange hexagonal din.6923-a2 |
233101600 |
US $34.25 |
||
|
28
|
28
244003560 Screw-socket din.912a2 s.grip |
244003560 |
US $16.75 |
||
|
29
|
29
420931990 Joint etanche *gasket |
420931990 |
US $14.25 |
||
|
30
|
30
274000862
Env.recuper. *env-pick up
|
274000862 |
— | ||
|
31
|
31
293750002 Tie rap 142mm *tie-rap 142mm |
293750002 |
US $15.50 |
||
|
32
|
32
274000785
Tampon caout. *pad-rubber
|
274000785 |
— | ||
|
33
|
33
274000511 Bague etanche *sealing ring |
274000511 |
US $31.59 |
||
|
34
|
34
293800090 Enduit etanche *sealant |
293800090 |
US $31.18 |
||
|
35
|
35
274000510 Bride serrage *clamp-exhaust |
274000510 |
US $85.65 |
||
|
36
|
36
275000007
Boyau 8mm. *hose-8mm.
|
275000007 |
— | ||
|
37
|
37
274000890
Supp.tuyau *supp-pipe
|
274000890 |
— | ||
| replacement | |||||
|
37
|
37
274001109
Supp.tuyau *supp-pipe
|
274001109 |
— | ||
|
38
|
38
244083060 Screw-socket din.912a2 s.grip |
244083060 |
US $14.20 |
||
|
39
|
39
250200012 Washer-flat m8.4 |
250200012 |
US $7 |
||
|
40
|
40
245004060 Screw-hex.cap-din.931a2 s.grip |
245004060 |
US $28 |
||
|
41
|
41
234002600 Washer-flat din.9021b-a2 |
234002600 |
US $14.35 |
||
|
42
|
42
274000861 Douille *bushing |
274000861 |
US $13.21 |
||
|
43
|
43
293830065
Douille caout. *bushing-rubber
|
293830065 |
— | ||
|
44
|
44
274000777
Support tuyau *support-pipe
|
274000777 |
— | ||
| replacement | |||||
|
44
|
44
274001110 Support tuyau *support-pipe |
274001110 |
US $73.41 |
||
|
45
|
45
244004060 Screw-socket din.912a2 s.grip |
244004060 |
US $6.27 |
||
|
46
|
46
274000896 Boyau raccord *hose-exhaust |
274000896 |
US $102.99 |
||
|
47
|
47
293650064 Bride serrage *clamp-tridon |
293650064 |
US $10.47 |
||
|
48
|
48
274000826
Silenc.echapp. *muffler
|
274000826 |
— | ||
|
49
|
49
274000796 Couvre silenc. *cover-muffler |
274000796 |
US $110.13 |
||
|
50
|
50
274000799
Couvre silenc. *cover-muffler
|
274000799 |
— | ||
|
51
|
51
293750020 Tie rap 838mm *tie-rap 838mm |
293750020 |
US $4.32 |
||
|
52
|
52
293850026
Sangle res.ess.*strap-fuel tank
Includes 52 - 53.; |
293850026 |
— | ||
| replacement | |||||
|
52
|
52
293850082
Sangle ass`e *strap ass`y
Includes 52 - 53.; |
293850082 |
— | ||
|
53
|
53
293850024 Pince courroie *clip-strap |
293850024 |
US $157.30 |
||
|
54
|
54
293850024 Pince courroie *clip-strap |
293850024 |
US $157.30 |
||
|
55
|
55
293150037 Rivet avdel *rivet-avdel 3/16 |
293150037 |
US $7.30 |
||
|
56
|
56
278001016
Capteur temp. *sensor-liquid
|
278001016 |
— | ||
| replacement | |||||
|
56
|
56
278002895 TEMPERATURE SENSOR |
278002895 |
US $46.78 |
||
|
57
|
57
293800038 Loctite 518 *loctite-518 |
293800038 |
US $51.97 |
||
|
58
|
58
274000834
Boyau echapp. *hose-exhaust
|
274000834 |
— | ||
|
59
|
59
293650107
Bride serrage *clamp-tridon
|
293650107 |
— | ||
|
60
|
60
274000700 Resonateur ga. *resonator-lh. |
274000700 |
US $145.83 |
||
|
61
|
61
274000752 3.mpon *pad |
274000752 |
US $13.21 |
||
|
62
|
62
274000701 Resonnateur ga.*resonator-lh. |
274000701 |
US $145.83 |
||
|
63
|
63
293850021
Sangle retenue *strap-rubber
|
293850021 |
— | ||
| replacement | |||||
|
63
|
63
293850077
Sangle retenue *strap-rubber
|
293850077 |
— | ||
|
64
|
64
274000726 Boyau raccord *hose-exhaust |
274000726 |
US $30.57 |
||
|
65
|
65
204000079 Bride serrage *clamp-tridon |
204000079 |
US $10.52 |
||
|
66
|
66
274000616
Boyau raccord *hose-exhaust
|
274000616 |
— | ||
|
67
|
67
293650064 Bride serrage *clamp-tridon |
293650064 |
US $10.47 |
||
|
68
|
68
274000843
Sortie echapp. *outlet-exhaust
|
274000843 |
— | ||
|
69
|
69
274000224 Ecrou 72mm *nut-72mm |
274000224 |
US $16.61 |
||
|
70
|
70
274000225 Rondelle stab. *washer-stabilizing |
274000225 |
US $9.13 |
||
|
71
|
71
293250041 Joint etanche *gasket |
293250041 |
US $55.85 |
||
|
72
|
72
293800086
Scell.silicone *seal-silicone
|
293800086 |
— | ||
