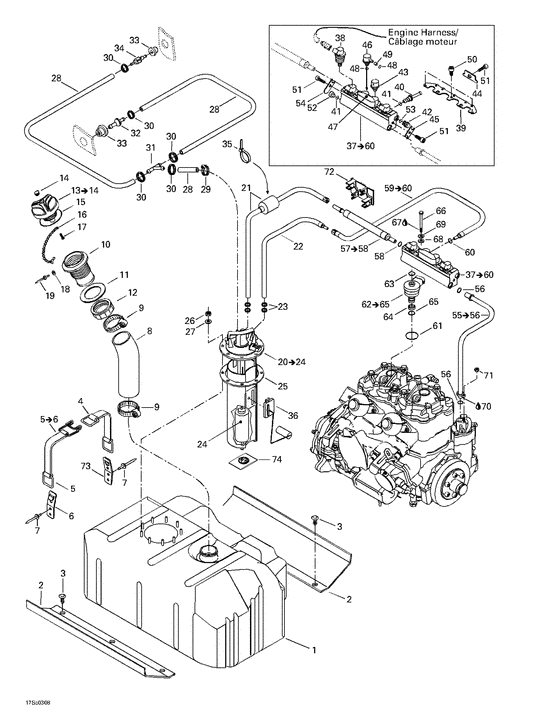

02- fuel system Diagram Bombardier RX
- Year
- 2003
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
275500427
Reservoir ess. *tank-fuel
|
275500427 |
— | ||
|
2
|
2
293830077
Tampon caout. *pad-rubber
|
293830077 |
— | ||
|
3
|
3
293730006 Dard noir *dart-black |
293730006 |
US $6.70 |
||
|
4
|
4
293850036 Sangle res.ess.*strap-fuel tank |
293850036 |
US $18.22 |
||
|
5
|
5
293850037 Sangle res.ess.*strap-fuel tankIncludes 5 - 6.; |
293850037 |
US $17.29 |
||
|
5
|
5
293850038
Sangle res.ess.*strap-tank fue
|
293850038 |
— | ||
| replacement | |||||
|
5
|
5
293850094 FUEL TANK STRAP |
293850094 |
US $24.34 |
||
|
6
|
6
293850024 Pince courroie *clip-strap |
293850024 |
US $157.30 |
||
|
7
|
7
293150037 Rivet avdel *rivet-avdel 3/16 |
293150037 |
US $7.30 |
||
|
8
|
8
275500434
Boyau remplis. *hose-fil.neck
|
275500434 |
— | ||
|
9
|
9
293650023 Bride serrage *clamp-tridon |
293650023 |
US $70.70 |
||
|
10
|
10
275500231 Goulot remplis.*neck-filler |
275500231 |
US $12.68 |
||
|
11
|
11
293250029 Joint etanche *gasket |
293250029 |
US $16.13 |
||
|
12
|
12
211100012 Nut-neck filler fuel |
211100012 |
US $14.14 |
||
|
13
|
13
275500430 Bouchon ess.sub*cap-fuel sub.Includes 13 - 14.; |
275500430 |
US $30.19 |
||
|
14
|
14
293000034 Capuchon press.*cap-snap black |
293000034 |
US $50.05 |
||
|
15
|
15
293250075
Joint etanche *gasket
|
293250075 |
— | ||
|
16
|
16
275500518 Chaine bouchon *chain-cap fuel |
275500518 |
US $14.67 |
||
|
17
|
17
241140060 Screw-pt.hex.flange k40 x 10 |
241140060 |
US $9.60 |
||
|
18
|
18
234032600 Washer-flat din.9021b-a2 |
234032600 |
US $7.10 |
||
|
19
|
19
390407900 Rivet-pop 1/8 *rivet-pop 1/8 |
390407900 |
US $96 |
||
|
20
|
20
275500540
Module essence *module-fuel ass y
Includes 20 - 24.; |
275500540 |
— | ||
| replacement | |||||
|
20
|
20
275500641 Module essence *module-fuel ass yIncludes 20 - 24.; |
275500641 |
US $1,242.34 |
||
|
21
|
21
275500559
Boyau assemble *hose-ass y
|
275500559 |
— | ||
| replacements | |||||
|
21
|
21
293650011 Bride serrage *clamp-oetiker |
293650011 |
US $20.50 |
||
|
21
|
21
275500642
Boyau assemble *hose-ass y
|
275500642 |
— | ||
|
23
|
23
293650140 Bride serrage *clamp-oetiker |
293650140 |
US $3.57 |
||
|
25
|
25
293250088 Joint etanche *gasket |
293250088 |
US $14.64 |
||
|
26
|
26
232551200 Nut-stop elastic din.985 |
232551200 |
US $19 |
||
|
27
|
27
234052400 Washer-flat din.7349 |
234052400 |
US $91.75 |
||
|
28
|
28
275500549 Boyau 1/4 *hose-1/4 |
275500549 |
US $190.60 |
||
|
29
|
29
293650128
Bride serrage *hose clamp
|
293650128 |
— | ||
| replacement | |||||
|
29
|
29
293650170 Bride serrage *hose clamp |
293650170 |
US $27.20 |
||
|
30
|
30
293650050
Bride serrage *clamp-clic
|
293650050 |
— | ||
|
31
|
31
293710059 Raccord en y *y-connector |
293710059 |
US $10.97 |
||
|
32
|
32
275500398 Soupape retenue*valve-check |
275500398 |
from US $12.38 |
||
|
33
|
33
293720029 Passe-fils *grommet |
293720029 |
US $9.25 |
||
|
34
|
34
275500505 Soupape retenue*valve-check |
275500505 |
US $27.56 |
||
|
35
|
35
293750008 Tie rap 350mm *tie-rap 350mm |
293750008 |
US $13.40 |
||
|
36
|
36
270600012
Levier capteur *level-sensor
|
270600012 |
— | ||
|
37
|
37
275500613
Distributeur *distributor-fuel
Includes 37 - 60.; |
275500613 |
— | ||
|
38
|
38
275500460 Injecteur ess. *injector-fuel |
275500460 |
US $353.89 |
||
|
39
|
39
275500543 Plaque retenue *plate-retainner |
275500543 |
US $43.81 |
||
|
40
|
40
275500538 Raccord retour *adapter-air |
275500538 |
US $87.67 |
||
|
41
|
41
293300069 Joint torique *o-ring |
293300069 |
US $16.26 |
||
|
42
|
42
275500595 Bouchon *fuel plug |
275500595 |
US $24.45 |
||
|
43
|
43
275500463
Regulateur air *regulator-air
|
275500463 |
— | ||
|
44
|
44
275500456 Plaque retenue *plate-retainner |
275500456 |
US $48.93 |
||
|
45
|
45
275500596 Plaque retenue *retainer plate |
275500596 |
US $21.39 |
||
|
46
|
46
275500464
Regulateur ess.*regulator-fuel
|
275500464 |
— | ||
|
47
|
47
275500449
Couvercle *cover
|
275500449 |
— | ||
|
48
|
48
293300072 Joint torique *o-ring |
293300072 |
US $16.76 |
||
|
49
|
49
275500465 Entretoise *spacer |
275500465 |
US $25.45 |
||
|
50
|
50
205051260
Screw-socket hd.din.912a2
|
205051260 |
— | ||
|
51
|
51
205061260 Screw-socket hd.din.912a2 |
205061260 |
US $20.10 |
||
|
52
|
52
275500597 Bouchon *air plug |
275500597 |
US $22.02 |
||
|
53
|
53
275500598 Joint torique *o-ring |
275500598 |
US $14.25 |
||
|
54
|
54
275500455 Plaque retenue *plate-retainner |
275500455 |
US $50.97 |
||
|
55
|
55
270600022
Boyau pression *hose-pressure
Includes 55 - 56.; |
270600022 |
— | ||
|
56
|
56
293300070 Joint torique *o-ring |
293300070 |
US $16.76 |
||
|
57
|
57
275500511
Boyau assemble *hose-ass y
Includes 57 - 58.; |
275500511 |
— | ||
|
58
|
58
293300069 Joint torique *o-ring |
293300069 |
US $16.26 |
||
|
59
|
59
275500519
Boyau assemble *hose-ass y
Includes 59 - 60.; |
275500519 |
— | ||
|
60
|
60
293300070 Joint torique *o-ring |
293300070 |
US $16.76 |
||
|
61
|
61
293300083 Joint torique *o-ring |
293300083 |
US $8.13 |
||
|
62
|
62
275500545
Injecteur d air*injector-air
Includes 62 - 65.; |
275500545 |
— | ||
| replacement | |||||
|
62
|
62
275500633 Injecteur d air*injector-airIncludes 62 - 65.; |
275500633 |
US $260.07 |
||
|
63
|
63
293300084
Joint torique *o-ring
|
293300084 |
— | ||
|
64
|
64
270600030 Bague injecteur*injector ring |
270600030 |
US $20.37 |
||
|
65
|
65
293300076
Joint torique *o-ring
|
293300076 |
— | ||
|
66
|
66
207087060 Screw-hex.cap din.931a2 |
207087060 |
US $14.20 |
||
|
67
|
67
293800060 Loctite 243 *loctite-243 |
293800060 |
US $31.18 |
||
|
68
|
68
234081600 Washer-flat din.125a-a2 |
234081600 |
US $7.10 |
||
|
69
|
69
234181601 Washer-lock helical din.127b-a2 |
234181601 |
US $7.10 |
||
|
70
|
70
293800070 Loct.anti grip.*loct-antiseize |
293800070 |
US $40.78 |
||
|
71
|
71
232561600 Nut-stop elastic din.985-a2 |
232561600 |
US $7.40 |
||
|
72
|
72
291001399
Attache collier*tie-clamp
|
291001399 |
— | ||
|
73
|
73
293850024 Pince courroie *clip-strap |
293850024 |
US $157.30 |
||
|
74
|
74
219700368 Filtreur bosch *bosch filter |
219700368 |
from US $43.86 |
||
