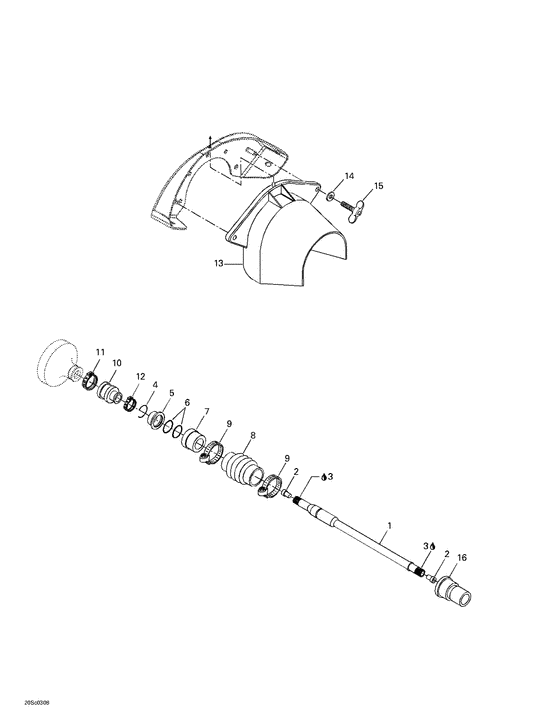

05- drive system Diagram Bombardier RX
- Year
- 2003
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
272000151 Arbre transm. *shaft-drive |
272000151 |
US $292.71 |
||
|
2
|
2
272000019 Bouchon *plug |
272000019 |
US $40.65 |
||
|
3
|
3
293550010 Graisse synth. *grease-synth. |
293550010 |
US $33.61 |
||
|
4
|
4
272000135 Pince en "c" *clip "c |
272000135 |
US $91.30 |
||
|
5
|
5
272000064 Bague supp.flot*support ring |
272000064 |
US $73.12 |
||
|
6
|
6
293300032 Joint torique *o-ring |
293300032 |
US $39 |
||
|
7
|
7
272000770 Bague carbone *carbon ring |
272000770 |
US $51.66 |
||
|
8
|
8
272000184
Soufflet *bellow
|
272000184 |
— | ||
|
9
|
9
293650075 Bride serrage *clamp-norma |
293650075 |
US $55.10 |
||
|
10
|
10
272000001
Enveloppe caout*boot-rubber
|
272000001 |
— | ||
|
11
|
11
293650021 Bride serrage *clamp-oetiker |
293650021 |
US $50.85 |
||
|
12
|
12
293650067 Bride serrage *clamp-oetiker |
293650067 |
US $45.65 |
||
|
13
|
13
272000094 Garde volant *guard-flywheel |
272000094 |
US $35.65 |
||
|
14
|
14
234082600 Washer-flat din.9021b-a2 |
234082600 |
US $31.10 |
||
|
15
|
15
207982510
Screw-wing din.316 pa 6.6
|
207982510 |
— | ||
|
16
|
16
292000075 Passe-coque *hull-thru fitt |
292000075 |
US $84.61 |
