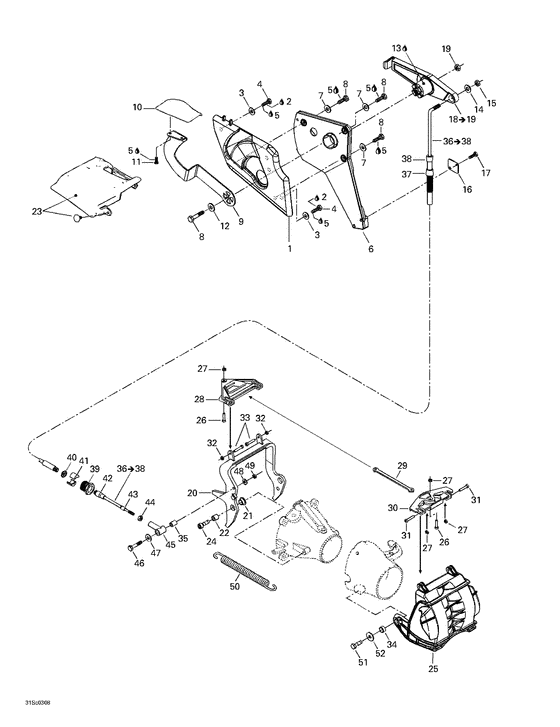

05- reverse Diagram Bombardier RX
- Year
- 2003
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
271000984
Log.man.renv. *housing-handle
|
271000984 |
— | ||
|
2
|
2
293800086
Scell.silicone *seal-silicone
|
293800086 |
— | ||
|
3
|
3
234062600 Washer-flat din.9021b-a2 |
234062600 |
US $10 |
||
|
4
|
4
207161260 Screw-hex.cap din.933a2 |
207161260 |
US $8.15 |
||
|
5
|
5
293800060 Loctite 243 *loctite-243 |
293800060 |
US $31.18 |
||
|
6
|
6
271001358 Support cable *cable-support |
271001358 |
US $26.49 |
||
|
7
|
7
234062600 Washer-flat din.9021b-a2 |
234062600 |
US $10 |
||
|
8
|
8
207161660 Screw-hex.cap din.933a2 |
207161660 |
US $9.50 |
||
|
9
|
9
271001982
Levier de manette
|
271001982 |
— | ||
|
10
|
10
271001983 Manette de renverse |
271001983 |
US $71.16 |
||
|
11
|
11
208451260 Screw-ctsk.fl.hd.ph.din.965a-a2 |
208451260 |
US $9.80 |
||
|
12
|
12
234061600 Washer-flat din.125a-a2 |
234061600 |
US $10.25 |
||
|
13
|
13
293550010 Graisse synth. *grease-synth. |
293550010 |
US $33.61 |
||
|
14
|
14
234051600 Washer-flat din.125a-a2 |
234051600 |
US $10 |
||
|
15
|
15
212000006 Nut-stop elastic ms-17830 |
212000006 |
US $7.25 |
||
|
16
|
16
277001058 Plaque retenue *bracket |
277001058 |
US $8.13 |
||
|
17
|
17
207153060 Screw-hex.cap din.933a2 |
207153060 |
US $12.90 |
||
|
18
|
18
271000986 Levier *leverIncludes 18 - 19.; |
271000986 |
US $44.83 |
||
|
19
|
19
232561600 Nut-stop elastic din.985-a2 |
232561600 |
US $7.40 |
||
|
20
|
20
271001012 Bras noir *arm-black |
271001012 |
US $42.81 |
||
|
21
|
21
271000321 Douil.venturi*bushing-venturi |
271000321 |
US $48.70 |
||
|
22
|
22
271001039 Entretoise *spacer |
271001039 |
US $16.08 |
||
|
23
|
23
291001650
Grille gauche *grill-lh.
|
291001650 |
— | ||
|
24
|
24
250000026 Boulon de pivot*screw-pivot |
250000026 |
US $14 |
||
|
25
|
25
271001317
Vanne renverse *gate-reverse
|
271001317 |
— | ||
| replacements | |||||
|
25
|
25
268000028 Vanne renverse *gate-reverse |
268000028 |
US $198.93 |
||
|
25
|
25
271001039 Entretoise *spacer |
271001039 |
US $16.08 |
||
|
26
|
26
250000018 Boulon de pivot*screw-pivot |
250000018 |
US $19.45 |
||
|
27
|
27
232551600 Nut-stop elastic din.985a2 |
232551600 |
US $7.40 |
||
|
28
|
28
271001017
Triangle *triangle
|
271001017 |
— | ||
| replacement | |||||
|
28
|
28
268000013 Triangle *triangle |
268000013 |
US $12.19 |
||
|
29
|
29
271001018 Barre raccord *rod-connector |
271001018 |
US $12.19 |
||
|
30
|
30
271001312
Pivot raccord *rod-pivot
|
271001312 |
— | ||
|
31
|
31
250000023 Boulon de pivot*screw-pivot |
250000023 |
US $19.45 |
||
|
32
|
32
232551600 Nut-stop elastic din.985a2 |
232551600 |
US $7.40 |
||
|
33
|
33
250000018 Boulon de pivot*screw-pivot |
250000018 |
US $19.45 |
||
|
34
|
34
277001066
Entretoise *spacer
|
277001066 |
— | ||
|
35
|
35
271001020 Entretoise *spacer |
271001020 |
US $12.58 |
||
|
36
|
36
277000848
Cable renverse.*cable-reverse
Includes 36 - 38.; |
277000848 |
— | ||
|
37
|
37
277000473
Embout grand *boot-large
|
277000473 |
— | ||
|
38
|
38
277000466
Embout petit *boot-small
|
277000466 |
— | ||
|
39
|
39
277000784
Barrure cable *lock-cable
|
277000784 |
— | ||
| replacement | |||||
|
39
|
39
277001729 STEERING CABLE LOCK |
277001729 |
from US $14.20 |
||
|
40
|
40
211100009 Rondelle caout.*washer-rubber |
211100009 |
US $14.70 |
||
|
41
|
41
277000055 Demi-bague *half-ring |
277000055 |
US $19.52 |
||
|
42
|
42
277000473
Embout grand *boot-large
|
277000473 |
— | ||
|
43
|
43
277000466
Embout petit *boot-small
|
277000466 |
— | ||
|
44
|
44
212100005 Nut-hexagonal |
212100005 |
US $8.15 |
||
|
45
|
45
277001204 Rotule *joint |
277001204 |
US $19.47 |
||
|
46
|
46
207063560 Screw-hex.cap din.931a2 |
207063560 |
US $14.35 |
||
|
47
|
47
234062600 Washer-flat din.9021b-a2 |
234062600 |
US $10 |
||
|
48
|
48
234061600 Washer-flat din.125a-a2 |
234061600 |
US $10.25 |
||
|
49
|
49
232561600 Nut-stop elastic din.985-a2 |
232561600 |
US $7.40 |
||
|
50
|
50
271001328 Ressort *spring |
271001328 |
US $17.15 |
||
|
51
|
51
207383060 Screw-hex.cap din.933a2 s.grip |
207383060 |
US $24.50 |
||
|
52
|
52
234082600 Washer-flat din.9021b-a2 |
234082600 |
US $31.10 |
||
