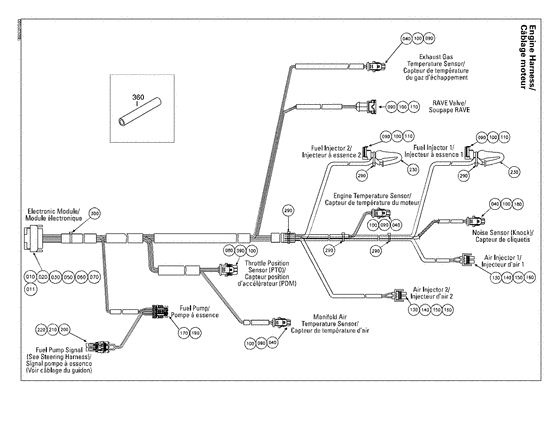

10- engine harness Diagram Bombardier RX
- Year
- 2003
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
515175830 Gaine basse te*gaine low temp.vinyl |
515175830 |
US $40.80 |
||
|
|
293100011
Gaine vinyle *tubing-pvc
|
293100011 |
— | ||
|
|
512059668
Gaine thermo. *shrink tubing
|
512059668 |
— | ||
|
10
|
10
278001748
Cablage moteur *harness-engine
Includes 10 - 360.; |
278001748 |
— | ||
|
10
|
10
278001211 Bloc 26circ.mal*housing-tabIncludes 10 - 11.; |
278001211 |
US $46.89 |
||
|
11
|
11
278001307 Joint de fil *seal-wire |
278001307 |
US $15.27 |
||
|
20
|
20
278000995
Cosse femelle *terminal-femal
|
278000995 |
— | ||
|
30
|
30
278000996 .joint de fil *seal |
278000996 |
US $19.45 |
||
|
40
|
40
278001005 Bloc 2 circ.mal*housing-tab |
278001005 |
US $21.42 |
||
|
50
|
50
409013900 Bouchon *plug |
409013900 |
US $12.19 |
||
|
60
|
60
293000070 Bouchon etanche*cap-sealing |
293000070 |
US $60.70 |
||
|
70
|
70
278000994 Cosse femelle *terminal-femal |
278000994 |
US $15.55 |
||
|
80
|
80
278000997 Bloc 3 circ.mal*housing-tab |
278000997 |
US $21.42 |
||
|
90
|
90
278000998 Cosse femelle *terminal-femelle |
278000998 |
US $58.70 |
||
|
100
|
100
278000999 Joint de fil *seal-wire |
278000999 |
US $21.15 |
||
|
110
|
110
278001003 Bloc 2 circ.mal*housing-tab |
278001003 |
US $41.77 |
||
|
130
|
130
278001480 Bloc 2 circ.mal*housing-tab |
278001480 |
US $14.25 |
||
|
140
|
140
278001481 Cosse femelle *terminal-femal |
278001481 |
US $4.49 |
||
|
150
|
150
278001482 Joint de fil *seal |
278001482 |
US $8.46 |
||
|
160
|
160
278001483 Barrure de fils*lock-secondary |
278001483 |
US $3.01 |
||
|
170
|
170
278001308 Bloc 4 circ.mal*housing-tab |
278001308 |
US $13.60 |
||
|
180
|
180
278001210 Cosse femelle *terminal-femal |
278001210 |
US $52.35 |
||
|
190
|
190
278001114 Cosse femelle *terminal-femal |
278001114 |
US $21.15 |
||
|
200
|
200
278000220 Bloc 2 circ.mal*housing-tab(m) |
278000220 |
US $15.74 |
||
|
210
|
210
278000223 Cosse femelle *terminal-femal |
278000223 |
US $21.15 |
||
|
220
|
220
278000218 Joint de fil *seal-wire |
278000218 |
US $58.70 |
||
|
230
|
230
278001484 Capuchon caout.*cap-rubber |
278001484 |
US $33.61 |
||
|
290
|
290
293750001 Tie rap 94mm *tie-rap 94mm |
293750001 |
US $66.50 |
||
|
300
|
300
293750002 Tie rap 142mm *tie-rap 142mm |
293750002 |
US $15.50 |
||
|
360
|
360
293100012
Gaine *protector tube
|
293100012 |
— |
