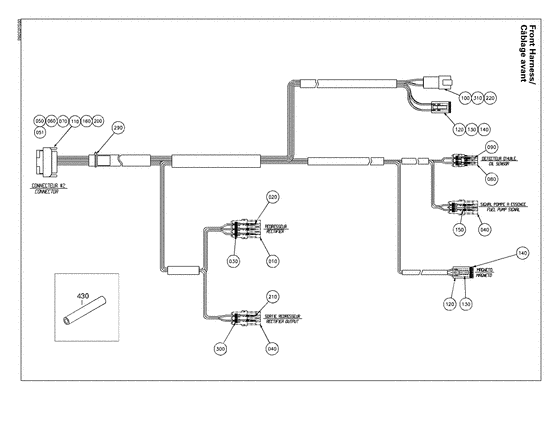

10- front harness Diagram Bombardier RX
- Year
- 2003
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
515175830 Gaine basse te*gaine low temp.vinyl |
515175830 |
US $40.80 |
||
|
|
293100011
Gaine vinyle *tubing-pvc
|
293100011 |
— | ||
|
|
512059668
Gaine thermo. *shrink tubing
|
512059668 |
— | ||
|
10
|
10
278001826
Cablage avant *wirring harness
Includes 10 - 430.; |
278001826 |
— | ||
|
10
|
10
278000281 Bloc 3 circ.fem*housing-tab |
278000281 |
US $54.25 |
||
|
20
|
20
409004300 Cosse male *terminal-male |
409004300 |
US $36.20 |
||
|
30
|
30
278000218 Joint de fil *seal-wire |
278000218 |
US $58.70 |
||
|
40
|
40
278000217 Bloc 2 circ.fem*housing-tab(f) |
278000217 |
US $54.25 |
||
|
50
|
50
278001062
Bloc 26circ.mal*housing-tab
Includes 50 - 51.; |
278001062 |
— | ||
|
51
|
51
278001307 Joint de fil *seal-wire |
278001307 |
US $15.27 |
||
|
60
|
60
278000995
Cosse femelle *terminal-femal
|
278000995 |
— | ||
|
70
|
70
409013900 Bouchon *plug |
409013900 |
US $12.19 |
||
|
80
|
80
278000220 Bloc 2 circ.mal*housing-tab(m) |
278000220 |
US $15.74 |
||
|
90
|
90
278000223 Cosse femelle *terminal-femal |
278000223 |
US $21.15 |
||
|
100
|
100
270000137 Bloc 6 circ.fem*housing-tab |
270000137 |
US $12.19 |
||
|
110
|
110
293000070 Bouchon etanche*cap-sealing |
293000070 |
US $60.70 |
||
|
120
|
120
278000736 Bloc 6 circ.mal*housing-tab |
278000736 |
US $25.19 |
||
|
130
|
130
278000632 Cosse femelle *terminal-femal |
278000632 |
US $28.40 |
||
|
140
|
140
278000737 Cale 6 circ.mal*wedge-6 ways m |
278000737 |
US $19.45 |
||
|
150
|
150
278000222 Cosse male *terminal-male |
278000222 |
US $21.15 |
||
|
160
|
160
409011700 Cosse femelle *terminal-femal. |
409011700 |
US $20.75 |
||
|
170
|
170
278000216 Joint de fil *seal-wire |
278000216 |
US $21.15 |
||
|
200
|
200
278001223 Joint de fil *seal-wire |
278001223 |
US $13.35 |
||
|
210
|
210
278001576 Cosse male *terminal-male |
278001576 |
US $60.70 |
||
|
220
|
220
278000631 Cosse male *terminal-male |
278000631 |
US $58.70 |
||
|
290
|
290
293750002 Tie rap 142mm *tie-rap 142mm |
293750002 |
US $15.50 |
||
|
300
|
300
278001505 Anneau etanche *seal-wire |
278001505 |
US $6.26 |
||
|
310
|
310
278000735 Cale 6 circ.fem*wedge-6 ways f |
278000735 |
US $21.15 |
||
|
430
|
430
293100012
Gaine *protector tube
|
293100012 |
— |
