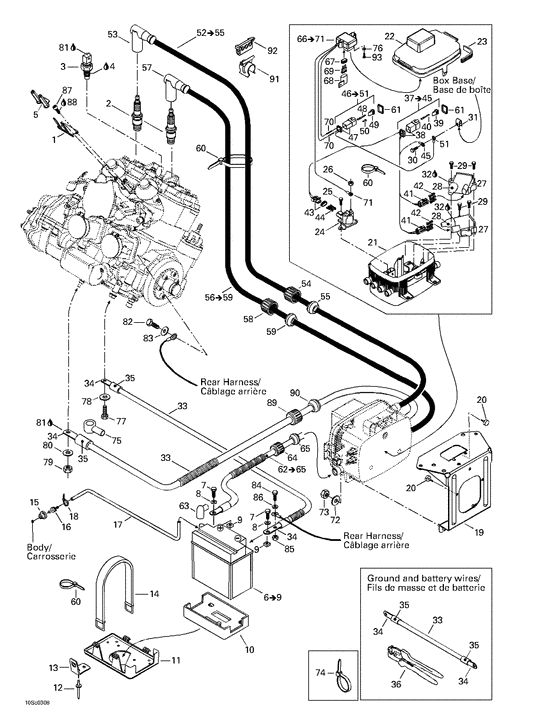

10- rear electrical box Diagram Bombardier RX
- Year
- 2003
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
414115200 Tie-rap 180 mm |
414115200 |
US $7 |
||
|
|
293750008 Tie rap 350mm *tie-rap 350mm |
293750008 |
US $13.40 |
||
|
|
278001462
Cable masse ass*cable-ground
Includes 34,35; |
278001462 |
— | ||
|
|
293750002 Tie rap 142mm *tie-rap 142mm |
293750002 |
US $15.50 |
||
|
1
|
1
278001662 Plaque masse *plate-ground |
278001662 |
US $24.45 |
||
|
2
|
2
278001650 Bougie allumage*plug-spark zfr4f11 |
278001650 |
US $32.84 |
||
|
3
|
3
278001016
Capteur temp. *sensor-liquid
|
278001016 |
— | ||
| replacement | |||||
|
3
|
3
278002895 TEMPERATURE SENSOR |
278002895 |
US $46.78 |
||
|
4
|
4
293800038 Loctite 518 *loctite-518 |
293800038 |
US $51.97 |
||
|
5
|
5
278001512 Isolateur *insulator |
278001512 |
US $10.47 |
||
|
6
|
6
278001756 Batterie yb16clb *battery (dry)Includes 6 - 9.; |
278001756 |
US $182.53 |
||
|
7
|
7
211000045
Screw-hexagonal cap
|
211000045 |
— | ||
| replacement | |||||
|
7
|
7
207161644 Screw-hex.cap din.933 |
207161644 |
US $9.50 |
||
|
8
|
8
211200018 Washer-flat m6 |
211200018 |
US $5.35 |
||
|
9
|
9
211100022
Nut-battery m6
|
211100022 |
— | ||
| replacement | |||||
|
9
|
9
232061414 Nut-hexagonal din.934 |
232061414 |
US $6.80 |
||
|
10
|
10
278001746
Tampon inf.batt*pad-batt.lower
|
278001746 |
— | ||
| replacement | |||||
|
10
|
10
278001976 Tampon inf.batt*pad-batt.lower |
278001976 |
US $28.31 |
||
|
11
|
11
278001430
Support batt. *support-batt.
|
278001430 |
— | ||
| replacement | |||||
|
11
|
11
278001972 Support batt. *support-batt. |
278001972 |
US $17.82 |
||
|
12
|
12
293150037 Rivet avdel *rivet-avdel 3/16 |
293150037 |
US $7.30 |
||
|
13
|
13
293850075 Pince courroie*clip-strap 90 |
293850075 |
US $11.17 |
||
|
14
|
14
293850021
Sangle retenue *strap-rubber
|
293850021 |
— | ||
| replacement | |||||
|
14
|
14
293850077
Sangle retenue *strap-rubber
|
293850077 |
— | ||
|
15
|
15
293720029 Passe-fils *grommet |
293720029 |
US $9.25 |
||
|
16
|
16
275500499 Soupape retenue*valve-check |
275500499 |
US $17.82 |
||
|
17
|
17
275500446 Boyau 6mm. *hose-6mm. |
275500446 |
US $21.72 |
||
|
18
|
18
293750001 Tie rap 94mm *tie-rap 94mm |
293750001 |
US $66.50 |
||
|
19
|
19
278001615
Support boite *support-box
|
278001615 |
— | ||
|
20
|
20
293830005 Butee *rubber stopper |
293830005 |
US $46.85 |
||
|
21
|
21
278001761
Base boite elec*base-box elect
|
278001761 |
— | ||
|
22
|
22
278001785 Couvercle boite*box cover |
278001785 |
US $19.92 |
||
|
23
|
23
278001173
Joint etanche *gasket
|
278001173 |
— | ||
|
24
|
24
278001802
Relais demareur*starter relay
|
278001802 |
— | ||
|
25
|
25
210261040 Screw-forming hex.hd.fl.din.7500d |
210261040 |
US $9.60 |
||
|
26
|
26
232561600 Nut-stop elastic din.985-a2 |
232561600 |
US $7.40 |
||
|
27
|
27
278001451
Bobine allumage*coil-ignition
|
278001451 |
— | ||
|
28
|
28
278001470 Capuchon protec*cap-protector |
278001470 |
US $14.67 |
||
|
29
|
29
209463840 Screw-tapp.hex.iso.1479f |
209463840 |
US $11.10 |
||
|
30
|
30
207361660 Screw-hex.cap din.933a2 s.grip |
207361660 |
US $14.80 |
||
|
31
|
31
250100029
Panel nut "u" type m6
|
250100029 |
— | ||
|
32
|
32
293550004 Graisse dielect*grease-dielect dc4 |
293550004 |
US $59.94 |
||
|
33
|
33
278001091
Cable rouge *cable-red
Includes 34,35,75,89,90; |
278001091 |
— | ||
|
37
|
37
278001458
Cablage boite *harness-box
Includes 37 - 45.; |
278001458 |
— | ||
|
38
|
38
270000137 Bloc 6 circ.fem*housing-tab |
270000137 |
US $12.19 |
||
|
39
|
39
278000735 Cale 6 circ.fem*wedge-6 ways f |
278000735 |
US $21.15 |
||
|
40
|
40
278000631 Cosse male *terminal-male |
278000631 |
US $58.70 |
||
|
41
|
41
278001467 Bloc 3 circ.mal*housing-tab |
278001467 |
US $13.21 |
||
|
42
|
42
278001468 Cosse femelle *terminal-femal |
278001468 |
US $91.30 |
||
|
43
|
43
278001113 Bloc 2 circ.mal*housing-tab |
278001113 |
US $84.60 |
||
|
44
|
44
278001114 Cosse femelle *terminal-femal |
278001114 |
US $21.15 |
||
|
45
|
45
278001392 Cosse a anneau *barrel-open |
278001392 |
US $62.10 |
||
|
46
|
46
278001811
Cablage boite *harness
Includes 46 - 51.; |
278001811 |
— | ||
|
47
|
47
278001477 Bloc 4 circ.fem*housing-tab |
278001477 |
US $62.27 |
||
|
48
|
48
515175261 Cosse male *treminal-male |
515175261 |
US $18.78 |
||
|
49
|
49
278001478 Cale 4 circ.mal*wedge-4 ways m |
278001478 |
US $28.80 |
||
|
50
|
50
293000052 Bouchon etanche*cap-sealing |
293000052 |
US $21.15 |
||
|
51
|
51
278001392 Cosse a anneau *barrel-open |
278001392 |
US $62.10 |
||
|
52
|
52
278001454 Cable de bobine*cable-coilIncludes 52 - 55.; |
278001454 |
US $114.21 |
||
|
54
|
54
278000100 Bouchon elect. *cap-elect.wire |
278000100 |
US $13.35 |
||
|
55
|
55
278000682 Passe-fils gris*grommet-gray |
278000682 |
US $41.90 |
||
|
56
|
56
278001521
Cable de bobine*cable-coil
Includes 56 - 59.; |
278001521 |
— | ||
|
58
|
58
278000100 Bouchon elect. *cap-elect.wire |
278000100 |
US $13.35 |
||
|
59
|
59
278000682 Passe-fils gris*grommet-gray |
278000682 |
US $41.90 |
||
|
60
|
60
293750002 Tie rap 142mm *tie-rap 142mm |
293750002 |
US $15.50 |
||
|
61
|
61
293200055
Joint etanche *gasket
|
293200055 |
— | ||
|
62
|
62
278001522
Cable rouge *cable-red
Includes 62 - 65.; |
278001522 |
— | ||
|
63
|
63
278000020 Capuchon batt. *cap-wire batt. |
278000020 |
US $30.35 |
||
|
64
|
64
278000100 Bouchon elect. *cap-elect.wire |
278000100 |
US $13.35 |
||
|
65
|
65
278000098 Passe-fils noir*grommet-black |
278000098 |
US $8.38 |
||
|
66
|
66
278001784
Relais *main relay
Includes 66 - 71.; |
278001784 |
— | ||
|
67
|
67
278000805 Coussinet *cushion |
278000805 |
US $21.15 |
||
|
69
|
69
410917200 Fusible 30 amp *fuse 30 amp |
410917200 |
US $21.15 |
||
|
70
|
70
515175568 Terminal male *treminal-male |
515175568 |
US $9.76 |
||
|
71
|
71
278001392 Cosse a anneau *barrel-open |
278001392 |
US $62.10 |
||
|
72
|
72
234062600 Washer-flat din.9021b-a2 |
234062600 |
US $10 |
||
|
73
|
73
232561600 Nut-stop elastic din.985-a2 |
232561600 |
US $7.40 |
||
|
74
|
74
293750001 Tie rap 94mm *tie-rap 94mm |
293750001 |
US $66.50 |
||
|
75
|
75
278000020 Capuchon batt. *cap-wire batt. |
278000020 |
US $30.35 |
||
|
76
|
76
234051600 Washer-flat din.125a-a2 |
234051600 |
US $10 |
||
|
77
|
77
207302060 Screw-hex.cap din.933a2 s.grip |
207302060 |
US $25.85 |
||
|
78
|
78
234001600 Washer-flat din.125a-a2 |
234001600 |
US $7.40 |
||
|
79
|
79
232561600 Nut-stop elastic din.985-a2 |
232561600 |
US $7.40 |
||
|
80
|
80
234061600 Washer-flat din.125a-a2 |
234061600 |
US $10.25 |
||
|
81
|
81
293550004 Graisse dielect*grease-dielect dc4 |
293550004 |
US $59.94 |
||
|
82
|
82
207361260 Screw-hex.cap din.933a2 s.grip |
207361260 |
US $18.75 |
||
|
83
|
83
234061600 Washer-flat din.125a-a2 |
234061600 |
US $10.25 |
||
|
84
|
84
207161260 Screw-hex.cap din.933a2 |
207161260 |
US $8.15 |
||
|
85
|
85
232561600 Nut-stop elastic din.985-a2 |
232561600 |
US $7.40 |
||
|
86
|
86
234061600 Washer-flat din.125a-a2 |
234061600 |
US $10.25 |
||
|
87
|
87
205062560 Screw-socket hd.din.912a2 |
205062560 |
US $21.90 |
||
|
88
|
88
293800060 Loctite 243 *loctite-243 |
293800060 |
US $31.18 |
||
|
89
|
89
278000100 Bouchon elect. *cap-elect.wire |
278000100 |
US $13.35 |
||
|
90
|
90
278000098 Passe-fils noir*grommet-black |
278000098 |
US $8.38 |
||
|
91
|
91
278000559 Support collier*support-collar |
278000559 |
US $10.17 |
||
|
92
|
92
278001597
Support fils *support-wire
|
278001597 |
— | ||
|
93
|
93
243041660 Screw-plastite hex.unsl |
243041660 |
US $19.45 |
||
