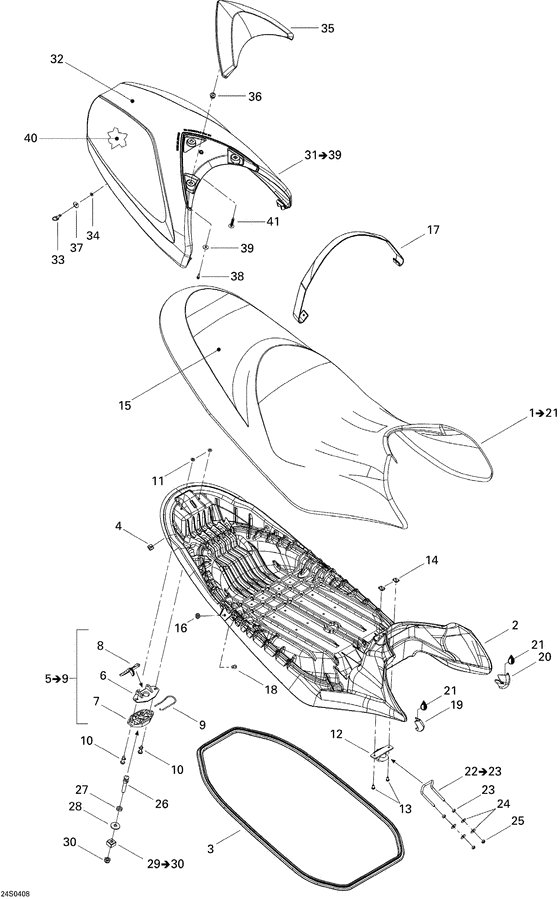

09- seat Diagram Bombardier RXP
- Year
- 2004
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
269000622
Sangle de siege*strap-seat
|
269000622 |
— | ||
|
|
269001115
Couvre siege *seat cover
On yellow seat; |
269001115 |
— | ||
|
|
269001099
Siege assemble *seat ass y
Includes 1 to 21 / RXP (Yellow); |
269001099 |
— | ||
|
|
269001102
Coin siege dr. *rh. corner
|
269001102 |
— | ||
|
|
269001103 Coin siege ga. *lh.corner |
269001103 |
US $13.21 |
||
|
|
269001100
Housse & mousse*seat cover
|
269001100 |
— | ||
|
1
|
1
269000741
Siege ass. *seat-assy.
Includes 1 to 21 / RXP (Apple Green); |
269000741 |
— | ||
|
3
|
3
293200062
Joint etanche *seal
|
293200062 |
— | ||
| replacement | |||||
|
3
|
3
293200107
Joint etanche *seal
|
293200107 |
— | ||
|
4
|
4
250100032 Quarter-turn nut |
250100032 |
US $12.19 |
||
|
5
|
5
269700075
Loquet ass.
Includes 5 to 9; |
269700075 |
— | ||
|
6
|
6
269700076
Couv.loquet *cover-latch
|
269700076 |
— | ||
|
7
|
7
269000015
Base loquet *base-latch
|
269000015 |
— | ||
| replacement | |||||
|
7
|
7
269700109 LATCH ASS Y |
269700109 |
US $26.30 |
||
|
8
|
8
269700077
Levier loquet *lever-latch
|
269700077 |
— | ||
|
9
|
9
269700017 Ressort loquet *spring-latch |
269700017 |
US $29.13 |
||
|
10
|
10
293150074 Rivet-pop 1/4 *rivet-pop 1/4 |
293150074 |
US $8.44 |
||
|
11
|
11
234061600 Washer-flat din.125a-a2 |
234061600 |
US $10.25 |
||
|
12
|
12
291002012 Crochet siege *hook-seat |
291002012 |
US $23.07 |
||
|
13
|
13
205961060 Screw-socket bn.hd.s.grip iso.7380a2 |
205961060 |
US $9.60 |
||
|
14
|
14
293100003 Ecrou a souder *nut-weld. |
293100003 |
US $58.56 |
||
|
15
|
15
269000880
Seat cover & foam rxp b-230
|
269000880 |
— | ||
|
16
|
16
293720067 Passe-fils *grommet |
293720067 |
US $12.55 |
||
|
17
|
17
269000881
Sangle de siege*seat strap
|
269000881 |
— | ||
|
18
|
18
293150078 Rivet-pop 1/4 *rivet-pop |
293150078 |
US $8 |
||
|
19
|
19
269000862
Coin siege dr. *rh. corner
|
269000862 |
— | ||
|
20
|
20
269000863
Coin siege ga. *lh.corner
|
269000863 |
— | ||
|
21
|
21
413705800 Loctite 414 *loctite-414 |
413705800 |
US $33.61 |
||
|
22
|
22
291001937 Tige en "u" *"u"clamp rodIncludes 22 to 23; |
291001937 |
US $56.05 |
||
|
23
|
23
232061600 Nut-hexagonal din.934a2 |
232061600 |
US $7.40 |
||
|
24
|
24
234062600 Washer-flat din.9021b-a2 |
234062600 |
US $10 |
||
|
25
|
25
232561600 Nut-stop elastic din.985-a2 |
232561600 |
US $7.40 |
||
|
26
|
26
291000691 Ergot de siege *stud-seat |
291000691 |
US $44.83 |
||
|
27
|
27
232100600 Nut-jam hexagonal din.439b-a2 |
232100600 |
US $14.35 |
||
|
28
|
28
234002600 Washer-flat din.9021b-a2 |
234002600 |
US $14.35 |
||
|
29
|
29
271000598 Logement ecrou *housing-nutIncludes 29 to 30; |
271000598 |
US $14.67 |
||
|
30
|
30
232501600 Nut-stop elastic din.985a2 |
232501600 |
US $10.65 |
||
|
32
|
32
269000945
Couvre-siege *seat cover
|
269000945 |
— | ||
|
33
|
33
250100033
Quarter-turn screw
|
250100033 |
— | ||
|
34
|
34
250200023 Rondelle nylon *washer |
250200023 |
US $1.79 |
||
|
35
|
35
269001217
Couvre siege *seat cover
On Apple green seat; |
269001217 |
— | ||
|
37
|
37
517302265 Rondelle *washer |
517302265 |
US $156.50 |
||
|
38
|
38
243041660 Screw-plastite hex.unsl |
243041660 |
US $19.45 |
||
|
39
|
39
234062600 Washer-flat din.9021b-a2 |
234062600 |
US $10 |
||
|
40
|
40
269000827
Mousse de siege*seat foam
|
269000827 |
— | ||
|
41
|
41
293730014 Dard noir *dart-black |
293730014 |
US $13.40 |
||
