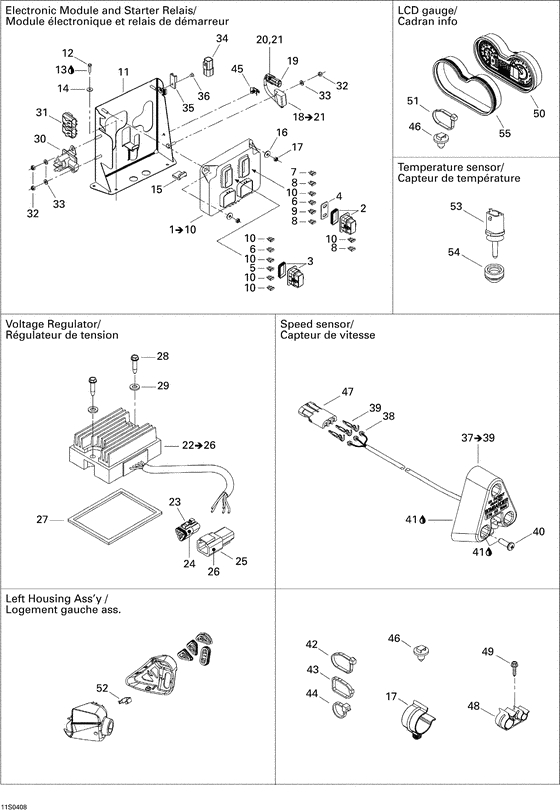

10- electrical accessories Diagram Bombardier RXP
- Year
- 2004
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
278001913
Module program.*program. module
Includes 1 to 10; |
278001913 |
— | ||
| replacement | |||||
|
1
|
1
278002043
Module program.*program. module
Includes 1 to 10; |
278002043 |
— | ||
|
2
|
2
278001618
Couv.fusible *cover-fuse
|
278001618 |
— | ||
|
3
|
3
278001069
Couv.fusible *cover-fuse
|
278001069 |
— | ||
| replacement | |||||
|
3
|
3
278001618
Couv.fusible *cover-fuse
|
278001618 |
— | ||
|
4
|
4
278001719
Cous.fusible *foam-support
|
278001719 |
— | ||
|
5
|
5
409012800 Fusible 1a *fuse-1a |
409012800 |
US $16.76 |
||
|
6
|
6
278001442 Fusible 2 amp. *fuse-2 amp. |
278001442 |
US $8.38 |
||
|
7
|
7
278001196 Fusible 3 amp. *fuse-3 amp. |
278001196 |
US $10.30 |
||
|
8
|
8
278000344 Fusible 5 amp. *fuse-5 amp. |
278000344 |
US $21.15 |
||
|
9
|
9
278000704 Fusible 7.5amp.*fuse-7.5 amp. |
278000704 |
US $19.45 |
||
|
10
|
10
278001197 Fusible 10 amp.*fuse-10 amp. |
278001197 |
US $14.20 |
||
|
11
|
11
278001870
Support module *module support
|
278001870 |
— | ||
|
12
|
12
211000023 Screw-plastite hex.wr.hd.unsl |
211000023 |
US $23.10 |
||
|
13
|
13
293800005 Loctite 271 *loctite-271 |
293800005 |
US $31.18 |
||
|
14
|
14
211200043 Washer-lock imperial |
211200043 |
US $10 |
||
|
15
|
15
278001166 Protect.module *protect-module |
278001166 |
US $10.47 |
||
|
16
|
16
234062600 Washer-flat din.9021b-a2 |
234062600 |
US $10 |
||
|
17
|
17
232561600 Nut-stop elastic din.985-a2 |
232561600 |
US $7.40 |
||
|
18
|
18
278001547 Interruteur *interrupterIncludes 18 to 21; |
278001547 |
US $147.85 |
||
|
19
|
19
278000217 Bloc 2 circ.fem*housing-tab(f) |
278000217 |
US $54.25 |
||
|
20
|
20
278000222 Cosse male *terminal-male |
278000222 |
US $21.15 |
||
|
21
|
21
278000218 Joint de fil *seal-wire |
278000218 |
US $58.70 |
||
|
22
|
22
278001969 Regulateur *regulatorIncludes 22 to 26; |
278001969 |
US $257.01 |
||
|
23
|
23
409207400 Logement femel.*housing-female |
409207400 |
US $10.47 |
||
|
24
|
24
278000631 Cosse male *terminal-male |
278000631 |
US $58.70 |
||
|
25
|
25
409206900 Logement male *housing-male |
409206900 |
US $10.85 |
||
|
26
|
26
515175567 Cosse femelle *terminal-femal |
515175567 |
US $48.05 |
||
|
27
|
27
293250123 Joint etanche *seal-rh. |
293250123 |
US $6.26 |
||
|
28
|
28
211000023 Screw-plastite hex.wr.hd.unsl |
211000023 |
US $23.10 |
||
|
29
|
29
234061600 Washer-flat din.125a-a2 |
234061600 |
US $10.25 |
||
|
30
|
30
278001802
Relais demareur*starter relay
|
278001802 |
— | ||
|
31
|
31
710000342 Couvercle *cover |
710000342 |
US $14.25 |
||
|
32
|
32
232561600 Nut-stop elastic din.985-a2 |
232561600 |
US $7.40 |
||
|
33
|
33
234061600 Washer-flat din.125a-a2 |
234061600 |
US $10.25 |
||
|
34
|
34
278001725
Capuchon *connect-cap
|
278001725 |
— | ||
| replacement | |||||
|
34
|
34
278002148
Capuchon *connect-cap
|
278002148 |
— | ||
|
35
|
35
270000141 Clip *clip |
270000141 |
US $59.50 |
||
|
36
|
36
204000081 Rivet-pop 3/16 *rivet-pop 3/16 |
204000081 |
US $19.20 |
||
|
37
|
37
278001585
Capteur vitesse*sensor-speed
Includes 37 to 39; |
278001585 |
— | ||
| replacement | |||||
|
37
|
37
278001993 Capteur vitesse*sensor-speedIncludes 37 to 39; |
278001993 |
US $177.48 |
||
|
38
|
38
710000048 Joint de fil *seal-wire |
710000048 |
US $96.10 |
||
|
39
|
39
278000222 Cosse male *terminal-male |
278000222 |
US $21.15 |
||
|
40
|
40
211000021 Screw-tri.plask pan.hd.phil. |
211000021 |
US $11.76 |
||
|
41
|
41
293800086
Scell.silicone *seal-silicone
|
293800086 |
— | ||
|
42
|
42
414115200 Tie-rap 180 mm |
414115200 |
US $7 |
||
|
43
|
43
293750008 Tie rap 350mm *tie-rap 350mm |
293750008 |
US $13.40 |
||
|
44
|
44
293750027 Tie rap *tie-rap |
293750027 |
US $39.30 |
||
|
45
|
45
278001775
Attache *self-locking clip
|
278001775 |
— | ||
|
46
|
46
293730018 Dard d ancrage *dart-mount |
293730018 |
US $4.95 |
||
|
47
|
47
278000281 Bloc 3 circ.fem*housing-tab |
278000281 |
US $54.25 |
||
|
48
|
48
275500553 Attache *retainer |
275500553 |
US $12.58 |
||
|
49
|
49
241141660 Screw-pt.hex.flange k40 x 16 |
241141660 |
US $9.60 |
||
|
50
|
50
278001701 Cadran info *gauge-lcd |
278001701 |
US $975.09 |
||
|
51
|
51
414115200 Tie-rap 180 mm |
414115200 |
US $7 |
||
|
52
|
52
277001069 Attache en "u" *bracket |
277001069 |
US $8.13 |
||
|
53
|
53
270600000 Capteur temp. *sensor-air |
270600000 |
US $88.69 |
||
|
54
|
54
278001054 Isolateur *insulator |
278001054 |
US $11.17 |
||
|
55
|
55
278001603
Support cadran *support-gauge
|
278001603 |
— | ||
