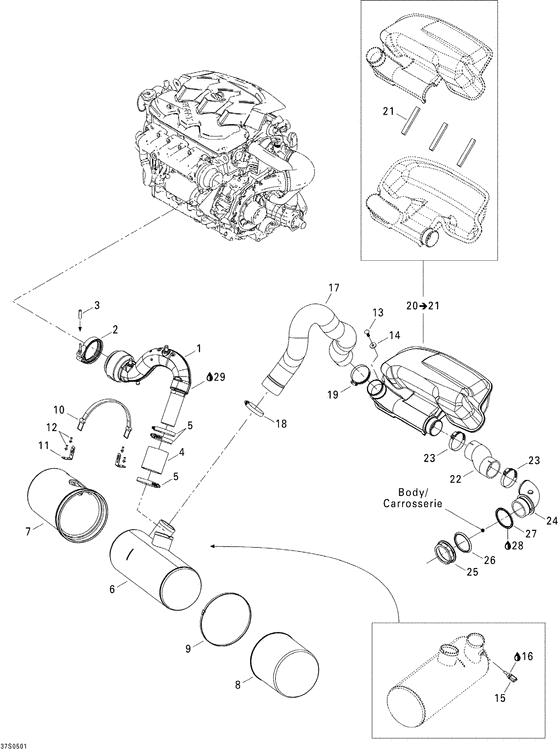

01- exhaust system Diagram Bombardier RXP
- Year
- 2005
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
274001049 Conduit echap. *exhaust pipe |
274001049 |
US $1,211.74 |
||
|
2
|
2
274000959
Bride *exhaust clamp
|
274000959 |
— | ||
| replacement | |||||
|
2
|
2
274001472 BRIDE *EXHAUST CLAMP |
274001472 |
US $66.28 |
||
|
3
|
3
415080200
Boyau polyure *polyurethane hose
|
415080200 |
— | ||
|
4
|
4
274000961
Boyau raccord *hose-exhaust
|
274000961 |
— | ||
| replacement | |||||
|
4
|
4
274001302 Boyau raccord *hose-exhaust |
274001302 |
US $38.98 |
||
|
5
|
5
293650107
Bride serrage *clamp-tridon
|
293650107 |
— | ||
|
6
|
6
274001095 Silenc.echapp. *muffler |
274001095 |
US $648.69 |
||
|
7
|
7
274001008 Couvre silenc. *muffler cover |
274001008 |
US $183.57 |
||
|
8
|
8
274000984 Couvre silenc. *cover-muffler |
274000984 |
US $183.57 |
||
|
9
|
9
293750020 Tie rap 838mm *tie-rap 838mm |
293750020 |
US $4.32 |
||
|
10
|
10
293850036 Sangle res.ess.*strap-fuel tank |
293850036 |
US $18.22 |
||
|
11
|
11
293850076 Pince courroie *clip-strap 90 |
293850076 |
US $11.17 |
||
|
12
|
12
293150037 Rivet avdel *rivet-avdel 3/16 |
293150037 |
US $7.30 |
||
|
13
|
13
293730004 Dard noir *dart-black |
293730004 |
US $77.70 |
||
|
14
|
14
234082600 Washer-flat din.9021b-a2 |
234082600 |
US $31.10 |
||
|
15
|
15
278001016
Capteur temp. *sensor-liquid
|
278001016 |
— | ||
| replacement | |||||
|
15
|
15
278002895 TEMPERATURE SENSOR |
278002895 |
US $46.78 |
||
|
16
|
16
293800038 Loctite 518 *loctite-518 |
293800038 |
US $51.97 |
||
|
17
|
17
274001164
Boyau echapp. *hose-exhaust
|
274001164 |
— | ||
| replacement | |||||
|
17
|
17
274001297
Boyau echapp. *hose-exhaust
|
274001297 |
— | ||
|
18
|
18
293650107
Bride serrage *clamp-tridon
|
293650107 |
— | ||
|
19
|
19
293650064 Bride serrage *clamp-tridon |
293650064 |
US $10.47 |
||
|
20
|
20
274001127
Resonateur dr. *rh. resonator
Includes 20 to 21; |
274001127 |
— | ||
| replacement | |||||
|
20
|
20
274001366 Resonateur dr. *rh. resonatorIncludes 20 to 21; |
274001366 |
US $186.25 |
||
|
21
|
21
293200003 Joint etanche *seal-tray |
293200003 |
US $37.20 |
||
|
22
|
22
274000991
Boyau echapp. *hose-exhaust
|
274000991 |
— | ||
|
23
|
23
293650064 Bride serrage *clamp-tridon |
293650064 |
US $10.47 |
||
|
24
|
24
274000542
Sortie echapp. *exhaust outlet
|
274000542 |
— | ||
|
25
|
25
274000224 Ecrou 72mm *nut-72mm |
274000224 |
US $16.61 |
||
|
26
|
26
274000225 Rondelle stab. *washer-stabilizing |
274000225 |
US $9.13 |
||
|
27
|
27
293250041 Joint etanche *gasket |
293250041 |
US $55.85 |
||
|
28
|
28
293800086
Scell.silicone *seal-silicone
|
293800086 |
— | ||
|
29
|
29
293800090 Enduit etanche *sealant |
293800090 |
US $31.18 |
||
