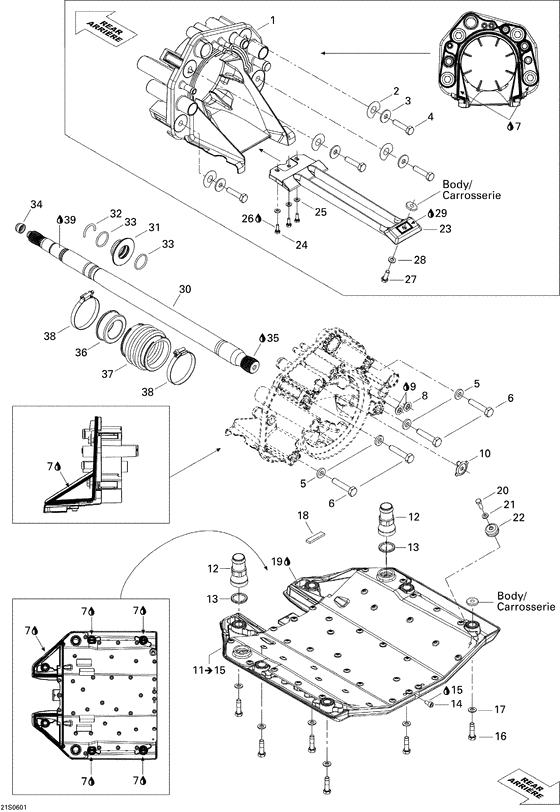

05- propulsion Diagram Bombardier RXP
- Year
- 2006
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
271001546 Support pompe *support-pump |
271001546 |
US $258.01 |
||
|
2
|
2
272000053 Cale epaisseur *shim |
272000053 |
US $54.75 |
||
|
3
|
3
234002600 Washer-flat din.9021b-a2 |
234002600 |
US $14.35 |
||
|
4
|
4
250000189 Screw-hex.cap din.931a2 s.grip |
250000189 |
US $11.50 |
||
|
5
|
5
211200051 Rondelle *washer-flat |
211200051 |
US $21.60 |
||
|
6
|
6
250000188 Screw-hex.cap din.931a2 s.grip |
250000188 |
US $19.45 |
||
|
7
|
7
293800066 Scellant 5900 *sealant-5900 |
293800066 |
US $65.25 |
||
|
8
|
8
293250084 Joint torique *o-ring |
293250084 |
US $9.15 |
||
|
9
|
9
293800038 Loctite 518 *loctite-518 |
293800038 |
US $51.97 |
||
|
10
|
10
291001887 Reducteur *reducer |
291001887 |
US $15.73 |
||
|
11
|
11
271001535
Plaque *riding plate
Includes 11 to 15; |
271001535 |
— | ||
| replacements | |||||
|
11
|
11
271001557
Plaque *riding plate
Includes 11 to 15; |
271001557 |
— | ||
|
11
|
11
293300121 Joint torique *o-ringIncludes 11 to 15; |
293300121 |
US $9.74 |
||
|
11
|
11
293710111 Raccord droit *fitting-straitIncludes 11 to 15; |
293710111 |
US $7.09 |
||
|
12
|
12
293710111 Raccord droit *fitting-strait |
293710111 |
US $7.09 |
||
|
13
|
13
293300121 Joint torique *o-ring |
293300121 |
US $9.74 |
||
|
14
|
14
250500005 Plug-drain m6x12 din.912a2 ss-304 |
250500005 |
US $70.44 |
||
|
15
|
15
293800013 Scellant tuyau *sealant-pipe |
293800013 |
US $106.05 |
||
|
16
|
16
250000230 Screw-hex.cap din.933a2 s.grip |
250000230 |
US $19.50 |
||
|
17
|
17
234081600 Washer-flat din.125a-a2 |
234081600 |
US $7.10 |
||
|
18
|
18
293250087 Joint etanche *gasket |
293250087 |
US $7.31 |
||
|
19
|
19
293800066 Scellant 5900 *sealant-5900 |
293800066 |
US $65.25 |
||
|
20
|
20
207362060 Screw-hex.cap din.933a2 s.grip |
207362060 |
US $19 |
||
|
21
|
21
234061600 Washer-flat din.125a-a2 |
234061600 |
US $10.25 |
||
|
22
|
22
271001487 Anode zinc *anode zinc |
271001487 |
US $13.21 |
||
|
23
|
23
271001476
Grille pompe *grate-pump
|
271001476 |
— | ||
|
24
|
24
207161660 Screw-hex.cap din.933a2 |
207161660 |
US $9.50 |
||
|
25
|
25
234061600 Washer-flat din.125a-a2 |
234061600 |
US $10.25 |
||
|
26
|
26
293800005 Loctite 271 *loctite-271 |
293800005 |
US $31.18 |
||
|
27
|
27
207383060 Screw-hex.cap din.933a2 s.grip |
207383060 |
US $24.50 |
||
|
28
|
28
234081600 Washer-flat din.125a-a2 |
234081600 |
US $7.10 |
||
|
29
|
29
293800066 Scellant 5900 *sealant-5900 |
293800066 |
US $65.25 |
||
|
30
|
30
271001432
Arbre transm. *shaft-drive
|
271001432 |
— | ||
| replacement | |||||
|
30
|
30
271001601 Arbre transm. *shaft-drive |
271001601 |
US $362.80 |
||
|
31
|
31
271001434 Bague supp.flot*support ring |
271001434 |
US $58.09 |
||
|
32
|
32
271001433
Pince en "c" *"c" clip
|
271001433 |
— | ||
|
33
|
33
293300107 Joint torique *o-ring |
293300107 |
US $2.62 |
||
|
34
|
34
272000173 Bouchon *plug |
272000173 |
from US $9.57 |
||
|
35
|
35
293550010 Graisse synth. *grease-synth. |
293550010 |
US $33.61 |
||
|
36
|
36
271001420
Bague carbone *carbon ring
|
271001420 |
— | ||
|
37
|
37
271001422
Soufflet *bellow
|
271001422 |
— | ||
|
38
|
38
293650079 Bride serrage *clamp-norma |
293650079 |
US $23.80 |
||
