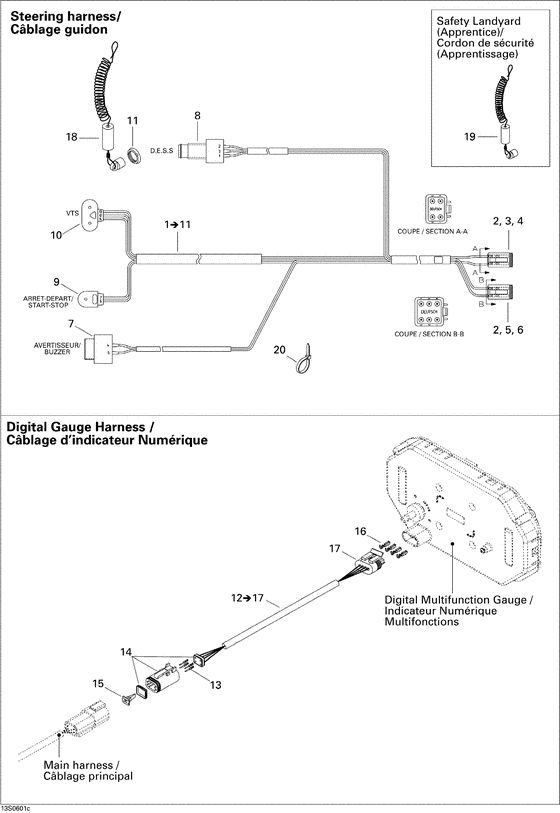

10- electrical harness 3 Diagram Bombardier RXP
- Year
- 2006
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
278002110 Cablage guidon *harness-steer.Includes 1 to 11; |
278002110 |
US $396.75 |
||
|
2
|
2
278000632 Cosse femelle *terminal-femal |
278000632 |
US $28.40 |
||
|
3
|
3
278000739 Bloc 4 circ.mal*housing-tab |
278000739 |
US $21.42 |
||
|
4
|
4
278000738 Cale 4 circ.mal*wedge-4 ways m |
278000738 |
US $41 |
||
|
5
|
5
278000736 Bloc 6 circ.mal*housing-tab |
278000736 |
US $25.19 |
||
|
6
|
6
278000737 Cale 6 circ.mal*wedge-6 ways m |
278000737 |
US $19.45 |
||
|
7
|
7
278001586
Avertisseur *buzzer
|
278001586 |
— | ||
|
8
|
8
278001734
Inter.urgence *switch-safety
|
278001734 |
— | ||
|
9
|
9
278001733 Interrupteur *switch-ass y |
278001733 |
US $49.93 |
||
|
10
|
10
278002156
Inter.vts. *switch-vts.
|
278002156 |
— | ||
|
11
|
11
278000508
Ecrou securite *nut-saf.switch
|
278000508 |
— | ||
|
12
|
12
278002111 Cablage cadran *harness-ass yIncludes 12 to 17; |
278002111 |
US $60.57 |
||
|
13
|
13
278000632 Cosse femelle *terminal-femal |
278000632 |
US $28.40 |
||
|
14
|
14
278000739 Bloc 4 circ.mal*housing-tab |
278000739 |
US $21.42 |
||
|
15
|
15
278000738 Cale 4 circ.mal*wedge-4 ways m |
278000738 |
US $41 |
||
|
16
|
16
278001114 Cosse femelle *terminal-femal |
278001114 |
US $21.15 |
||
|
17
|
17
278001308 Bloc 4 circ.mal*housing-tab |
278001308 |
US $13.60 |
||
|
18
|
18
278002150
Cordon securite*lanyard-safety
|
278002150 |
— | ||
|
19
|
19
278002152
Cordon secur.di*lanyard-safety di
|
278002152 |
— | ||
|
20
|
20
293750002 Tie rap 142mm *tie-rap 142mm |
293750002 |
US $15.50 |
