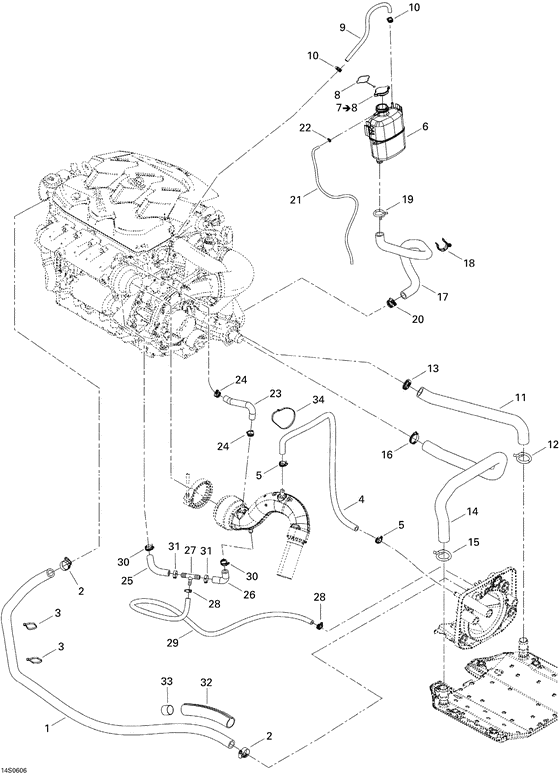

01- cooling system Diagram Bombardier RXT
- Year
- 2006
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
276000138
Boyau forme *hose-formed
|
276000138 |
— | ||
|
2
|
2
293650051 Bride serrage *clamp-tridon |
293650051 |
US $28.55 |
||
|
3
|
3
414115200 Tie-rap 180 mm |
414115200 |
US $7 |
||
|
4
|
4
276000151
Boyau 12.5mm. *hose 12.5mm.
|
276000151 |
— | ||
|
5
|
5
293650172 Bride serrage *hose clamp |
293650172 |
US $20.50 |
||
|
6
|
6
276000086 Res.antigel *tank-coolant |
276000086 |
US $131.63 |
||
|
7
|
7
276000100 Bouchon rad. *pressure cap ass yIncludes 7 to 8; |
276000100 |
US $28.25 |
||
|
8
|
8
276000127
Attache *latch
|
276000127 |
— | ||
|
9
|
9
275500549 Boyau 1/4 *hose-1/4 |
275500549 |
US $190.60 |
||
|
10
|
10
293650170 Bride serrage *hose clamp |
293650170 |
US $27.20 |
||
|
11
|
11
276000153
Boyau droit *hose-right
|
276000153 |
— | ||
| replacement | |||||
|
11
|
11
276000248 RH RADIATOR HOSE |
276000248 |
US $62.39 |
||
|
12
|
12
293650114 Bride a ressort*clamp-spring |
293650114 |
US $10.35 |
||
|
13
|
13
293650045 Bride serrage *clamp-tridon |
293650045 |
US $37.65 |
||
|
14
|
14
276000154
Boyau gauche *lh.side hose
|
276000154 |
— | ||
| replacement | |||||
|
14
|
14
276000250 LH RADIATOR HOSE |
276000250 |
US $62.17 |
||
|
15
|
15
293650114 Bride a ressort*clamp-spring |
293650114 |
US $10.35 |
||
|
16
|
16
293650045 Bride serrage *clamp-tridon |
293650045 |
US $37.65 |
||
|
17
|
17
276000144 Boyau forme *molded hose |
276000144 |
US $34.29 |
||
|
18
|
18
275500526 Attache *retainer |
275500526 |
US $5.87 |
||
|
19
|
19
293650115 Bride a ressort*clamp-spring |
293650115 |
US $4.10 |
||
|
20
|
20
293650019 Bride serrage *clamp-tridon |
293650019 |
US $37.65 |
||
|
21
|
21
415080200
Boyau polyure *polyurethane hose
|
415080200 |
— | ||
|
22
|
22
293750001 Tie rap 94mm *tie-rap 94mm |
293750001 |
US $66.50 |
||
|
23
|
23
276000155
Boyau forme *hose-formed
|
276000155 |
— | ||
|
24
|
24
293650172 Bride serrage *hose clamp |
293650172 |
US $20.50 |
||
|
25
|
25
276000160
Boyau forme *hose-formed
|
276000160 |
— | ||
|
26
|
26
276000161
Boyau forme *hose-formed
|
276000161 |
— | ||
|
27
|
27
293710025
Raccord en t *fitting-t
|
293710025 |
— | ||
|
28
|
28
293650171 Bride serrage *hose clamp |
293650171 |
US $20.50 |
||
|
29
|
29
509000093
Boyau 8mm *hose-8mm
|
509000093 |
— | ||
|
30
|
30
293650172 Bride serrage *hose clamp |
293650172 |
US $20.50 |
||
|
31
|
31
293650173 Bride serrage *hose clamp |
293650173 |
US $20.50 |
||
|
32
|
32
409902200 Gaine 25mm *tubing-25mm |
409902200 |
US $15.73 |
||
|
33
|
33
276000125 Gaine thermo. *shrink tubing |
276000125 |
US $61.15 |
||
|
34
|
34
293750008 Tie rap 350mm *tie-rap 350mm |
293750008 |
US $13.40 |
||
