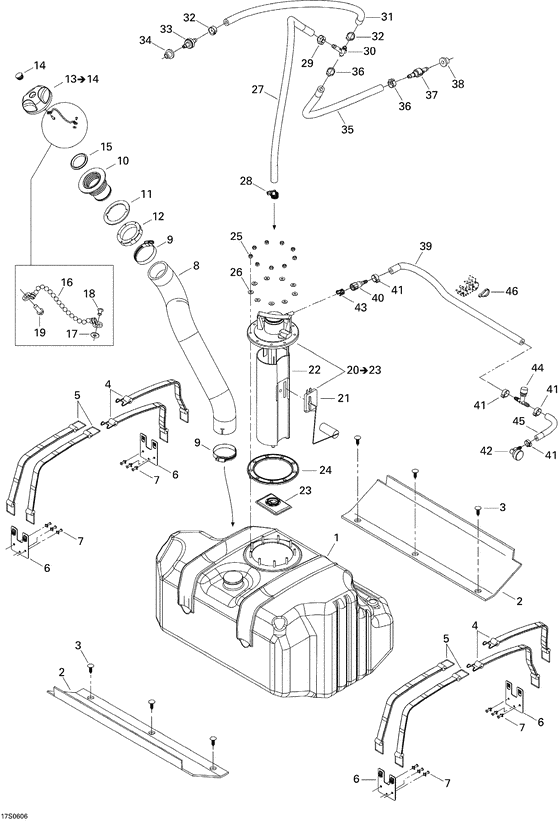

02- fuel system Diagram Bombardier RXT
- Year
- 2006
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
275500675 Reservoir ess. *tank-fuel |
275500675 |
US $263.13 |
||
|
2
|
2
293830094 Tampon caout. *pad-rubber |
293830094 |
US $64.23 |
||
|
3
|
3
293730011 Dard noir *dart-black |
293730011 |
US $6.65 |
||
|
4
|
4
293850067
Sangle res.ess.*strap-fuel tank
|
293850067 |
— | ||
|
5
|
5
293850038
Sangle res.ess.*strap-tank fue
|
293850038 |
— | ||
| replacement | |||||
|
5
|
5
293850094 FUEL TANK STRAP |
293850094 |
US $24.34 |
||
|
6
|
6
293850066 Pince courroie *clip-strap |
293850066 |
US $14.67 |
||
|
7
|
7
293150043 Rivet-pop 3/16 *rivet-pop 3/16 |
293150043 |
US $13.60 |
||
|
8
|
8
275500648 Boyau remplis. *hose-fil.neck |
275500648 |
US $84.61 |
||
|
9
|
9
293650023 Bride serrage *clamp-tridon |
293650023 |
US $70.70 |
||
|
10
|
10
275500231 Goulot remplis.*neck-filler |
275500231 |
US $12.68 |
||
|
11
|
11
293250029 Joint etanche *gasket |
293250029 |
US $16.13 |
||
|
12
|
12
211100012 Nut-neck filler fuel |
211100012 |
US $14.14 |
||
|
13
|
13
275500430 Bouchon ess.sub*cap-fuel sub.Includes 13 to 14; |
275500430 |
US $30.19 |
||
|
14
|
14
293000034 Capuchon press.*cap-snap black |
293000034 |
US $50.05 |
||
|
15
|
15
293250075
Joint etanche *gasket
|
293250075 |
— | ||
|
16
|
16
275500518 Chaine bouchon *chain-cap fuel |
275500518 |
US $14.67 |
||
|
17
|
17
234032600 Washer-flat din.9021b-a2 |
234032600 |
US $7.10 |
||
|
18
|
18
390407900 Rivet-pop 1/8 *rivet-pop 1/8 |
390407900 |
US $96 |
||
|
19
|
19
241140060 Screw-pt.hex.flange k40 x 10 |
241140060 |
US $9.60 |
||
|
20
|
20
270600056 Module pompe *pump moduleIncludes 20 to 23; |
270600056 |
US $938.38 |
||
|
21
|
21
270600051 Levier capteur *lever-sensor |
270600051 |
US $140.42 |
||
|
23
|
23
219700368 Filtreur bosch *bosch filter |
219700368 |
from US $43.86 |
||
|
24
|
24
293250088 Joint etanche *gasket |
293250088 |
US $14.64 |
||
|
25
|
25
232551200 Nut-stop elastic din.985 |
232551200 |
US $19 |
||
|
26
|
26
234052600 Washer-flat din.9021b-a2 |
234052600 |
from US $1.32 |
||
|
27
|
27
275500549 Boyau 1/4 *hose-1/4 |
275500549 |
US $190.60 |
||
|
28
|
28
293650170 Bride serrage *hose clamp |
293650170 |
US $27.20 |
||
|
29
|
29
293650025 Bride serrage *clamp-oetiker |
293650025 |
US $20.50 |
||
|
30
|
30
293710059 Raccord en y *y-connector |
293710059 |
US $10.97 |
||
|
31
|
31
275500549 Boyau 1/4 *hose-1/4 |
275500549 |
US $190.60 |
||
|
32
|
32
293650025 Bride serrage *clamp-oetiker |
293650025 |
US $20.50 |
||
|
33
|
33
275500398 Soupape retenue*valve-check |
275500398 |
from US $12.38 |
||
|
34
|
34
293720029 Passe-fils *grommet |
293720029 |
US $9.25 |
||
|
35
|
35
275500549 Boyau 1/4 *hose-1/4 |
275500549 |
US $190.60 |
||
|
36
|
36
293650025 Bride serrage *clamp-oetiker |
293650025 |
US $20.50 |
||
|
37
|
37
275500505 Soupape retenue*valve-check |
275500505 |
US $27.56 |
||
|
38
|
38
293720029 Passe-fils *grommet |
293720029 |
US $9.25 |
||
|
39
|
39
275500626 Boyau 5/16" *hose-5/16 |
275500626 |
US $48.72 |
||
|
40
|
40
275500428 Boitier connec.*connector-box |
275500428 |
US $13.75 |
||
|
41
|
41
293650011 Bride serrage *clamp-oetiker |
293650011 |
US $20.50 |
||
|
42
|
42
293710105 Raccord coude90*fitting-elbow |
293710105 |
US $14.14 |
||
|
43
|
43
275500429 Barette connec.*connector-stopper |
275500429 |
US $30.80 |
||
|
44
|
44
293710112
Valve purge *bleed valve
|
293710112 |
— | ||
|
45
|
45
275500626 Boyau 5/16" *hose-5/16 |
275500626 |
US $48.72 |
||
|
46
|
46
414115200 Tie-rap 180 mm |
414115200 |
US $7 |
||
