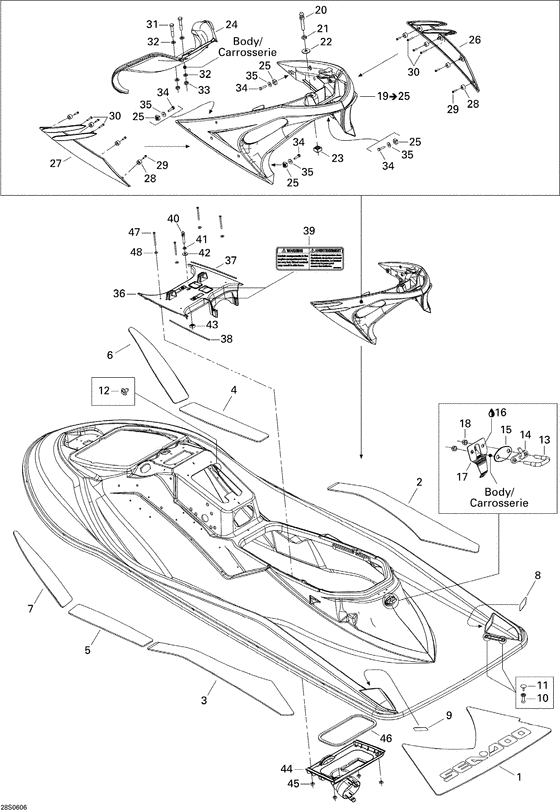

09- body, rear view Diagram Bombardier RXT
- Year
- 2006
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
291002316
Tapis arriere *carpet-rear
|
291002316 |
— | ||
|
2
|
2
291002382 Tapis arr dr *rear carpetrh |
291002382 |
US $50.97 |
||
|
3
|
3
291002383 Tapis arr. ga *rear carpetlh |
291002383 |
US $50.97 |
||
|
4
|
4
291002384 Tapis centre dr*centr carpetrh |
291002384 |
US $38.71 |
||
|
5
|
5
291002385 Tapis centre ga*centr carpetlh |
291002385 |
US $38.71 |
||
|
6
|
6
291002386 Tapis avant dr.*front carpetrh |
291002386 |
US $25.45 |
||
|
7
|
7
291002387 Tapis avant ga *front carpetlh |
291002387 |
US $31.59 |
||
|
8
|
8
291001758 Antiderapant-dr*anti-skid-rh |
291001758 |
US $10.17 |
||
|
9
|
9
291001759 Antiderapant-ga*anti-skid-lh |
291001759 |
US $10.17 |
||
|
10
|
10
293150016 Rivet-pop 1/8 *rivet-pop 1/8 |
293150016 |
US $25.50 |
||
|
11
|
11
293000014 Capuchon press.*cap-snap black |
293000014 |
US $67 |
||
|
12
|
12
293730018 Dard d ancrage *dart-mount |
293730018 |
US $4.95 |
||
|
13
|
13
292000011 Bride en u *clamp-u |
292000011 |
US $68.29 |
||
|
14
|
14
291002351 Crochet *hook |
291002351 |
US $41.77 |
||
|
15
|
15
291001386 Plaque finition*plate-finition |
291001386 |
US $11.68 |
||
|
16
|
16
293800086
Scell.silicone *seal-silicone
|
293800086 |
— | ||
|
17
|
17
291001747 Plaque retenue *plate-retainer |
291001747 |
US $14.67 |
||
|
18
|
18
232581200 Nut-stop elastic din.985 |
232581200 |
US $14.35 |
||
|
19
|
19
291002368
Poignee arriere*handle-grab
Includes 19 to 25; |
291002368 |
— | ||
|
20
|
20
291000945 Ergot de siege *stud-seat |
291000945 |
US $20.38 |
||
|
21
|
21
232100600 Nut-jam hexagonal din.439b-a2 |
232100600 |
US $14.35 |
||
|
22
|
22
234002600 Washer-flat din.9021b-a2 |
234002600 |
US $14.35 |
||
|
23
|
23
271000598 Logement ecrou *housing-nut |
271000598 |
US $14.67 |
||
|
24
|
24
269000749 Couvercle *cover-handle |
269000749 |
US $17.29 |
||
|
25
|
25
269501166 Logement ecrou *housing-nut |
269501166 |
US $6.26 |
||
|
26
|
26
269501417
Enjoliveur *cosmetic
|
269501417 |
— | ||
|
27
|
27
269501418
Enjoliveur *cosmetic
|
269501418 |
— | ||
|
28
|
28
291001203 Entretoise *spacer |
291001203 |
US $28.06 |
||
|
29
|
29
241141660 Screw-pt.hex.flange k40 x 16 |
241141660 |
US $9.60 |
||
|
30
|
30
241142560 Screw-pt.hex.flange k40 x 25 |
241142560 |
from US $2.54 |
||
|
31
|
31
207084560 Screw-hex.cap din.931a2 |
207084560 |
US $21.75 |
||
|
32
|
32
234081600 Washer-flat din.125a-a2 |
234081600 |
US $7.10 |
||
|
33
|
33
232581200 Nut-stop elastic din.985 |
232581200 |
US $14.35 |
||
|
34
|
34
207162560 Screw-hex.cap din.933a2 |
207162560 |
US $9.50 |
||
|
35
|
35
234062600 Washer-flat din.9021b-a2 |
234062600 |
US $10 |
||
|
36
|
36
291002136 Pont superieur *bridge-upper |
291002136 |
US $97.89 |
||
|
37
|
37
293250008 Joint etanche *gasket |
293250008 |
US $15.73 |
||
|
38
|
38
293250008 Joint etanche *gasket |
293250008 |
US $15.73 |
||
|
39
|
39
219902643 Etiquette *label- |
219902643 |
US $0.02 |
||
|
40
|
40
291000945 Ergot de siege *stud-seat |
291000945 |
US $20.38 |
||
|
41
|
41
232100600 Nut-jam hexagonal din.439b-a2 |
232100600 |
US $14.35 |
||
|
42
|
42
234002600 Washer-flat din.9021b-a2 |
234002600 |
US $14.35 |
||
|
43
|
43
271000598 Logement ecrou *housing-nut |
271000598 |
US $14.67 |
||
|
44
|
44
291002138
Pont inferieur *bridge-lower
|
291002138 |
— | ||
|
45
|
45
269501166 Logement ecrou *housing-nut |
269501166 |
US $6.26 |
||
|
46
|
46
293200090 Joint etanche *gasket |
293200090 |
US $12.58 |
||
|
47
|
47
207167560 Screw-hex.cap din.933a2 |
207167560 |
US $11.15 |
||
|
48
|
48
234062600 Washer-flat din.9021b-a2 |
234062600 |
US $10 |
