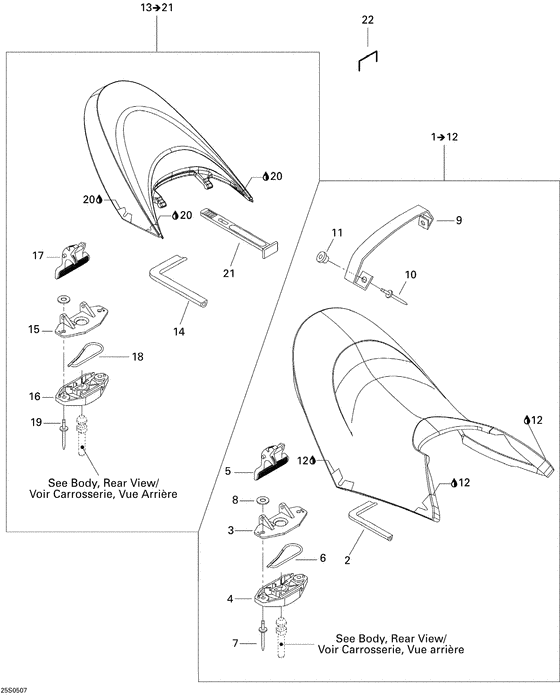

09- seat Diagram Bombardier RXT
- Year
- 2006
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
269001340
Siege assemble *seat ass y
Includes 1 to 12, Maya Gold; |
269001340 |
— | ||
|
1
|
1
269001371 Siege assemble *seat ass yIncludes 1 to 12, Viper Red; |
269001371 |
US $672.15 |
||
|
2
|
2
293200107
Joint etanche *seal
|
293200107 |
— | ||
|
3
|
3
269700076
Couv.loquet *cover-latch
|
269700076 |
— | ||
|
4
|
4
269000015
Base loquet *base-latch
|
269000015 |
— | ||
| replacement | |||||
|
4
|
4
269700109 LATCH ASS Y |
269700109 |
US $26.30 |
||
|
5
|
5
269700077
Levier loquet *lever-latch
|
269700077 |
— | ||
|
6
|
6
269700017 Ressort loquet *spring-latch |
269700017 |
US $29.13 |
||
|
7
|
7
293150074 Rivet-pop 1/4 *rivet-pop 1/4 |
293150074 |
US $8.44 |
||
|
8
|
8
234061600 Washer-flat din.125a-a2 |
234061600 |
US $10.25 |
||
|
9
|
9
269001342
Sangle de siege*strap-seat
Maya Gold B-270; |
269001342 |
— | ||
|
9
|
9
269001228
Sangle de siege*strap-seat
Viper Red; |
269001228 |
— | ||
|
10
|
10
293150067 Rivet tri-fast *rivet-tri-fast |
293150067 |
US $38.30 |
||
|
11
|
11
293720067 Passe-fils *grommet |
293720067 |
US $12.55 |
||
|
12
|
12
413705800 Loctite 414 *loctite-414 |
413705800 |
US $33.61 |
||
|
13
|
13
269001238 Siege assemble *seat ass yIncludes 13 to 21, Viper Red; |
269001238 |
US $504.87 |
||
|
13
|
13
269001357 Siege assemble *seat ass yIncludes 13 to 21, Maya Gold; |
269001357 |
US $504.87 |
||
|
14
|
14
293200062
Joint etanche *seal
Viper Red; |
293200062 |
— | ||
| replacement | |||||
|
14
|
14
293200107
Joint etanche *seal
Viper Red; |
293200107 |
— | ||
|
14
|
14
293200107
Joint etanche *seal
Maya Gold; |
293200107 |
— | ||
|
15
|
15
269700076
Couv.loquet *cover-latch
|
269700076 |
— | ||
|
16
|
16
269000015
Base loquet *base-latch
|
269000015 |
— | ||
| replacement | |||||
|
16
|
16
269700109 LATCH ASS Y |
269700109 |
US $26.30 |
||
|
17
|
17
269700077
Levier loquet *lever-latch
|
269700077 |
— | ||
|
18
|
18
269700017 Ressort loquet *spring-latch |
269700017 |
US $29.13 |
||
|
19
|
19
293150074 Rivet-pop 1/4 *rivet-pop 1/4 |
293150074 |
US $8.44 |
||
|
20
|
20
413705800 Loctite 414 *loctite-414Viper Red; |
413705800 |
US $33.61 |
||
|
21
|
21
269500408 Sangle *strap |
269500408 |
US $14.67 |
||
|
22
|
22
293730005
Agrafe monelle *staple-monelle
|
293730005 |
— | ||
