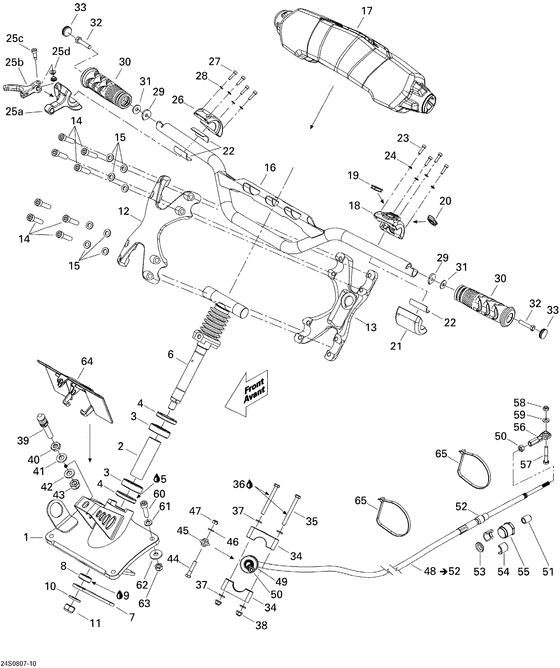

07- steering Diagram Bombardier RXT
- Year
- 2008
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
277001614
Support *support
|
277001614 |
— | ||
|
2
|
2
277001572 Entretoise *spacer |
277001572 |
US $20.96 |
||
|
3
|
3
503190396 Roulement bille*ball bearing |
503190396 |
US $10.69 |
||
|
4
|
4
293200115 Anneau etanche *oil seal |
293200115 |
US $14.67 |
||
|
5
|
5
293550010 Graisse synth. *grease-synth. |
293550010 |
US $33.61 |
||
|
6
|
6
277001548
Tige direction *steering shaft
|
277001548 |
— | ||
|
7
|
7
277001566 Bras mobile *mobile arm |
277001566 |
US $23.07 |
||
|
8
|
8
277001584 Bague *ring |
277001584 |
US $23.07 |
||
|
9
|
9
293550010 Graisse synth. *grease-synth. |
293550010 |
US $33.61 |
||
|
10
|
10
250200053 Rondelle m12 *flat washer |
250200053 |
US $83.80 |
||
|
11
|
11
250100078 Nut-stop elastic din.985a2 |
250100078 |
US $19.45 |
||
|
12
|
12
277001552 Ext. guidon *bar ext. |
277001552 |
US $156.03 |
||
|
13
|
13
277001569
Extension *extension
|
277001569 |
— | ||
|
14
|
14
205083560 Screw-socket hd.din.912a2 |
205083560 |
US $16 |
||
|
15
|
15
234080600 Washer-flat din.433a2 |
234080600 |
US $9.60 |
||
|
16
|
16
277001610
Guidon *handle bar
|
277001610 |
— | ||
|
17
|
17
277001557 Tampon guidon *pad handle |
277001557 |
US $78.49 |
||
|
18
|
18
277001560 Logement gauche*lh.housing |
277001560 |
US $117.25 |
||
|
19
|
19
277000306
Bouton inter. *knob-switch
|
277000306 |
— | ||
|
20
|
20
278002066 Bouton de vts *vts knob |
278002066 |
US $23.80 |
||
|
21
|
21
277001559
Logement *housing
|
277001559 |
— | ||
|
22
|
22
293250202 Tampon *pad |
293250202 |
US $9.40 |
||
|
23
|
23
205041660 Screw-socket hd.din.912a2 |
205041660 |
US $2.45 |
||
|
24
|
24
234040600 Washer-flat din.433a2 |
234040600 |
US $7.10 |
||
|
25a
|
25a
277001570 Logement *housing |
277001570 |
US $135.63 |
||
|
25b
|
25b
277001564 Manette acc. *throttle handle |
277001564 |
US $110.13 |
||
|
25c
|
25c
250000343 Socket head shoulder screw |
250000343 |
US $11.17 |
||
|
25d
|
25d
293900090 Douille *bushing |
293900090 |
US $12.58 |
||
|
26
|
26
277001563 Logement *housing |
277001563 |
US $99.93 |
||
|
27
|
27
205041660 Screw-socket hd.din.912a2 |
205041660 |
US $2.45 |
||
|
28
|
28
234040600 Washer-flat din.433a2 |
234040600 |
US $7.10 |
||
|
29
|
29
277000554
Ajout gaine *insert-grip
|
277000554 |
— | ||
|
30
|
30
277001336 Gaine guidon *handle grip |
277001336 |
from US $21.42 |
||
|
31
|
31
234062600 Washer-flat din.9021b-a2 |
234062600 |
US $10 |
||
|
32
|
32
250000002 Screw-hex.cap din.933a2 s.grip |
250000002 |
US $29.75 |
||
|
33
|
33
277000203 Capuchon gaine *cap-grip black |
277000203 |
US $20.02 |
||
|
34
|
34
277001528 Palier support *thrust support |
277001528 |
US $11.49 |
||
|
35
|
35
207166060 Screw-hex.cap din.933a2 |
207166060 |
US $5.51 |
||
|
36
|
36
293800086
Scell.silicone *seal-silicone
|
293800086 |
— | ||
|
37
|
37
234061600 Washer-flat din.125a-a2 |
234061600 |
US $10.25 |
||
|
38
|
38
232561200 Nut-stop elastic din.985 |
232561200 |
US $27.35 |
||
|
39
|
39
291002717 Ergot d ancrage*stud-latch |
291002717 |
US $43.81 |
||
|
40
|
40
232100600 Nut-jam hexagonal din.439b-a2 |
232100600 |
US $14.35 |
||
|
41
|
41
234001600 Washer-flat din.125a-a2 |
234001600 |
US $7.40 |
||
|
42
|
42
234001600 Washer-flat din.125a-a2 |
234001600 |
US $7.40 |
||
|
43
|
43
232501200 Nut-stop elastic din.985 |
232501200 |
US $13.72 |
||
|
44
|
44
207063060 Screw-hex.cap din.931a2 |
207063060 |
US $12.15 |
||
|
45
|
45
277000775 Joint a rotule *joint-ball |
277000775 |
US $58.48 |
||
|
46
|
46
234061600 Washer-flat din.125a-a2 |
234061600 |
US $10.25 |
||
|
47
|
47
232561200 Nut-stop elastic din.985 |
232561200 |
US $27.35 |
||
|
48
|
48
277001555 Cable direction*steering cableIncludes 48 to 52; |
277001555 |
US $222.34 |
||
|
49
|
49
277000782 Bouton ajust. *knob-ajust. |
277000782 |
US $22.39 |
||
|
50
|
50
211100056 Nut-hex. 1/4-28 ss-304 |
211100056 |
US $8.80 |
||
|
51
|
51
277000849
Embout petit *boot-small
|
277000849 |
— | ||
| replacement | |||||
|
51
|
51
277001582 Embout petit *wiper rod |
277001582 |
US $12.04 |
||
|
52
|
52
277000846 Embout grand *boot-large |
277000846 |
from US $5.07 |
||
|
53
|
53
293830063 Rondelle caout.*rubber washer |
293830063 |
US $24.30 |
||
|
54
|
54
277001527 Demi-bague *half-ring |
277001527 |
US $11.39 |
||
|
55
|
55
277000784
Barrure cable *lock-cable
|
277000784 |
— | ||
| replacement | |||||
|
55
|
55
277001729 STEERING CABLE LOCK |
277001729 |
from US $14.20 |
||
|
56
|
56
277000775 Joint a rotule *joint-ball |
277000775 |
US $58.48 |
||
|
57
|
57
207063560 Screw-hex.cap din.931a2 |
207063560 |
US $14.35 |
||
|
58
|
58
232561200 Nut-stop elastic din.985 |
232561200 |
US $27.35 |
||
|
59
|
59
234061600 Washer-flat din.125a-a2 |
234061600 |
US $10.25 |
||
|
60
|
60
205083560 Screw-socket hd.din.912a2 |
205083560 |
US $16 |
||
|
61
|
61
234081600 Washer-flat din.125a-a2 |
234081600 |
US $7.10 |
||
|
62
|
62
234082600 Washer-flat din.9021b-a2 |
234082600 |
US $31.10 |
||
|
63
|
63
232581200 Nut-stop elastic din.985 |
232581200 |
US $14.35 |
||
|
64
|
64
277001623 Enjoliveur *cap |
277001623 |
US $20.96 |
||
|
65
|
65
293750008 Tie rap 350mm *tie-rap 350mm |
293750008 |
US $13.40 |
||
