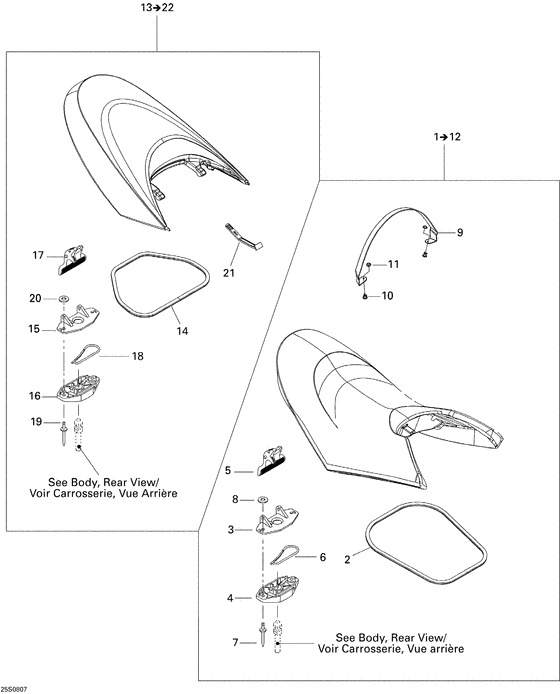

09- seat Diagram Bombardier RXT
- Year
- 2008
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
269001472 Siege avant *front seatIncludes 1 to 12; |
269001472 |
US $672.15 |
||
|
2
|
2
293200107
Joint etanche *seal
|
293200107 |
— | ||
|
3
|
3
269700076
Couv.loquet *cover-latch
|
269700076 |
— | ||
|
4
|
4
269000015
Base loquet *base-latch
|
269000015 |
— | ||
| replacement | |||||
|
4
|
4
269700109 LATCH ASS Y |
269700109 |
US $26.30 |
||
|
5
|
5
269700077
Levier loquet *lever-latch
|
269700077 |
— | ||
|
6
|
6
269700017 Ressort loquet *spring-latch |
269700017 |
US $29.13 |
||
|
7
|
7
293150151 Rivet-blind1/4 *rivetblind 1/4 |
293150151 |
US $9.79 |
||
|
8
|
8
234061600 Washer-flat din.125a-a2 |
234061600 |
US $10.25 |
||
|
9
|
9
269001493 Sangle de siege*strap-seat |
269001493 |
US $39.73 |
||
|
10
|
10
293150067 Rivet tri-fast *rivet-tri-fast |
293150067 |
US $38.30 |
||
|
11
|
11
293720067 Passe-fils *grommet |
293720067 |
US $12.55 |
||
|
13
|
13
269001474 Siege arriere *rear seatIncludes 13 to 22; |
269001474 |
US $504.87 |
||
|
14
|
14
293200118 Seal, meter |
293200118 |
US $67.16 |
||
|
15
|
15
269700076
Couv.loquet *cover-latch
|
269700076 |
— | ||
|
16
|
16
269000015
Base loquet *base-latch
|
269000015 |
— | ||
| replacement | |||||
|
16
|
16
269700109 LATCH ASS Y |
269700109 |
US $26.30 |
||
|
17
|
17
269700077
Levier loquet *lever-latch
|
269700077 |
— | ||
|
18
|
18
269700017 Ressort loquet *spring-latch |
269700017 |
US $29.13 |
||
|
19
|
19
293150151 Rivet-blind1/4 *rivetblind 1/4 |
293150151 |
US $9.79 |
||
|
20
|
20
234061600 Washer-flat din.125a-a2 |
234061600 |
US $10.25 |
||
|
21
|
21
269500408 Sangle *strap |
269500408 |
US $14.67 |
||
