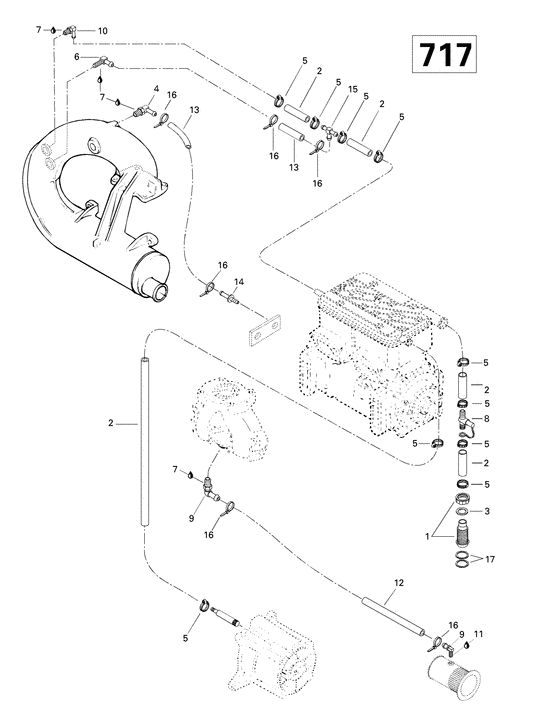

01- cooling system (717) Diagram Bombardier SP/SPI
- Year
- 1997
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
293710043
Raccord *fitting
SP 5879.; |
293710043 |
— | ||
|
2
|
2
276000001
Boyau 12.5mm. *hose-12.5mm.
SP 5879.; |
276000001 |
— | ||
| replacement | |||||
|
2
|
2
296000303
BOYAU 12.5MM. *HOSE 12.5MM.
SP 5879.; |
296000303 |
— | ||
|
3
|
3
293050003
Rondelle *washer
SP 5879.; |
293050003 |
— | ||
|
4
|
4
293710018
Raccord coude90*fitting-elbow
SP 5879.; |
293710018 |
— | ||
|
5
|
5
293650037
Bride serrage *clamp-tridon
SP 5879.; |
293650037 |
— | ||
| replacement | |||||
|
5
|
5
293650172 Bride serrage *hose clampSP 5879.; |
293650172 |
US $20.50 |
||
|
6
|
6
293700022 Raccord coude90*fitting-elbowSP 5879.; |
293700022 |
US $17.49 |
||
|
7
|
7
293800013 Scellant tuyau *sealant-pipeSP 5879.; |
293800013 |
US $106.05 |
||
|
8
|
8
295000103 Raccord en t *fitting-tSP 5879.; |
295000103 |
US $15.27 |
||
|
9
|
9
293700016
Raccord coude90*fitting-elbow
SP 5879.; |
293700016 |
— | ||
|
10
|
10
293700023 Raccord coude90*fitting-elbowSP 5879.; |
293700023 |
US $21.42 |
||
|
11
|
11
293800018 Scellant tuyau *sealant-pipeSP 5879.; |
293800018 |
US $38.71 |
||
|
12
|
12
275000007
Boyau 8mm. *hose-8mm.
SP 5879.; |
275000007 |
— | ||
|
13
|
13
276000048 Boyau 6mm. *hose-6mm.SP 5879.; |
276000048 |
US $121.95 |
||
|
14
|
14
291000306 Raccord purge *fitting-bleedSP 5879.; |
291000306 |
US $8.13 |
||
|
15
|
15
293710052
Raccord en t *fitting-t
SP 5879.; |
293710052 |
— | ||
|
16
|
16
293750001 Tie rap 94mm *tie-rap 94mmSP 5879.; |
293750001 |
US $66.50 |
||
|
17
|
17
293250028 Joint etanche *gasketSP 5879.; |
293250028 |
US $6.21 |
||
