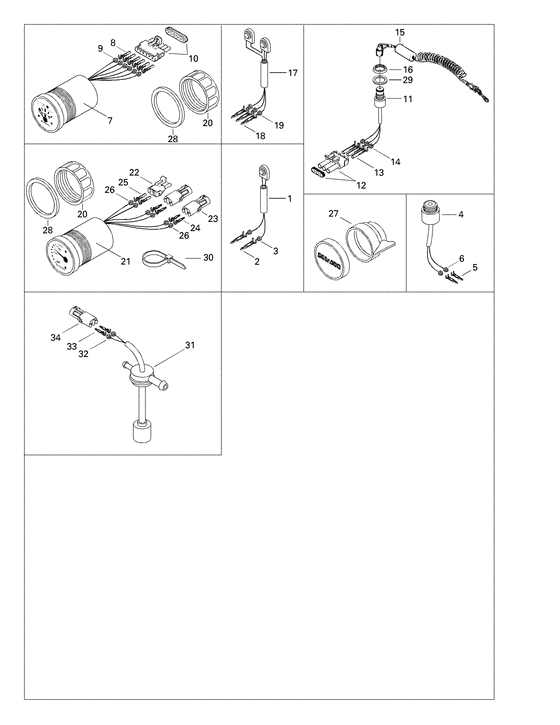

10- electrical accessories Diagram Bombardier SP/SPI
- Year
- 1997
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
278000427 Inter.allumage *switch-ignit.Includes 1 - 3.; |
278000427 |
US $124.41 |
||
|
2
|
2
278000222 Cosse male *terminal-male |
278000222 |
US $21.15 |
||
|
3
|
3
278000218 Joint de fil *seal-wire |
278000218 |
US $58.70 |
||
|
4
|
4
278000881
Avertisseur ass*buzzer-assy.
Includes 4 - 6.; |
278000881 |
— | ||
| replacement | |||||
|
4
|
4
278001586
Avertisseur *buzzer
Includes 4 - 6.; |
278001586 |
— | ||
|
5
|
5
278000222 Cosse male *terminal-male |
278000222 |
US $21.15 |
||
|
6
|
6
278000218 Joint de fil *seal-wire |
278000218 |
US $58.70 |
||
|
7
|
7
278000496
Cadran huil/ess*gauge-oil/fuel
Includes 7 - 10. SPX 5661/5834.; |
278000496 |
— | ||
| replacement | |||||
|
7
|
7
278001338
Cadran huil/ess*gauge-oil/fuel
Includes 7 - 10. SPX 5661/5834.; |
278001338 |
— | ||
|
8
|
8
278000223 Cosse femelle *terminal-femalSPX 5661/5834.; |
278000223 |
US $21.15 |
||
|
9
|
9
278000218 Joint de fil *seal-wireSPX 5661/5834.; |
278000218 |
US $58.70 |
||
|
10
|
10
278000221 Bloc 6 circ.mal*housing-tabSPX 5661/5834.; |
278000221 |
US $17.29 |
||
|
11
|
11
278000830
Inter.urgence *switch-safety
Includes 11 - 14.; |
278000830 |
— | ||
| replacement | |||||
|
11
|
11
278001734
Inter.urgence *switch-safety
Includes 11 - 14.; |
278001734 |
— | ||
|
12
|
12
278000273 Bloc 3 circ.mal*housing-tab |
278000273 |
US $10.85 |
||
|
13
|
13
278000223 Cosse femelle *terminal-femal |
278000223 |
US $21.15 |
||
|
14
|
14
278000218 Joint de fil *seal-wire |
278000218 |
US $58.70 |
||
|
15
|
15
295500444
Ens.cordon sec.*safety lanyard kit
|
295500444 |
— | ||
| replacement | |||||
|
15
|
15
278002199 Cordon securite*lanyard-safety |
278002199 |
US $93.60 |
||
|
16
|
16
278000508
Ecrou securite *nut-saf.switch
|
278000508 |
— | ||
|
17
|
17
278000447
Inter.vts.ass. *switch-vts.ass
Includes 17 - 19. SPX 5661/5834.; |
278000447 |
— | ||
| replacement | |||||
|
17
|
17
278001354
Inter.vts.ass. *switch-vts.ass
Includes 17 - 19. SPX 5661/5834.; |
278001354 |
— | ||
|
18
|
18
278000222 Cosse male *terminal-maleSPX 5661/5834.; |
278000222 |
US $21.15 |
||
|
19
|
19
278000218 Joint de fil *seal-wireSPX 5661/5834.; |
278000218 |
US $58.70 |
||
|
20
|
20
278000085
Ecrou de cadran*nut-gauge
SPX 5661/5834.; |
278000085 |
— | ||
|
21
|
21
278000451
Cadran vts *gauge-vts
Includes 21 - 26. SPX 5661/5834.; |
278000451 |
— | ||
| replacement | |||||
|
21
|
21
278001339
Cadran vts *gauge-vts
Includes 21 - 26. SPX 5661/5834.; |
278001339 |
— | ||
|
22
|
22
278000220 Bloc 2 circ.mal*housing-tab(m)SPX 5661/5834.; |
278000220 |
US $15.74 |
||
|
23
|
23
278000217 Bloc 2 circ.fem*housing-tab(f)SPX 5661/5834.; |
278000217 |
US $54.25 |
||
|
24
|
24
278000222 Cosse male *terminal-maleSPX 5661/5834.; |
278000222 |
US $21.15 |
||
|
25
|
25
278000223 Cosse femelle *terminal-femalSPX 5661/5834.; |
278000223 |
US $21.15 |
||
|
26
|
26
278000218 Joint de fil *seal-wireSPX 5661/5834.; |
278000218 |
US $58.70 |
||
|
27
|
27
293720005
Support jauge *support-gauge
SP 5879.; |
293720005 |
— | ||
|
28
|
28
278000259 Joint etanche *gasketSPX 5661/5834.; |
278000259 |
US $29.15 |
||
|
29
|
29
211200027 Rondelle *washer |
211200027 |
US $42.40 |
||
|
30
|
30
294000606
Tie rap 180mm *tie-rap 180mm
SPX 5661/5834.; |
294000606 |
— | ||
| replacement | |||||
|
30
|
30
414115200 Tie-rap 180 mmSPX 5661/5834.; |
414115200 |
US $7 |
||
|
31
|
31
278000478
Capteur huile *sensor-oil
Includes 31 - 34. SPX 5661/5834.; |
278000478 |
— | ||
| replacement | |||||
|
31
|
31
278001401 Capteur huile *sensor-oilIncludes 31 - 34. SPX 5661/5834.; |
278001401 |
US $146.85 |
||
|
32
|
32
278000218 Joint de fil *seal-wireSPX 5661/5834.; |
278000218 |
US $58.70 |
||
|
33
|
33
278000222 Cosse male *terminal-maleSPX 5661/5834.; |
278000222 |
US $21.15 |
||
|
34
|
34
278000217 Bloc 2 circ.fem*housing-tab(f)SPX 5661/5834.; |
278000217 |
US $54.25 |
||
