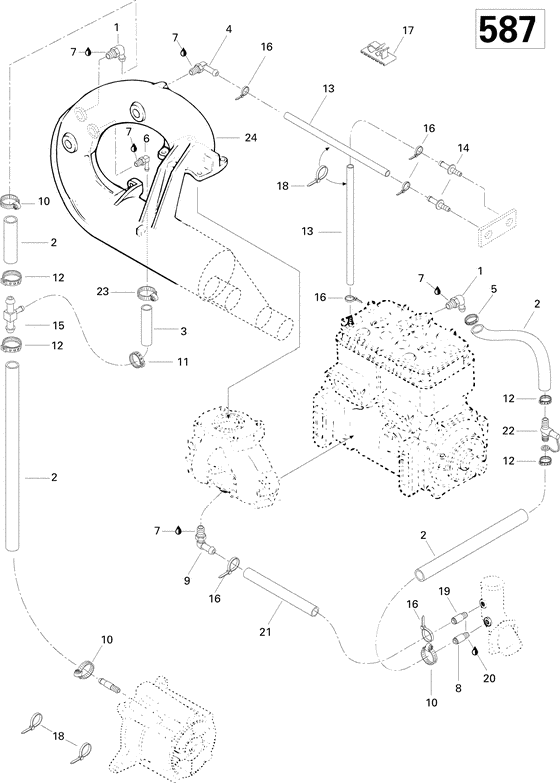

01- cooling system spi Diagram Bombardier SP/SPI
- Year
- 1996
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
293700023 Raccord coude90*fitting-elbow |
293700023 |
US $21.42 |
||
|
2
|
2
276000001
Boyau 12.5mm. *hose-12.5mm.
|
276000001 |
— | ||
| replacement | |||||
|
2
|
2
296000303
BOYAU 12.5MM. *HOSE 12.5MM.
|
296000303 |
— | ||
|
3
|
3
276000016
Boyau 8mm. *hose-8mm.
|
276000016 |
— | ||
|
4
|
4
293710018
Raccord coude90*fitting-elbow
|
293710018 |
— | ||
|
5
|
5
293650018
Bride serrage *clamp-clic
|
293650018 |
— | ||
|
6
|
6
293700022 Raccord coude90*fitting-elbow |
293700022 |
US $17.49 |
||
|
7
|
7
293800013 Scellant tuyau *sealant-pipe |
293800013 |
US $106.05 |
||
|
8
|
8
293710019
New Genuine Part
|
293710019 |
— | ||
|
9
|
9
293700016
Raccord coude90*fitting-elbow
|
293700016 |
— | ||
|
10
|
10
293650037
Bride serrage *clamp-tridon
|
293650037 |
— | ||
| replacement | |||||
|
10
|
10
293650172 Bride serrage *hose clamp |
293650172 |
US $20.50 |
||
|
11
|
11
293650030 Bride serrage *clamp-oetiker |
293650030 |
US $69.50 |
||
|
12
|
12
293650012 Bride serrage *clamp-oetiker |
293650012 |
US $46.65 |
||
|
13
|
13
275500018
Boyau 5.2mm *hose-5.2mm
|
275500018 |
— | ||
|
14
|
14
291000306 Raccord purge *fitting-bleed |
291000306 |
US $8.13 |
||
|
15
|
15
293710025
Raccord en t *fitting-t
|
293710025 |
— | ||
|
16
|
16
293750001 Tie rap 94mm *tie-rap 94mm |
293750001 |
US $66.50 |
||
|
17
|
17
293750005 Attache collier*tie-clamp |
293750005 |
US $38.85 |
||
|
18
|
18
293750001 Tie rap 94mm *tie-rap 94mm |
293750001 |
US $66.50 |
||
|
19
|
19
293710017 Raccord male *connector-male |
293710017 |
US $11.41 |
||
|
20
|
20
293800018 Scellant tuyau *sealant-pipe |
293800018 |
US $38.71 |
||
|
21
|
21
275000007
Boyau 8mm. *hose-8mm.
|
275000007 |
— | ||
|
22
|
22
295000103 Raccord en t *fitting-t |
295000103 |
US $15.27 |
||
|
23
|
23
293650027
Bride serrage *clamp-tridon
|
293650027 |
— | ||
| replacement | |||||
|
23
|
23
293650171 Bride serrage *hose clamp |
293650171 |
US $20.50 |
||
|
24
|
24
274000299
Tuyau echapp. *pipe-tuned
|
274000299 |
— | ||
| replacement | |||||
|
24
|
24
274001091
Tuy.col.peint *tune pipe p.
|
274001091 |
— | ||
