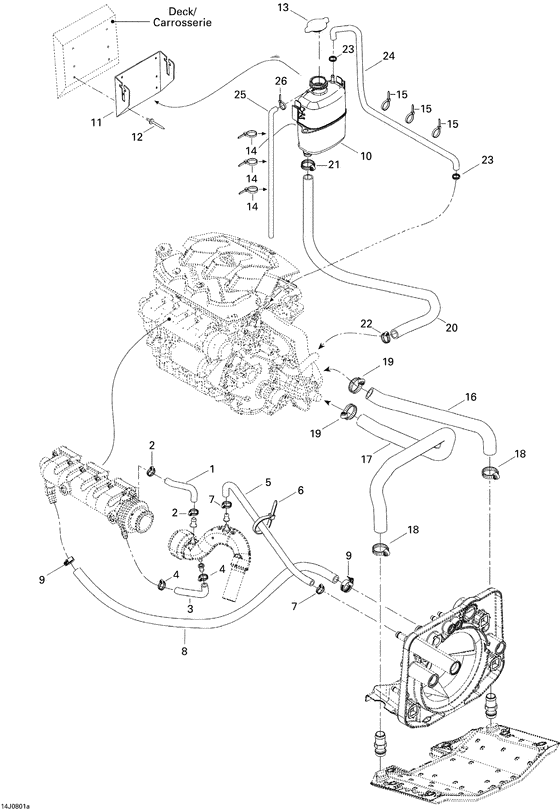

01- cooling system edition 1 Diagram Bombardier Speedster
- Year
- 2008
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
276000155
Boyau forme *hose-formed
|
276000155 |
— | ||
|
2
|
2
293650172 Bride serrage *hose clamp |
293650172 |
US $20.50 |
||
|
3
|
3
276000156 Boyau forme *hose-formed |
276000156 |
US $20.77 |
||
|
4
|
4
293650172 Bride serrage *hose clamp |
293650172 |
US $20.50 |
||
|
5
|
5
276000001
Boyau 12.5mm. *hose-12.5mm.
|
276000001 |
— | ||
| replacement | |||||
|
5
|
5
296000303
BOYAU 12.5MM. *HOSE 12.5MM.
|
296000303 |
— | ||
|
6
|
6
293750008 Tie rap 350mm *tie-rap 350mm |
293750008 |
US $13.40 |
||
|
7
|
7
293650172 Bride serrage *hose clamp |
293650172 |
US $20.50 |
||
|
8
|
8
276000099 Boyau 19.0mm. *hose-19.0mm. |
276000099 |
US $45.70 |
||
|
9
|
9
293650051 Bride serrage *clamp-tridon |
293650051 |
US $28.55 |
||
|
10
|
10
276000086 Res.antigel *tank-coolant |
276000086 |
US $131.63 |
||
|
11
|
11
204300211 Supp.reserv.*bracket-reservoir |
204300211 |
US $48.93 |
||
|
12
|
12
293150039 Rivet-pop 3/16 *rivet-pop 3/16 |
293150039 |
US $9.60 |
||
|
13
|
13
276000100 Bouchon rad. *pressure cap ass y |
276000100 |
US $28.25 |
||
|
14
|
14
293750002 Tie rap 142mm *tie-rap 142mm |
293750002 |
US $15.50 |
||
|
15
|
15
293750002 Tie rap 142mm *tie-rap 142mm |
293750002 |
US $15.50 |
||
|
16
|
16
276000153
Boyau droit *hose-right
|
276000153 |
— | ||
| replacement | |||||
|
16
|
16
276000248 RH RADIATOR HOSE |
276000248 |
US $62.39 |
||
|
17
|
17
276000154
Boyau gauche *lh.side hose
|
276000154 |
— | ||
| replacement | |||||
|
17
|
17
276000250 LH RADIATOR HOSE |
276000250 |
US $62.17 |
||
|
18
|
18
293650045 Bride serrage *clamp-tridon |
293650045 |
US $37.65 |
||
|
19
|
19
293650045 Bride serrage *clamp-tridon |
293650045 |
US $37.65 |
||
|
20
|
20
276000099 Boyau 19.0mm. *hose-19.0mm. |
276000099 |
US $45.70 |
||
|
21
|
21
293650051 Bride serrage *clamp-tridon |
293650051 |
US $28.55 |
||
|
22
|
22
293650019 Bride serrage *clamp-tridon |
293650019 |
US $37.65 |
||
|
23
|
23
293650025 Bride serrage *clamp-oetiker |
293650025 |
US $20.50 |
||
|
24
|
24
275500549 Boyau 1/4 *hose-1/4 |
275500549 |
US $190.60 |
||
|
25
|
25
415080200
Boyau polyure *polyurethane hose
|
415080200 |
— | ||
|
26
|
26
293750001 Tie rap 94mm *tie-rap 94mm |
293750001 |
US $66.50 |
||
