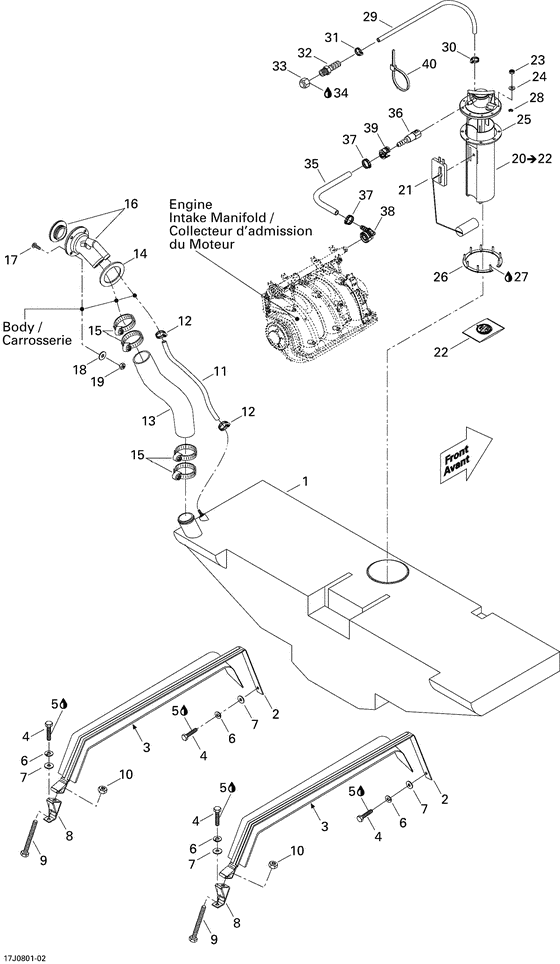

02- fuel system Diagram Bombardier Speedster
- Year
- 2008
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
204560393
Reservoir ess.*tank-fuel assy.
|
204560393 |
— | ||
|
2
|
2
204560181 Sangle res.ess.*strap-fuel tank |
204560181 |
US $32.54 |
||
|
3
|
3
204560185 Tampon protect.*pad-protector |
204560185 |
US $13.60 |
||
|
4
|
4
207183060 Screw-hex.cap din.933a2 |
207183060 |
US $10.20 |
||
|
5
|
5
293800005 Loctite 271 *loctite-271 |
293800005 |
US $31.18 |
||
|
6
|
6
234181601 Washer-lock helical din.127b-a2 |
234181601 |
US $7.10 |
||
|
7
|
7
234082600 Washer-flat din.9021b-a2 |
234082600 |
US $31.10 |
||
|
8
|
8
275500252 Attache reserv.*bracket-tank |
275500252 |
US $32.54 |
||
|
9
|
9
207183560 Screw-hex.cap din.933a2 |
207183560 |
US $16 |
||
|
10
|
10
232581600 Nut-stop elastic din.985a2 |
232581600 |
from US $2.39 |
||
|
11
|
11
204560358 Boyau 16mm. *hose-16mm. |
204560358 |
US $143.73 |
||
|
12
|
12
293650069 Bride serrage *clamp-norma |
293650069 |
US $13.60 |
||
|
13
|
13
204560377 Boyau remp.ext.*hose-fill neck/soft |
204560377 |
US $102.99 |
||
|
14
|
14
204560188 Espaceur *spacer |
204560188 |
US $13.60 |
||
|
15
|
15
293650174 Bride serrage *clamp-norma |
293650174 |
US $13.60 |
||
|
16
|
16
204560253
Rempliss.ess.*fill-fuel assy.
|
204560253 |
— | ||
|
17
|
17
208643560 Screw-pan hd.ph.din.7985a-a2 |
208643560 |
US $1.79 |
||
|
18
|
18
234040600 Washer-flat din.433a2 |
234040600 |
US $7.10 |
||
|
19
|
19
232541600 Nut-stop elastic din.985a2 |
232541600 |
US $7.40 |
||
|
20
|
20
204560259 Module essen.*module-fuel pumpIncludes 20 to 22; |
204560259 |
US $955.71 |
||
|
21
|
21
270600051 Levier capteur *lever-sensor |
270600051 |
US $140.42 |
||
|
22
|
22
219700368 Filtreur bosch *bosch filter |
219700368 |
from US $43.86 |
||
|
23
|
23
232551200 Nut-stop elastic din.985 |
232551200 |
US $19 |
||
|
24
|
24
234052400 Washer-flat din.7349 |
234052400 |
US $91.75 |
||
|
25
|
25
293250088 Joint etanche *gasket |
293250088 |
US $14.64 |
||
|
26
|
26
275500679 Anneau en c *c ring 9 stud |
275500679 |
US $84.81 |
||
|
27
|
27
293800038 Loctite 518 *loctite-518 |
293800038 |
US $51.97 |
||
|
28
|
28
293370002 Circlip-sstl.5mm.din.6799 |
293370002 |
US $71.10 |
||
|
29
|
29
204560178 Boyau *hose-1/4 |
204560178 |
US $50.38 |
||
|
30
|
30
293650170 Bride serrage *hose clamp |
293650170 |
US $27.20 |
||
|
31
|
31
293650121 Bride serrage *clamp-norma |
293650121 |
US $9.40 |
||
|
32
|
32
204560265 Coupleur *coupler-hose/pipe |
204560265 |
US $10.47 |
||
|
33
|
33
204560263 Capuch.tuyau*cap-pipe |
204560263 |
US $10.47 |
||
|
34
|
34
293800013 Scellant tuyau *sealant-pipe |
293800013 |
US $106.05 |
||
|
35
|
35
275500626 Boyau 5/16" *hose-5/16 |
275500626 |
US $48.72 |
||
|
36
|
36
275500428 Boitier connec.*connector-box |
275500428 |
US $13.75 |
||
|
37
|
37
204130212
Bride serrage *clamp-hose
|
204130212 |
— | ||
|
38
|
38
293710105 Raccord coude90*fitting-elbow |
293710105 |
US $14.14 |
||
|
39
|
39
275500429 Barette connec.*connector-stopper |
275500429 |
US $30.80 |
||
|
40
|
40
293750009 Tie rap 173mm *tie-rap 173mm |
293750009 |
US $6.70 |
