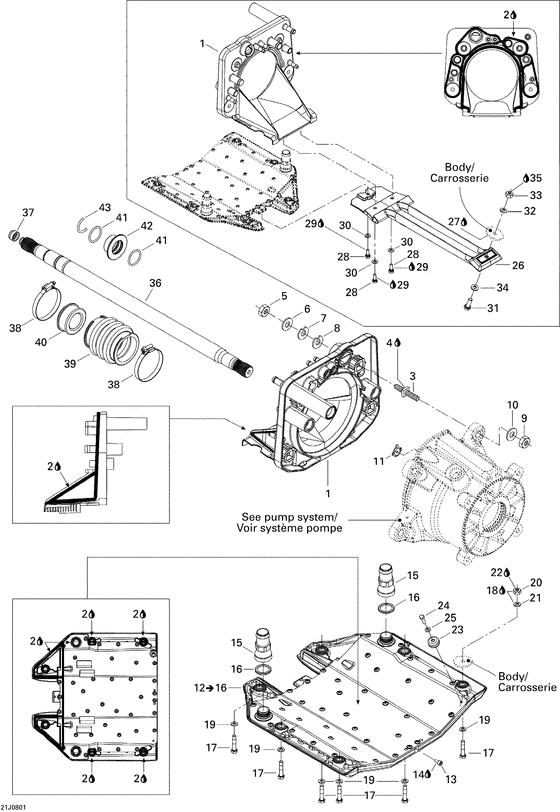

05- propulsion Diagram Bombardier Speedster
- Year
- 2008
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
204120314 Supp.pompe*support-pump/machined |
204120314 |
US $248.85 |
||
|
2
|
2
293800088
Instant gasket *instant gasket
|
293800088 |
— | ||
| replacement | |||||
|
2
|
2
219700363
Instant gasket *instant gasket
|
219700363 |
— | ||
|
3
|
3
250300022 Goujon carre *stud-square |
250300022 |
US $21.42 |
||
|
4
|
4
293800038 Loctite 518 *loctite-518 |
293800038 |
US $51.97 |
||
|
5
|
5
232501200 Nut-stop elastic din.985 |
232501200 |
US $13.72 |
||
|
6
|
6
234002600 Washer-flat din.9021b-a2 |
234002600 |
US $14.35 |
||
|
7
|
7
272000053 Cale epaisseur *shim |
272000053 |
US $54.75 |
||
|
8
|
8
204120067 Cale epaisseur *shim-0.9mm |
204120067 |
US $11.17 |
||
|
9
|
9
232501200 Nut-stop elastic din.985 |
232501200 |
US $13.72 |
||
|
10
|
10
211200051 Rondelle *washer-flat |
211200051 |
US $21.60 |
||
|
11
|
11
291001887 Reducteur *reducer |
291001887 |
US $15.73 |
||
|
12
|
12
271001557
Plaque *riding plate
Includes 12 to 16; |
271001557 |
— | ||
|
13
|
13
250500005 Plug-drain m6x12 din.912a2 ss-304 |
250500005 |
US $70.44 |
||
|
14
|
14
293800013 Scellant tuyau *sealant-pipe |
293800013 |
US $106.05 |
||
|
15
|
15
293710111 Raccord droit *fitting-strait |
293710111 |
US $7.09 |
||
|
16
|
16
293300121 Joint torique *o-ring |
293300121 |
US $9.74 |
||
|
17
|
17
207084060 Screw-hex.cap din.931a2 |
207084060 |
US $14.35 |
||
|
18
|
18
293800060 Loctite 243 *loctite-243 |
293800060 |
US $31.18 |
||
|
19
|
19
234081600 Washer-flat din.125a-a2 |
234081600 |
US $7.10 |
||
|
20
|
20
232581600 Nut-stop elastic din.985a2 |
232581600 |
from US $2.39 |
||
|
21
|
21
234082600 Washer-flat din.9021b-a2 |
234082600 |
US $31.10 |
||
|
22
|
22
293800086
Scell.silicone *seal-silicone
|
293800086 |
— | ||
|
23
|
23
271001487 Anode zinc *anode zinc |
271001487 |
US $13.21 |
||
|
24
|
24
207362060 Screw-hex.cap din.933a2 s.grip |
207362060 |
US $19 |
||
|
25
|
25
234061600 Washer-flat din.125a-a2 |
234061600 |
US $10.25 |
||
|
26
|
26
271001560
Grille pompe *grate-pump
|
271001560 |
— | ||
|
27
|
27
293800088
Instant gasket *instant gasket
|
293800088 |
— | ||
| replacement | |||||
|
27
|
27
219700363
Instant gasket *instant gasket
|
219700363 |
— | ||
|
28
|
28
207161660 Screw-hex.cap din.933a2 |
207161660 |
US $9.50 |
||
|
29
|
29
293800005 Loctite 271 *loctite-271 |
293800005 |
US $31.18 |
||
|
30
|
30
234061600 Washer-flat din.125a-a2 |
234061600 |
US $10.25 |
||
|
31
|
31
207184060 Screw-hex.cap din.933a2 |
207184060 |
US $14.35 |
||
|
32
|
32
234081600 Washer-flat din.125a-a2 |
234081600 |
US $7.10 |
||
|
33
|
33
232581600 Nut-stop elastic din.985a2 |
232581600 |
from US $2.39 |
||
|
34
|
34
234081600 Washer-flat din.125a-a2 |
234081600 |
US $7.10 |
||
|
35
|
35
293800086
Scell.silicone *seal-silicone
|
293800086 |
— | ||
|
36
|
36
271001534
Arbre transm. *drive shaft
|
271001534 |
— | ||
|
37
|
37
272000173 Bouchon *plug |
272000173 |
from US $9.57 |
||
|
38
|
38
293650077 Bride serrage *clamp-norma |
293650077 |
US $9.45 |
||
|
39
|
39
272000183 Soufflet *bellow |
272000183 |
US $31.18 |
||
|
40
|
40
272000177
Bague carbone *carbon ring
|
272000177 |
— | ||
|
41
|
41
293300044 Joint torique *o-ring |
293300044 |
US $13.60 |
||
|
42
|
42
272000176
Bague supp.flot*support ring
|
272000176 |
— | ||
| replacement | |||||
|
42
|
42
295501200 CARBON RING KIT |
295501200 |
US $87.74 |
||
|
43
|
43
272000175
Pince en "c" *clip "c
|
272000175 |
— | ||
