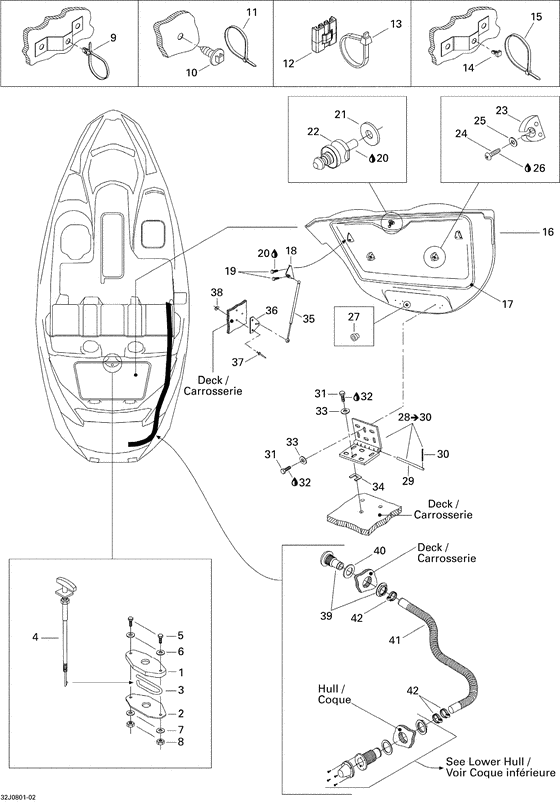

09- engine compartment and accessories Diagram Bombardier Speedster
- Year
- 2008
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
204070037 Base loquet *base-latch |
204070037 |
US $16.76 |
||
|
2
|
2
204070036 Couv.loquet *cover-latch |
204070036 |
US $20.96 |
||
|
3
|
3
204070038 Ressort *spring |
204070038 |
US $73.35 |
||
|
4
|
4
204070081 Cable.loqu.mot.*cable-latch |
204070081 |
US $125.41 |
||
|
5
|
5
207163560 Screw-hex.cap din.933a2 |
207163560 |
US $19.20 |
||
|
6
|
6
234061600 Washer-flat din.125a-a2 |
234061600 |
US $10.25 |
||
|
7
|
7
234062600 Washer-flat din.9021b-a2 |
234062600 |
US $10 |
||
|
8
|
8
232561600 Nut-stop elastic din.985-a2 |
232561600 |
US $7.40 |
||
|
9
|
9
204130098 Tie rap / dard*tie rap w/dart |
204130098 |
US $208 |
||
|
10
|
10
293730040 Dard d ancrage *dart-mount |
293730040 |
US $1.34 |
||
|
11
|
11
414115200 Tie-rap 180 mm |
414115200 |
US $7 |
||
|
12
|
12
293750025 Ancrage tie rap*mount-tie rap |
293750025 |
US $7.65 |
||
|
13
|
13
293750002 Tie rap 142mm *tie-rap 142mm |
293750002 |
US $15.50 |
||
|
14
|
14
204130099 Dard noir *dart-black |
204130099 |
US $33.52 |
||
|
15
|
15
414115200 Tie-rap 180 mm |
414115200 |
US $7 |
||
|
16
|
16
204073205
Couv.moteur*cover-engine
Yellow Model; |
204073205 |
— | ||
|
16
|
16
204073204
Couv.moteur*cover-engine
Red Model; |
204073204 |
— | ||
|
17
|
17
293200093 Anneau neoprene*neoprene seal |
293200093 |
US $183.44 |
||
|
18
|
18
204073074 Supp.amort.*bracket-shock/rework |
204073074 |
US $22.02 |
||
|
19
|
19
207141660 Screw-hex.cap din.933a2 |
207141660 |
US $9.50 |
||
|
20
|
20
293800060 Loctite 243 *loctite-243 |
293800060 |
US $31.18 |
||
|
21
|
21
291000628 Rondelle caout.*washer-rubber |
291000628 |
US $11.15 |
||
|
22
|
22
204130146 Ergot d ancr.*stud-latch |
204130146 |
US $161.87 |
||
|
23
|
23
291000642 Support de tige*support-pole |
291000642 |
US $66.06 |
||
|
24
|
24
208642560 Screw-pan hd.ph.din.7985a-a2 |
208642560 |
US $9.80 |
||
|
25
|
25
234040600 Washer-flat din.433a2 |
234040600 |
US $7.10 |
||
|
26
|
26
293800060 Loctite 243 *loctite-243 |
293800060 |
US $31.18 |
||
|
27
|
27
293720017 Passe-fils *grommet |
293720017 |
US $10.47 |
||
|
28
|
28
204070127 Charniere *hingeIncludes 28 to 30; |
204070127 |
US $68.29 |
||
|
29
|
29
204070204 Tige charniere *hinge-rod |
204070204 |
US $13.53 |
||
|
30
|
30
204070205 Goupille fendue*pin-cotter |
204070205 |
US $17.75 |
||
|
31
|
31
207162560 Screw-hex.cap din.933a2 |
207162560 |
US $9.50 |
||
|
32
|
32
293800060 Loctite 243 *loctite-243 |
293800060 |
US $31.18 |
||
|
33
|
33
234061600 Washer-flat din.125a-a2 |
234061600 |
US $10.25 |
||
|
34
|
34
204070047 Espaceur 3.2mm *spacer-3.2mm |
204070047 |
US $17.82 |
||
|
35
|
35
204071920 Amortisseur*shock-gas |
204071920 |
US $162.15 |
||
|
36
|
36
204073065 Supp.amort.*bracket-shock/flat |
204073065 |
US $23.43 |
||
|
37
|
37
204130014 Rivet-pop 3/16 *rivet-pop 3/16 |
204130014 |
US $10.95 |
||
|
38
|
38
234051600 Washer-flat din.125a-a2 |
234051600 |
US $10 |
||
|
39
|
39
293710060 Raccord *fitting |
293710060 |
US $23.07 |
||
|
40
|
40
293250039
Joint etanche *gasket
|
293250039 |
— | ||
|
41
|
41
204070560 Boyau bilgeflex*hose-bilgeflex |
204070560 |
US $11.66 |
||
|
42
|
42
293650074 Bride serrage *clamp-norma |
293650074 |
US $14.67 |
