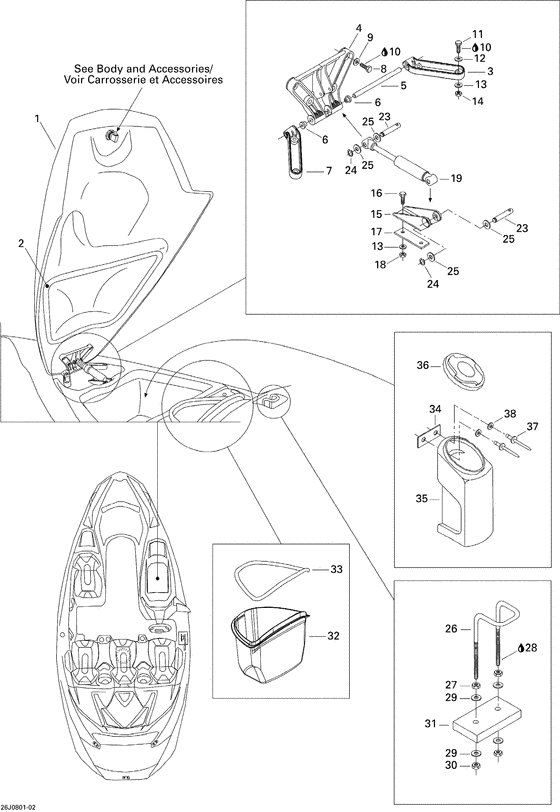

09- storage compartment, front Diagram Bombardier Speedster
- Year
- 2008
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
204620340
Couv.bagage*cover-storage assy.
Yellow Model; |
204620340 |
— | ||
|
1
|
1
204620338
Couv.bagage*cover-storage assy.
Red Model; |
204620338 |
— | ||
|
2
|
2
293200020
Anneau etanche *seal-tray
|
293200020 |
— | ||
|
3
|
3
269700022111 Charniere dr. *hinge-rh. |
269700022111 |
US $41.77 |
||
|
4
|
4
269700038 Charniere couv.*hinge-cover |
269700038 |
US $91.58 |
||
|
5
|
5
269700024 Axe rotation *axle |
269700024 |
US $10.47 |
||
|
6
|
6
293350016 Coussinet *cushion |
293350016 |
US $27.20 |
||
|
7
|
7
269700023111 Charniere ga. *hinge-lh. |
269700023111 |
US $41.77 |
||
|
8
|
8
207162560 Screw-hex.cap din.933a2 |
207162560 |
US $9.50 |
||
|
9
|
9
234061600 Washer-flat din.125a-a2 |
234061600 |
US $10.25 |
||
|
10
|
10
293800060 Loctite 243 *loctite-243 |
293800060 |
US $31.18 |
||
|
11
|
11
207063560 Screw-hex.cap din.931a2 |
207063560 |
US $14.35 |
||
|
12
|
12
234061600 Washer-flat din.125a-a2 |
234061600 |
US $10.25 |
||
|
13
|
13
234062600 Washer-flat din.9021b-a2 |
234062600 |
US $10 |
||
|
14
|
14
232561600 Nut-stop elastic din.985-a2 |
232561600 |
US $7.40 |
||
|
15
|
15
291000855 Supp.amortis. *support-shock |
291000855 |
US $27.29 |
||
|
16
|
16
207162560 Screw-hex.cap din.933a2 |
207162560 |
US $9.50 |
||
|
17
|
17
291000079 Plaque renfort *plate-reinf. |
291000079 |
US $14.67 |
||
|
18
|
18
232561600 Nut-stop elastic din.985-a2 |
232561600 |
US $7.40 |
||
|
19
|
19
204620322
Amortiss.gaz *shock-gas
|
204620322 |
— | ||
| replacement | |||||
|
19
|
19
269501993 SHOCK-GAS |
269501993 |
US $63.36 |
||
|
23
|
23
211400006 Pin short |
211400006 |
US $9.95 |
||
|
24
|
24
293370008 Circlip *circlip |
293370008 |
US $83.80 |
||
|
25
|
25
234081600 Washer-flat din.125a-a2 |
234081600 |
US $7.10 |
||
|
26
|
26
204620326 Crochet *hook-latch |
204620326 |
US $36.72 |
||
|
27
|
27
232061600 Nut-hexagonal din.934a2 |
232061600 |
US $7.40 |
||
|
28
|
28
293800060 Loctite 243 *loctite-243 |
293800060 |
US $31.18 |
||
|
29
|
29
234062600 Washer-flat din.9021b-a2 |
234062600 |
US $10 |
||
|
30
|
30
232561600 Nut-stop elastic din.985-a2 |
232561600 |
US $7.40 |
||
|
31
|
31
204620270 Plaque renf.*plate-reinforcement |
204620270 |
US $23.07 |
||
|
32
|
32
269501121 Coffre a gant *box-gloves |
269501121 |
US $23.41 |
||
|
33
|
33
204130049 Anneau neopr.*seal-neoprene |
204130049 |
US $32.54 |
||
|
34
|
34
293250037 Joint etanche *gasket |
293250037 |
US $31.30 |
||
|
35
|
35
269500606 Boitier extinct*housing-exting |
269500606 |
US $29.38 |
||
|
36
|
36
269500603
Cap extincteur *cap-extinguish
|
269500603 |
— | ||
|
37
|
37
293150011 Rivet-pop 3/16 *rivet-pop 3/16 |
293150011 |
US $9.40 |
||
|
38
|
38
234052600 Washer-flat din.9021b-a2 |
234052600 |
from US $1.32 |
||
