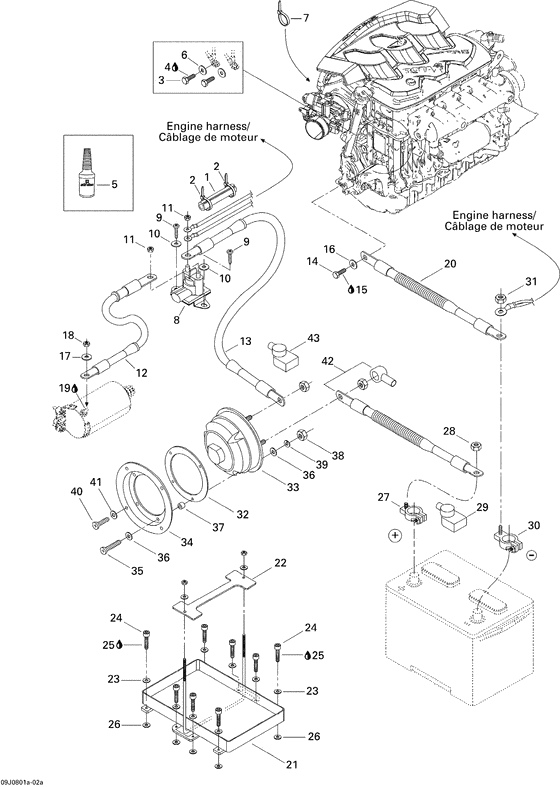

10- electrical system edition 1 Diagram Bombardier Speedster
- Year
- 2008
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
204471077 Conduit fente*conduit-slit |
204471077 |
US $10.47 |
||
|
2
|
2
293750002 Tie rap 142mm *tie-rap 142mm |
293750002 |
US $15.50 |
||
|
3
|
3
207361260 Screw-hex.cap din.933a2 s.grip |
207361260 |
US $18.75 |
||
|
5
|
5
293550004 Graisse dielect*grease-dielect dc4 |
293550004 |
US $59.94 |
||
|
6
|
6
234061600 Washer-flat din.125a-a2 |
234061600 |
US $10.25 |
||
|
7
|
7
414115200 Tie-rap 180 mm |
414115200 |
US $7 |
||
|
8
|
8
278001802
Relais demareur*starter relay
|
278001802 |
— | ||
|
9
|
9
204100073 Screw-pan hd.#10 x 5/8" ss |
204100073 |
US $1.96 |
||
|
10
|
10
204100059 Rondelle-plate *washer-flat |
204100059 |
US $9.80 |
||
|
11
|
11
232561600 Nut-stop elastic din.985-a2 |
232561600 |
US $7.40 |
||
|
12
|
12
204470798 Cable rouge*cable-red |
204470798 |
US $73.41 |
||
|
13
|
13
204470799 Cable rouge*cable-red |
204470799 |
US $58.09 |
||
|
14
|
14
207361260 Screw-hex.cap din.933a2 s.grip |
207361260 |
US $18.75 |
||
|
16
|
16
234062600 Washer-flat din.9021b-a2 |
234062600 |
US $10 |
||
|
17
|
17
234061600 Washer-flat din.125a-a2 |
234061600 |
US $10.25 |
||
|
18
|
18
232561600 Nut-stop elastic din.985-a2 |
232561600 |
US $7.40 |
||
|
20
|
20
204470199 Cable masse *cable-ground |
204470199 |
US $43.81 |
||
|
21
|
21
204471008 Support batt.*support-battery |
204471008 |
US $46.89 |
||
|
22
|
22
204471290 Top-supp.batt.*top-battery support |
204471290 |
US $30.41 |
||
|
23
|
23
204100069 Washer-flat .25 id x .56 od-ss |
204100069 |
US $1.79 |
||
|
24
|
24
205062560 Screw-socket hd.din.912a2 |
205062560 |
US $21.90 |
||
|
25
|
25
293800060 Loctite 243 *loctite-243 |
293800060 |
US $31.18 |
||
|
26
|
26
211200029 Washer-flat plastic |
211200029 |
US $9.80 |
||
|
27
|
27
204470349 Borne batt.pos.*pole-batt.pos. |
204470349 |
US $17.82 |
||
|
28
|
28
211100063 Nut-hex.3/8-16 |
211100063 |
US $50.25 |
||
|
29
|
29
204470269 Embout-rouge *boot-red |
204470269 |
US $18.85 |
||
|
30
|
30
204470348 Borne batt.neg.*pole-batt.neg. |
204470348 |
US $17.82 |
||
|
31
|
31
204100052 Nut-hex. 5/16-18 ss-304 |
204100052 |
US $10.70 |
||
|
32
|
32
204470813 Adapt.interr.*adaptor-switch |
204470813 |
US $14.67 |
||
|
33
|
33
204470814 Inter.batter.*switch-battery |
204470814 |
US $71.35 |
||
|
34
|
34
204470259 Support-inter. *support-switch |
204470259 |
US $36.72 |
||
|
35
|
35
205455060 Screw-socket bn.hd.iso.7380a2 |
205455060 |
US $7.66 |
||
|
36
|
36
234051600 Washer-flat din.125a-a2 |
234051600 |
US $10 |
||
|
37
|
37
204470330 Entretoise *spacer-nylon |
204470330 |
US $242.75 |
||
|
38
|
38
232051600 Nut-hexagonal din.934a2 |
232051600 |
US $7.40 |
||
|
39
|
39
234151601 Washer-lock helical din.127b-a2 |
234151601 |
US $9.80 |
||
|
40
|
40
209642560 Screw-tapp.pan hd.ph.din.7981c-a2 |
209642560 |
US $9.80 |
||
|
41
|
41
234041600 Washer-flat din.125a-a2 |
234041600 |
US $7.40 |
||
|
42
|
42
204470250 Cable positif *cable-pos.switch |
204470250 |
US $43.81 |
||
|
43
|
43
204470269 Embout-rouge *boot-red |
204470269 |
US $18.85 |
