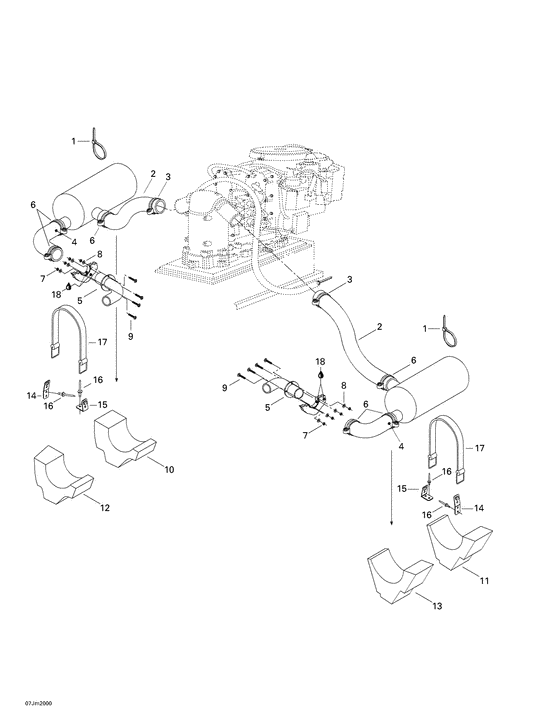

01- exhaust system Diagram Bombardier Speedster
- Year
- 2000
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
293750020 Tie rap 838mm *tie-rap 838mm |
293750020 |
US $4.32 |
||
|
2
|
2
204340216
Echapp.flexib. *exhaust-flexible
|
204340216 |
— | ||
| replacement | |||||
|
2
|
2
204340294 Echapp.flexib. *exhaust-flexible |
204340294 |
US $90.73 |
||
|
3
|
3
293650064 Bride serrage *clamp-tridon |
293650064 |
US $10.47 |
||
|
4
|
4
204340226
Boyau echapp. *hose-exhaust
|
204340226 |
— | ||
|
5
|
5
204340249
Sortie echapp. *outlet-exh.assy/3
|
204340249 |
— | ||
|
6
|
6
293650112 Bride serrage *clamp-tridon |
293650112 |
US $14.52 |
||
|
7
|
7
232561600 Nut-stop elastic din.985-a2 |
232561600 |
US $7.40 |
||
|
8
|
8
234062600 Washer-flat din.9021b-a2 |
234062600 |
US $10 |
||
|
9
|
9
208663560 Screw-pan hd.ph.din.7985a-a2 |
208663560 |
US $15.80 |
||
|
10
|
10
204340237
Support silenc.*support-muffler
|
204340237 |
— | ||
|
11
|
11
204340199
Support silenc.*support-muffler
|
204340199 |
— | ||
|
12
|
12
204340238
Support silenc.*support-muffler
|
204340238 |
— | ||
|
13
|
13
204340200
Support silenc.*support-muffler
|
204340200 |
— | ||
|
14
|
14
293850024 Pince courroie *clip-strap |
293850024 |
US $157.30 |
||
|
15
|
15
204060017
Pince courroie *clip-strap
|
204060017 |
— | ||
|
16
|
16
293150011 Rivet-pop 3/16 *rivet-pop 3/16 |
293150011 |
US $9.40 |
||
|
17
|
17
293850022 Sangle res.huil*strap-oil tank |
293850022 |
US $41.23 |
||
|
18
|
18
293800033
Scell.silicone *seal-silicone
|
293800033 |
— | ||
| replacement | |||||
|
18
|
18
293800086
Scell.silicone *seal-silicone
|
293800086 |
— | ||
