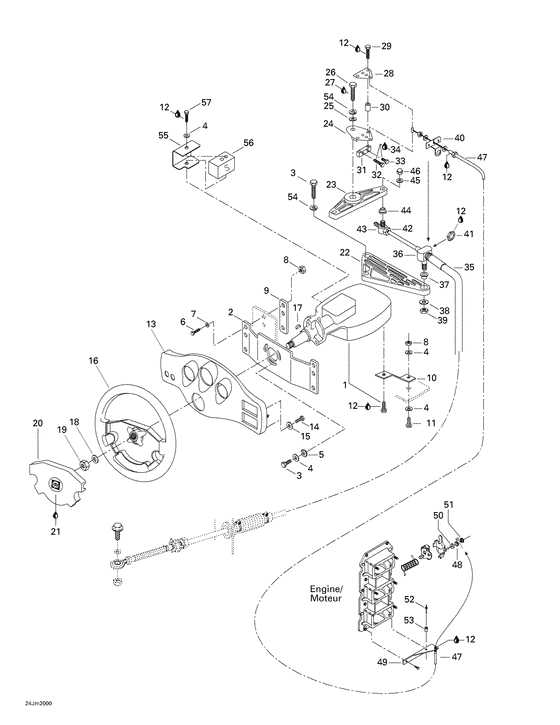

07- steering system Diagram Bombardier Speedster
- Year
- 2000
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
204390244 Gouvernail ass.*helm-assy. |
204390244 |
US $320.25 |
||
|
2
|
2
204390247
Supp.conduite *support-steering
|
204390247 |
— | ||
|
3
|
3
211000050 Screw-hex.s.grip #2353 yellow |
211000050 |
US $10.65 |
||
|
4
|
4
234062600 Washer-flat din.9021b-a2 |
234062600 |
US $10 |
||
|
5
|
5
234481608 Washer-lock serrated din.6798a-a2 |
234481608 |
US $14.80 |
||
|
6
|
6
207163060 Screw-hex.cap din.933a2 |
207163060 |
US $19.20 |
||
|
7
|
7
234061600 Washer-flat din.125a-a2 |
234061600 |
US $10.25 |
||
|
8
|
8
232561600 Nut-stop elastic din.985-a2 |
232561600 |
US $7.40 |
||
|
9
|
9
204390130
Plaque renfort *plate-reinf.
|
204390130 |
— | ||
|
10
|
10
204390243
Supp.conduite *support-steering
|
204390243 |
— | ||
|
11
|
11
208662560 Screw-pan hd.ph.din.7985a-a2 |
208662560 |
US $19.45 |
||
|
12
|
12
293800060 Loctite 243 *loctite-243 |
293800060 |
US $31.18 |
||
|
13
|
13
204390209
Fascia *fascia
|
204390209 |
— | ||
|
14
|
14
241142560 Screw-pt.hex.flange k40 x 25 |
241142560 |
from US $2.54 |
||
|
15
|
15
234042600 Washer-flat din.9021b-a2 |
234042600 |
US $7.40 |
||
|
16
|
16
204390075
Volant direct. *steering-black
|
204390075 |
— | ||
| replacement | |||||
|
16
|
16
204390440 Volant direct.*wheel-steering/blk. |
204390440 |
US $135.63 |
||
|
17
|
17
277000384 Clavette *key-woodruff |
277000384 |
US $9.40 |
||
|
18
|
18
211200006 Washer-flat stlss 1/2 |
211200006 |
US $14.70 |
||
|
19
|
19
211100021 Nut-locking |
211100021 |
US $10.65 |
||
|
20
|
20
204390076
Centre volant *center-steering
|
204390076 |
— | ||
|
21
|
21
413705800 Loctite 414 *loctite-414 |
413705800 |
US $33.61 |
||
|
22
|
22
204390125
Support cable *support-cable
|
204390125 |
— | ||
|
23
|
23
204390250 Bras gouvernail*arm-helm |
204390250 |
US $39.73 |
||
|
24
|
24
204390231
Att.inf.cable *clip-lower
|
204390231 |
— | ||
|
25
|
25
204390057
Entretoise *spacer
|
204390057 |
— | ||
|
26
|
26
211000054 Screw-hex.s.grip #2353 yellow |
211000054 |
US $7 |
||
|
27
|
27
293800005 Loctite 271 *loctite-271 |
293800005 |
US $31.18 |
||
|
28
|
28
204390037
Att.sup.cable *clip-upper
|
204390037 |
— | ||
| replacement | |||||
|
28
|
28
204390267 Att.sup.cable *clip-upper |
204390267 |
US $47.91 |
||
|
29
|
29
207162560 Screw-hex.cap din.933a2 |
207162560 |
US $9.50 |
||
|
30
|
30
277000584 Entretoise *spacer |
277000584 |
US $66.05 |
||
|
31
|
31
204390056
Bloc ajustement*block-adjustment
|
204390056 |
— | ||
|
32
|
32
207153560
Screw-hex.cap din.933a2
|
207153560 |
— | ||
|
33
|
33
207152560 Screw-hex.cap din.933a2 |
207152560 |
US $10.65 |
||
|
35
|
35
204390212 Cable direct. *cable-steering |
204390212 |
US $234.57 |
||
|
36
|
36
277000461 Pivot 3/8 *pivot-3/8 |
277000461 |
US $41.77 |
||
|
37
|
37
293350014 Douille epaul. *flange bushing |
293350014 |
US $12.58 |
||
|
38
|
38
234001600 Washer-flat din.125a-a2 |
234001600 |
US $7.40 |
||
|
39
|
39
211100024 Nut-locking |
211100024 |
US $31.05 |
||
|
40
|
40
204390232
Support cable *support-cable
|
204390232 |
— | ||
|
41
|
41
204390053 Nut-hex.jam |
204390053 |
US $13.12 |
||
|
42
|
42
277000439 Ecrou 5/16-24 *nut-5/16-24 |
277000439 |
US $40.65 |
||
|
43
|
43
277000456 Pivot teleflex *pivot-teleflex |
277000456 |
US $23.07 |
||
|
44
|
44
293350012 Douille *bushing |
293350012 |
US $12.85 |
||
|
45
|
45
211200019 Washer-flat 1/4 ss-316 |
211200019 |
US $9.80 |
||
|
46
|
46
212000005 Nut-stop elastic ms-17830 |
212000005 |
US $9.80 |
||
|
47
|
47
204390237
Cable controle *cable-l.s.c.
|
204390237 |
— | ||
|
48
|
48
204390180
Anneau retenue *ring-retaining
|
204390180 |
— | ||
|
49
|
49
204390181
Support cable *support-cable/lsc
|
204390181 |
— | ||
|
50
|
50
204390182
Attache cable *attach-cable/lsc
|
204390182 |
— | ||
| replacement | |||||
|
50
|
50
204390268 Attache cable *attach-cable/lsc |
204390268 |
US $86.67 |
||
|
51
|
51
204390183
Couvre cable *cover-cable/lsc
|
204390183 |
— | ||
| replacement | |||||
|
51
|
51
204390269 Couvre cable *cover-cable/lsc |
204390269 |
US $60.13 |
||
|
52
|
52
293150006 Rivet-pop 1/8 *rivet-pop 1/8 |
293150006 |
US $4.10 |
||
|
53
|
53
204390255
Butee caout. *stopper-rubber
|
204390255 |
— | ||
|
54
|
54
211200025 Rondelle frein *washer-lock 1/4 |
211200025 |
US $8.40 |
||
|
55
|
55
204390245
Sup.butee gouv.*support-helm bumper
|
204390245 |
— | ||
|
56
|
56
204390246
Butee gouvern. *bumper-helm
|
204390246 |
— | ||
|
57
|
57
204100014 Screw-hex 1/4"-20 x 2 1/2" ss-304 |
204100014 |
US $14.20 |
||
