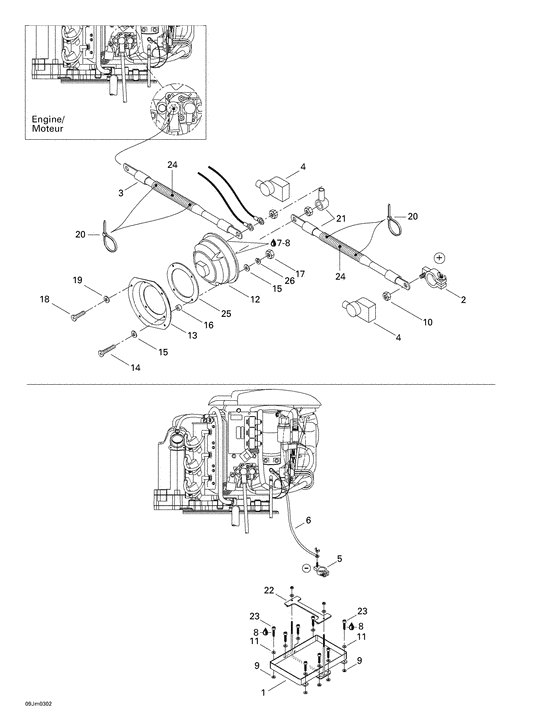

10- electrical system Diagram Bombardier Speedster
- Year
- 2003
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
204470341
Support de bat*battery support
|
204470341 |
— | ||
| replacement | |||||
|
1
|
1
204471008 Support batt.*support-battery |
204471008 |
US $46.89 |
||
|
2
|
2
204470349 Borne batt.pos.*pole-batt.pos. |
204470349 |
US $17.82 |
||
|
3
|
3
204470386
Cable rouge *cable-red #2
|
204470386 |
— | ||
|
4
|
4
204470388
Embout-rouge *boot-red #2
|
204470388 |
— | ||
|
5
|
5
204470348 Borne batt.neg.*pole-batt.neg. |
204470348 |
US $17.82 |
||
|
6
|
6
204470389
Cable masse dr.*cable-ground #2
|
204470389 |
— | ||
|
7
|
7
293550004 Graisse dielect*grease-dielect dc4 |
293550004 |
US $59.94 |
||
|
8
|
8
293800060 Loctite 243 *loctite-243 |
293800060 |
US $31.18 |
||
|
9
|
9
211200029 Washer-flat plastic |
211200029 |
US $9.80 |
||
|
10
|
10
211100063 Nut-hex.3/8-16 |
211100063 |
US $50.25 |
||
|
11
|
11
204100069 Washer-flat .25 id x .56 od-ss |
204100069 |
US $1.79 |
||
|
12
|
12
204470814 Inter.batter.*switch-battery |
204470814 |
US $71.35 |
||
|
13
|
13
204470251
Support-inter. *support-switch
|
204470251 |
— | ||
|
14
|
14
208455060
Vis cruciforme m5 x 25
|
208455060 |
— | ||
|
15
|
15
234051600 Washer-flat din.125a-a2 |
234051600 |
US $10 |
||
|
16
|
16
204470330 Entretoise *spacer-nylon |
204470330 |
US $242.75 |
||
|
17
|
17
232051600 Nut-hexagonal din.934a2 |
232051600 |
US $7.40 |
||
|
18
|
18
209642560 Screw-tapp.pan hd.ph.din.7981c-a2 |
209642560 |
US $9.80 |
||
|
19
|
19
234041600 Washer-flat din.125a-a2 |
234041600 |
US $7.40 |
||
|
20
|
20
293750001 Tie rap 94mm *tie-rap 94mm |
293750001 |
US $66.50 |
||
|
21
|
21
204470387
Cable positif *cable-pos.switch#2
|
204470387 |
— | ||
|
22
|
22
204470340
Top-batterie *top-battery
|
204470340 |
— | ||
| replacement | |||||
|
22
|
22
204470909
Top-supp.batt.*top-battery support
|
204470909 |
— | ||
|
23
|
23
205062560 Screw-socket hd.din.912a2 |
205062560 |
US $21.90 |
||
|
24
|
24
204550015 Enveloppe isol.*slit-conduit |
204550015 |
US $10.17 |
||
|
25
|
25
204470813 Adapt.interr.*adaptor-switch |
204470813 |
US $14.67 |
||
|
26
|
26
234151601 Washer-lock helical din.127b-a2 |
234151601 |
US $9.80 |
||
