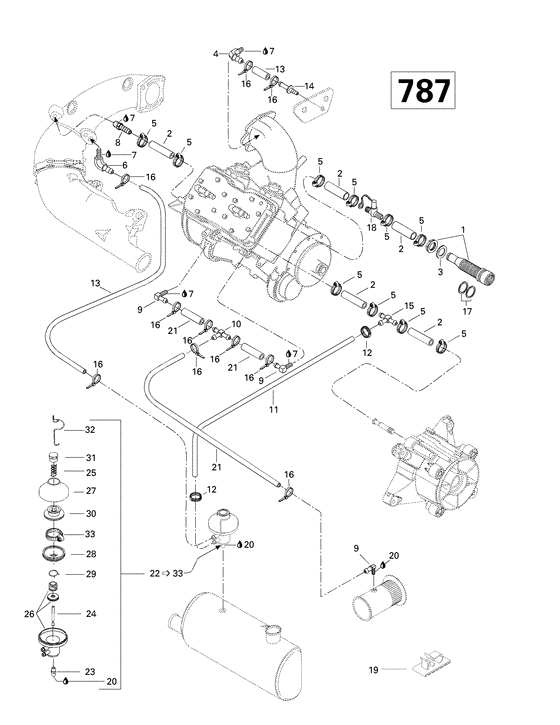

01- cooling system (787) Diagram Bombardier SPX
- Year
- 1997
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
293710043
Raccord *fitting
SPX 5661/5834.; |
293710043 |
— | ||
|
2
|
2
276000001
Boyau 12.5mm. *hose-12.5mm.
SPX 5661/5834.; |
276000001 |
— | ||
| replacement | |||||
|
2
|
2
296000303
BOYAU 12.5MM. *HOSE 12.5MM.
SPX 5661/5834.; |
296000303 |
— | ||
|
3
|
3
293050003
Rondelle *washer
SPX 5661/5834.; |
293050003 |
— | ||
|
4
|
4
293710018
Raccord coude90*fitting-elbow
SPX 5661/5834.; |
293710018 |
— | ||
|
5
|
5
293650037
Bride serrage *clamp-tridon
SPX 5661/5834.; |
293650037 |
— | ||
| replacement | |||||
|
5
|
5
293650172 Bride serrage *hose clampSPX 5661/5834.; |
293650172 |
US $20.50 |
||
|
6
|
6
293710048
Raccord coude90*fitting-elbow
SPX 5661/5834.; |
293710048 |
— | ||
|
7
|
7
293800013 Scellant tuyau *sealant-pipeSPX 5661/5834.; |
293800013 |
US $106.05 |
||
|
8
|
8
293710021 Raccord male *connector-maleSPX 5661/5834.; |
293710021 |
US $13.21 |
||
|
9
|
9
293700016
Raccord coude90*fitting-elbow
SPX 5661/5834.; |
293700016 |
— | ||
|
10
|
10
293710061 Raccord en t *fitting-tSPX 5661/5834.; |
293710061 |
US $12.19 |
||
|
11
|
11
275500139
Boyau 6mm. *hose-6mm.
SPX 5661/5834.; |
275500139 |
— | ||
|
12
|
12
293650042 Bride serrage *clamp-oetikerSPX 5661/5834.; |
293650042 |
US $20.50 |
||
|
13
|
13
276000048 Boyau 6mm. *hose-6mm.SPX 5661/5834.; |
276000048 |
US $121.95 |
||
|
14
|
14
291000306 Raccord purge *fitting-bleedSPX 5661/5834.; |
291000306 |
US $8.13 |
||
|
15
|
15
293710052
Raccord en t *fitting-t
SPX 5661/5834.; |
293710052 |
— | ||
|
16
|
16
293750001 Tie rap 94mm *tie-rap 94mmSPX 5661/5834.; |
293750001 |
US $66.50 |
||
|
17
|
17
293250028 Joint etanche *gasketSPX 5661/5834.; |
293250028 |
US $6.21 |
||
|
18
|
18
295000103 Raccord en t *fitting-tSPX 5661/5834.; |
295000103 |
US $15.27 |
||
|
19
|
19
293750005 Attache collier*tie-clampSPX 5661/5834.; |
293750005 |
US $38.85 |
||
|
20
|
20
293800018 Scellant tuyau *sealant-pipeSPX 5661/5834.; |
293800018 |
US $38.71 |
||
|
21
|
21
275000007
Boyau 8mm. *hose-8mm.
SPX 5661/5834.; |
275000007 |
— | ||
|
22
|
22
274000316
Regulateur pres*reg-pression
SPX 5661/5834.; |
274000316 |
— | ||
|
23
|
23
293700010 Raccord male *connector-maleSPX 5661/5834.; |
293700010 |
US $21.39 |
||
|
24
|
24
274000423 Tige de debit *rod-feedingSPX 5661/5834.; |
274000423 |
US $50.97 |
||
|
25
|
25
274000382
Ressort 44mm *spring-44mm
SPX 5661/5834.; |
274000382 |
— | ||
|
27
|
27
420911550
Couvercle soup.*cover-valve
SPX 5661/5834.; |
420911550 |
— | ||
| replacement | |||||
|
27
|
27
420911552 Couvercle soup.*cover-valveSPX 5661/5834.; |
420911552 |
US $42.87 |
||
|
28
|
28
420260721 Manchon *bellowsSPX 5661/5834.; |
420260721 |
US $57.51 |
||
|
29
|
29
420838190 Bride *clampSPX 5661/5834.; |
420838190 |
US $29.15 |
||
|
30
|
30
420253255
Soupape echapp.*valve-exhaust
SPX 5661/5834.; |
420253255 |
— | ||
|
31
|
31
290241220
Vis ajustement *screw-adjuster
SPX 5661/5834.; |
290241220 |
— | ||
| replacement | |||||
|
31
|
31
420241221 Vis ajustement *screw-adjusterSPX 5661/5834.; |
420241221 |
US $12.19 |
||
|
32
|
32
420838082
Pince a ressort*clip-spring
SPX 5661/5834.; |
420838082 |
— | ||
| replacement | |||||
|
32
|
32
420838083 Pince a ressort*clip-springSPX 5661/5834.; |
420838083 |
US $17.74 |
||
|
33
|
33
293650065 Bride serrage *clampSPX 5661/5834.; |
293650065 |
US $35.34 |
||
