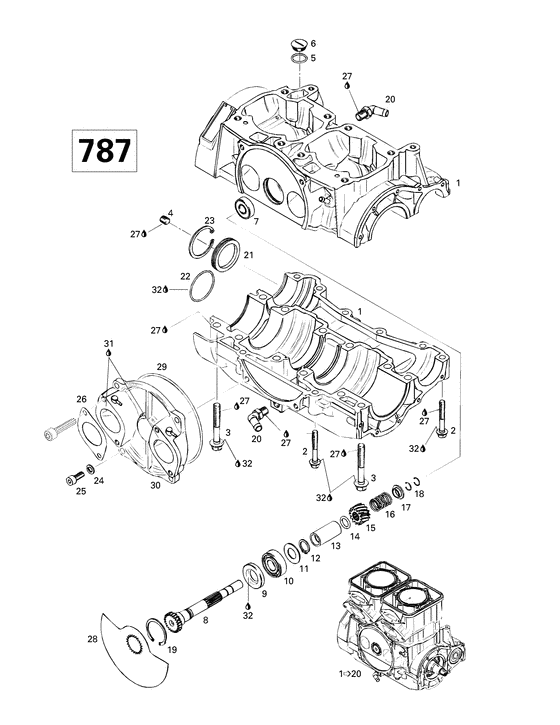

01- crankcase, rotary valve (787) Diagram Bombardier SPX
- Year
- 1997
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
290881527
Moteur 787 semi*block-short787
Includes 1 - 20. SPX 5661/5834.; |
290881527 |
— | ||
| replacement | |||||
|
1
|
1
421000100
Ens.carter-cyl.*short block 787 grey
Includes 1 - 20. SPX 5661/5834.; |
421000100 |
— | ||
|
1
|
1
290887239
Carter moteur *crankcase-assy
Includes 1 - 6. SPX 5661/5834.; |
290887239 |
— | ||
| replacement | |||||
|
1
|
1
420891140
Carter moteur *crankcase-assy
Includes 1 - 6. SPX 5661/5834.; |
420891140 |
— | ||
|
2
|
2
290240328
Vis hex.flasque*screw-hex.flan
SPX 5661/5834.; |
290240328 |
— | ||
| replacement | |||||
|
2
|
2
420240328 Screw-hex.flanSPX 5661/5834.; |
420240328 |
US $72.70 |
||
|
3
|
3
290941333
Vis hex.flasque*screw-hex.flan
SPX 5661/5834.; |
290941333 |
— | ||
| replacement | |||||
|
3
|
3
420941333 Vis hex.flasque*screw-hex.flanSPX 5661/5834.; |
420941333 |
US $20.77 |
||
|
4
|
4
290240483
Bouchon purge *plug-drain
SPX 5661/5834.; |
290240483 |
— | ||
| replacement | |||||
|
4
|
4
420240483 Bouchon purge *plug-drainSPX 5661/5834.; |
420240483 |
US $11.17 |
||
|
5
|
5
290250890
Joint torique *o-ring
SPX 5661/5834.; |
290250890 |
— | ||
| replacement | |||||
|
5
|
5
420250890 Joint torique *o-ringSPX 5661/5834.; |
420250890 |
US $3.94 |
||
|
6
|
6
290241801
Bouchon purge *plug-drain
SPX 5661/5834.; |
290241801 |
— | ||
| replacement | |||||
|
6
|
6
420241801 Bouchon purge *plug screwSPX 5661/5834.; |
420241801 |
US $9.45 |
||
|
7
|
7
290932797
Roulement bille*ball bearing
SPX 5661/5834.; |
290932797 |
— | ||
| replacement | |||||
|
7
|
7
420932797 Roulement bille*ball bearingSPX 5661/5834.; |
420932797 |
US $17.29 |
||
|
8
|
8
290837351
Arbre valve rot*shaft-rotary
SPX 5661/5834.; |
290837351 |
— | ||
| replacement | |||||
|
8
|
8
420837352 Shaft-rotarySPX 5661/5834.; |
420837352 |
US $155.01 |
||
|
9
|
9
290930580
Anneau etanche *seal-oil
SPX 5661/5834.; |
290930580 |
— | ||
| replacement | |||||
|
9
|
9
420930580 Anneau etanche *seal-oilSPX 5661/5834.; |
420930580 |
US $14.25 |
||
|
10
|
10
290932032
Roulement bille*ball bearing
SPX 5661/5834.; |
290932032 |
— | ||
| replacement | |||||
|
10
|
10
293350051 Roulement bille*ball bearingSPX 5661/5834.; |
293350051 |
US $17.29 |
||
|
11
|
11
290227439
Cale epaisseur *shim
SPX 5661/5834.; |
290227439 |
— | ||
| replacement | |||||
|
11
|
11
420227439 Cale epaisseur *shimSPX 5661/5834.; |
420227439 |
US $20 |
||
|
12
|
12
290845450
Bague d arret *snap ring
SPX 5661/5834.; |
290845450 |
— | ||
| replacement | |||||
|
12
|
12
420845450 Bague d arret *ring-lockSPX 5661/5834.; |
420845450 |
US $19.60 |
||
|
13
|
13
290847287
Manchon ecart. *sleeve-distanc
SPX 5661/5834.; |
290847287 |
— | ||
| replacement | |||||
|
13
|
13
420847287 Manchon ecart. *sleeve-distancSPX 5661/5834.; |
420847287 |
US $21.79 |
||
|
14
|
14
293300024 Joint torique *o-ringSPX 5661/5834.; |
293300024 |
US $52.35 |
||
|
15
|
15
290935735
Engrenage 14d. *gear-cent.14th
SPX 5661/5834.; |
290935735 |
— | ||
| replacement | |||||
|
15
|
15
420935736 Roue dentee 14d*sprocket 14thSPX 5661/5834.; |
420935736 |
US $97.50 |
||
|
16
|
16
290938810
Ressort *spring
SPX 5661/5834.; |
290938810 |
— | ||
| replacement | |||||
|
16
|
16
420938810 Ressort *springSPX 5661/5834.; |
420938810 |
US $10.69 |
||
|
17
|
17
290827430
Siege ressort *seat-spring
SPX 5661/5834.; |
290827430 |
— | ||
| replacement | |||||
|
17
|
17
420827430 Siege ressort *seat-springSPX 5661/5834.; |
420827430 |
US $9.13 |
||
|
18
|
18
290845160
Circlip #12 *circlip-#12
SPX 5661/5834.; |
290845160 |
— | ||
| replacement | |||||
|
18
|
18
420845160 Circlip *circlipSPX 5661/5834.; |
420845160 |
US $16.30 |
||
|
19
|
19
290845260
Bague d arret *snap ring
SPX 5661/5834.; |
290845260 |
— | ||
| replacement | |||||
|
19
|
19
420845260 Bague d arret *ring-lockSPX 5661/5834.; |
420845260 |
US $21.25 |
||
|
20
|
20
290922245
Raccord coude90*fitting-elbow
SPX 5661/5834.; |
290922245 |
— | ||
| replacement | |||||
|
20
|
20
420922245
Tube angulaire *tube-angular
SPX 5661/5834.; |
420922245 |
— | ||
|
21
|
21
290810740
Couvercle *cover
SPX 5661/5834.; |
290810740 |
— | ||
| replacement | |||||
|
21
|
21
420810745 Couvercle *coverSPX 5661/5834.; |
420810745 |
US $20.77 |
||
|
22
|
22
290230300
Joint torique *o-ring
SPX 5661/5834.; |
290230300 |
— | ||
| replacement | |||||
|
22
|
22
420230300 Joint torique *o-ringSPX 5661/5834.; |
420230300 |
US $8.13 |
||
|
23
|
23
290945823
Bague d arret *snap ring
SPX 5661/5834.; |
290945823 |
— | ||
| replacement | |||||
|
23
|
23
420810745 Couvercle *coverSPX 5661/5834.; |
420810745 |
US $20.77 |
||
|
24
|
24
217383600
Washer-lock spring din.128a-a2
SPX 5661/5834.; |
217383600 |
— | ||
| replacement | |||||
|
24
|
24
234180602 Washer-lock spring din.128a-a2SPX 5661/5834.; |
234180602 |
US $15 |
||
|
25
|
25
290240073
Vis allen *screw-allen
SPX 5661/5834.; |
290240073 |
— | ||
| replacement | |||||
|
25
|
25
205082060 Screw-socket hd.din.912a2SPX 5661/5834.; |
205082060 |
US $11.50 |
||
|
26
|
26
293250070
Joint etanche *gasket
SPX 5661/5834.; |
293250070 |
— | ||
| replacement | |||||
|
26
|
26
293250134 Joint etanche *gasketSPX 5661/5834.; |
293250134 |
US $75.30 |
||
|
27
|
27
293800007
Loctite 515 *loctite-515
SPX 5661/5834.; |
293800007 |
— | ||
| replacement | |||||
|
27
|
27
293800038 Loctite 518 *loctite-518SPX 5661/5834.; |
293800038 |
US $51.97 |
||
|
28
|
28
290924502
Valve rotative *valve-rotary
SPX 5661/5834.; |
290924502 |
— | ||
| replacement | |||||
|
28
|
28
420924502 Valve rotative *valve-rotarySPX 5661/5834.; |
420924502 |
US $56.05 |
||
|
29
|
29
290831765
Joint torique *o-ring
SPX 5661/5834.; |
290831765 |
— | ||
| replacement | |||||
|
29
|
29
420831767 Joint torique *o-ringSPX 5661/5834.; |
420831767 |
US $12.19 |
||
|
30
|
30
290810738
Couvercle rotar*cover-rotary
SPX 5661/5834.; |
290810738 |
— | ||
| replacement | |||||
|
30
|
30
420811306 Couvercle rotar*cover-rotarySPX 5661/5834.; |
420811306 |
US $322.29 |
||
|
31
|
31
293800038 Loctite 518 *loctite-518SPX 5661/5834.; |
293800038 |
US $51.97 |
||
|
32
|
32
413707000 Dow corning 111*dow corning 111SPX 5661/5834.; |
413707000 |
US $86.77 |
||
|
33
|
33
290886390
Ens.joint etanc*set-gasket
SPX 5661/5834.; |
290886390 |
— | ||
| replacement | |||||
|
33
|
33
420886390 Ens.joint etanc*set-gasketSPX 5661/5834.; |
420886390 |
US $165.21 |
||
