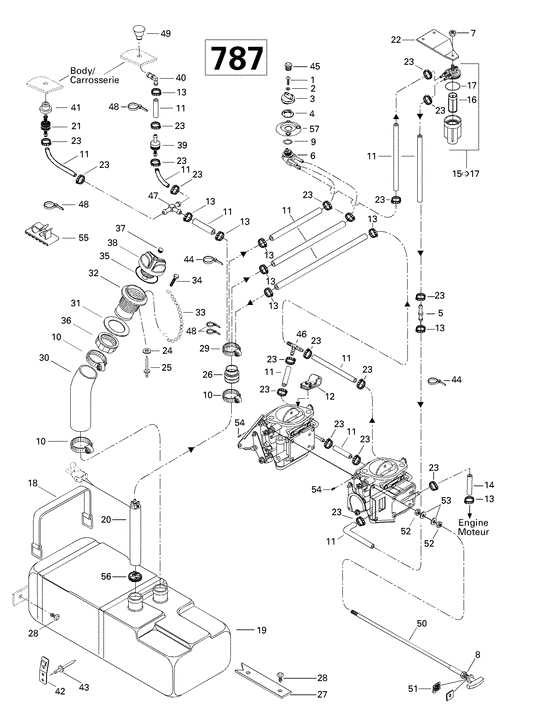

02- fuel system (787) Diagram Bombardier SPX
- Year
- 1997
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
212200004
Screw-pan hd.ph.din.7985a-a2
SPX 5661/5834.; |
212200004 |
— | ||
| replacement | |||||
|
1
|
1
208640860 Screw-pan hd.ph.din.7985a-a2SPX 5661/5834.; |
208640860 |
US $5.35 |
||
|
2
|
2
213200010
Washer-flat din.433a2
SPX 5661/5834.; |
213200010 |
— | ||
| replacement | |||||
|
2
|
2
234040600 Washer-flat din.433a2SPX 5661/5834.; |
234040600 |
US $7.10 |
||
|
3
|
3
275500263 Bouton valve es*knob-valv.fuelSPX 5661/5834.; |
275500263 |
US $9.50 |
||
|
4
|
4
212100009 Nut-hex.plasticSPX 5661/5834.; |
212100009 |
US $25.20 |
||
|
5
|
5
293710039 Raccord droit *fitting-straigSPX 5661/5834.; |
293710039 |
US $9.89 |
||
|
6
|
6
275500098 Soupape essence*valve-fuelSPX 5661/5834.; |
275500098 |
US $46.78 |
||
|
7
|
7
212000001
Nut-stop elastic din.985-a2(m6)
SPX 5661/5834.; |
212000001 |
— | ||
| replacement | |||||
|
7
|
7
232561600 Nut-stop elastic din.985-a2SPX 5661/5834.; |
232561600 |
US $7.40 |
||
|
8
|
8
211100030
Nut-hexagonal hi-lex
SPX 5661/5834.; |
211100030 |
— | ||
|
9
|
9
293250004 Joint etanche *gasketSPX 5661/5834.; |
293250004 |
US $42.25 |
||
|
10
|
10
293650023 Bride serrage *clamp-tridonSPX 5661/5834.; |
293650023 |
US $70.70 |
||
|
11
|
11
275500139
Boyau 6mm. *hose-6mm.
SPX 5661/5834.; |
275500139 |
— | ||
|
12
|
12
293850018
Attache collier*open clamp
SPX 5661/5834.; |
293850018 |
— | ||
|
13
|
13
293650038
Bride serrage *clamp-tridon
SPX 5661/5834.; |
293650038 |
— | ||
|
14
|
14
275500270
Boyau forme *hose-formed
SPX 5661/5834.; |
275500270 |
— | ||
|
15
|
15
275500088 Filtre ess.ass.*filter-fuel asIncludes 15 - 17. SPX 5661/5834.; |
275500088 |
US $31.47 |
||
|
16
|
16
275500089 Filtre essence *filter-fuelSPX 5661/5834.; |
275500089 |
US $68 |
||
|
17
|
17
275500090 Joint torique *o-ringSPX 5661/5834.; |
275500090 |
US $49.80 |
||
|
18
|
18
293850023
Sangle res.ess.*strap-fuel tank
SPX 5661/5834.; |
293850023 |
— | ||
|
19
|
19
275500109 Reservoir ess. *tank-fuelSPX 5661/5834.; |
275500109 |
US $236.61 |
||
|
20
|
20
275500186 Chicane triage *baffle-pick upSPX 5661/5834.; |
275500186 |
US $260.07 |
||
|
21
|
21
275500104
Soupape retenue*valve-check
SPX 5661/5834.; |
275500104 |
— | ||
| replacement | |||||
|
21
|
21
275500479
Soupape retenue*valve-check
SPX 5661/5834.; |
275500479 |
— | ||
|
22
|
22
275500113
Supp.filtre ess*supp-filter fu
SPX 5661/5834.; |
275500113 |
— | ||
|
23
|
23
293650042 Bride serrage *clamp-oetikerSPX 5661/5834.; |
293650042 |
US $20.50 |
||
|
24
|
24
213200018
Washer-flat din.9021b-a2
SPX 5661/5834.; |
213200018 |
— | ||
| replacement | |||||
|
24
|
24
234032600 Washer-flat din.9021b-a2SPX 5661/5834.; |
234032600 |
US $7.10 |
||
|
25
|
25
390407900 Rivet-pop 1/8 *rivet-pop 1/8SPX 5661/5834.; |
390407900 |
US $96 |
||
|
26
|
26
275500111
Adap.tube ess. *adap-tube fuel
SPX 5661/5834.; |
275500111 |
— | ||
|
27
|
27
293830033
Tampon caout. *pad-rubber
SPX 5661/5834.; |
293830033 |
— | ||
|
28
|
28
293730006 Dard noir *dart-blackSPX 5661/5834.; |
293730006 |
US $6.70 |
||
|
29
|
29
293650035 Bride serrage *clamp-tridonSPX 5661/5834.; |
293650035 |
US $47.75 |
||
|
30
|
30
275500110
Boyau remplis. *hose-fil.neck
SPX 5661/5834.; |
275500110 |
— | ||
|
31
|
31
293250029 Joint etanche *gasketSPX 5661/5834.; |
293250029 |
US $16.13 |
||
|
32
|
32
275500231 Goulot remplis.*neck-fillerSPX 5661/5834.; |
275500231 |
US $12.68 |
||
|
33
|
33
275500168
Chaine bouchon *chain-cap fuel
SPX 5661/5834.; |
275500168 |
— | ||
|
34
|
34
211000028
Screw-pt.hex.flange k40 x 10
SPX 5661/5834.; |
211000028 |
— | ||
| replacement | |||||
|
34
|
34
241140060 Screw-pt.hex.flange k40 x 10SPX 5661/5834.; |
241140060 |
US $9.60 |
||
|
35
|
35
293250017
Joint etanche *gasket
SPX 5661/5834.; |
293250017 |
— | ||
|
36
|
36
211100012 Nut-neck filler fuelSPX 5661/5834.; |
211100012 |
US $14.14 |
||
|
37
|
37
293000034 Capuchon press.*cap-snap blackSPX 5661/5834.; |
293000034 |
US $50.05 |
||
|
38
|
38
275500153
Bouchon ess.sub*cap-fuel sub.
SPX 5661/5834.; |
275500153 |
— | ||
| replacement | |||||
|
38
|
38
275500430 Bouchon ess.sub*cap-fuel sub.SPX 5661/5834.; |
275500430 |
US $30.19 |
||
|
39
|
39
275500087
Soupape retenue*valve-check
SPX 5661/5834.; |
275500087 |
— | ||
| replacement | |||||
|
39
|
39
275500398 Soupape retenue*valve-checkSPX 5661/5834.; |
275500398 |
from US $12.38 |
||
|
40
|
40
293710001
Raccord coude90*fitting-elbow
SPX 5661/5834.; |
293710001 |
— | ||
| replacement | |||||
|
40
|
40
414580700 Raccord male *connector-maleSPX 5661/5834.; |
414580700 |
US $26.60 |
||
|
41
|
41
293720029 Passe-fils *grommetSPX 5661/5834.; |
293720029 |
US $9.25 |
||
|
42
|
42
293850024 Pince courroie *clip-strapSPX 5661/5834.; |
293850024 |
US $157.30 |
||
|
43
|
43
293150037 Rivet avdel *rivet-avdel 3/16SPX 5661/5834.; |
293150037 |
US $7.30 |
||
|
44
|
44
293750002 Tie rap 142mm *tie-rap 142mmSPX 5661/5834.; |
293750002 |
US $15.50 |
||
|
45
|
45
275500241 Bouchon bouton *plug-cap fuel valveSPX 5661/5834.; |
275500241 |
US $21.75 |
||
|
46
|
46
293710059 Raccord en y *y-connectorSPX 5661/5834.; |
293710059 |
US $10.97 |
||
|
47
|
47
293710024 Raccord en t *fitting-tSPX 5661/5834.; |
293710024 |
US $14.72 |
||
|
48
|
48
294000606
Tie rap 180mm *tie-rap 180mm
SPX 5661/5834.; |
294000606 |
— | ||
| replacement | |||||
|
48
|
48
414115200 Tie-rap 180 mmSPX 5661/5834.; |
414115200 |
US $7 |
||
|
49
|
49
293830011
Rondelle isolan*washer-rubber
SPX 5661/5834.; |
293830011 |
— | ||
|
50
|
50
270000281
Cable etrang. *cable-choke
Includes 50 - 53. SPX 5661/5834.; |
270000281 |
— | ||
|
51
|
51
291000457 Plaque etrang. *plate-chokeSPX 5661/5834.; |
291000457 |
US $48.55 |
||
|
52
|
52
212100003
Nut-jam hexagonal din.439b-a2
SPX 5661/5834.; |
212100003 |
— | ||
| replacement | |||||
|
52
|
52
232160600 Nut-jam hexagonal din.439b-a2SPX 5661/5834.; |
232160600 |
US $7.40 |
||
|
53
|
53
213200001
Washer-flat din.125a-a2(m6)
SPX 5661/5834.; |
213200001 |
— | ||
| replacement | |||||
|
53
|
53
234061600 Washer-flat din.125a-a2SPX 5661/5834.; |
234061600 |
US $10.25 |
||
|
54
|
54
210100014
Screw-set socket din.916a2
SPX 5661/5834.; |
210100014 |
— | ||
| replacement | |||||
|
54
|
54
206540660
Screw-set socket din.916a2
SPX 5661/5834.; |
206540660 |
— | ||
|
55
|
55
293750005 Attache collier*tie-clampSPX 5661/5834.; |
293750005 |
US $38.85 |
||
|
56
|
56
275500249
Filtre essence *filter-fuel
SPX 5661/5834.; |
275500249 |
— | ||
| replacement | |||||
|
56
|
56
275500397 Filtre essence *filter-fuelSPX 5661/5834.; |
275500397 |
US $29.38 |
||
|
57
|
57
275500264
Plateau soupape*plate-val.fuel
SPX 5661/5834.; |
275500264 |
— | ||
