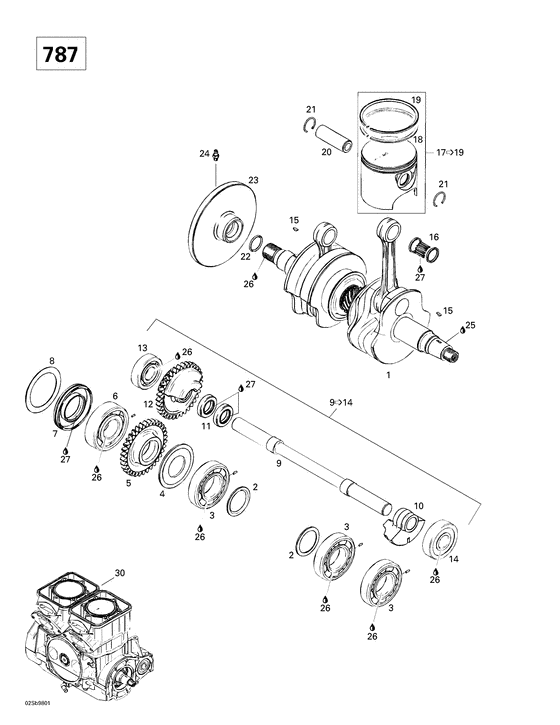

01- crankshaft and pistons (787) Diagram Bombardier SPX
- Year
- 1998
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
290887301
Piston ass. *piston-assy.
|
290887301 |
— | ||
| replacement | |||||
|
|
420887301 Piston ass. 82.14mm *piston-assy. |
420887301 |
US $146.85 |
||
|
|
290815081
Segment r 82.25*r-ring 82.25
|
290815081 |
— | ||
| replacement | |||||
|
|
420815081
Segment r 82.25*r-ring 82.25
|
420815081 |
— | ||
|
|
290815101
Segment l 82.25*l-ring 82.25
|
290815101 |
— | ||
| replacement | |||||
|
|
420815101
Segment l 82.25*l-ring 82.25
|
420815101 |
— | ||
|
1
|
1
290888102
Vilebrequin ass*crankshaft-ass
Includes 1 - 6.; |
290888102 |
— | ||
| replacement | |||||
|
1
|
1
420888103
Vilebrequin ass*crankshaft ass
Includes 1 - 6.; |
420888103 |
— | ||
|
2
|
2
290827760
Bague ecart. *distance ring
|
290827760 |
— | ||
| replacement | |||||
|
2
|
2
420827760 Bague ecart. *ring-distance |
420827760 |
US $7 |
||
|
3
|
3
290832573
Roulement bille*bearing-ball
|
290832573 |
— | ||
| replacement | |||||
|
3
|
3
420832573 Roulement bille*ball bearing |
420832573 |
US $53.60 |
||
|
4
|
4
290926140 Rondelle labyr.*washer-labyrin |
290926140 |
US $17.49 |
||
| replacement | |||||
|
4
|
4
420926140 Rondelle labyr.*washer-labyrin |
420926140 |
US $20.77 |
||
|
5
|
5
290834315
Engrenage balan*gear-balance
|
290834315 |
— | ||
| replacement | |||||
|
5
|
5
420834315 Gear-balance |
420834315 |
US $215.17 |
||
|
6
|
6
290932579
Roulement bille*ball bearing
|
290932579 |
— | ||
| replacement | |||||
|
6
|
6
420932579
Ball bearing
|
420932579 |
— | ||
|
7
|
7
290830638
Anneau etanche *seal-oil
|
290830638 |
— | ||
| replacement | |||||
|
7
|
7
420830638 Anneau etanche *seal-oil |
420830638 |
US $31.59 |
||
|
8
|
8
290926060
Cale de retenue*shim-retaining
|
290926060 |
— | ||
| replacement | |||||
|
8
|
8
420926060 Cale de retenue*shim-retaining |
420926060 |
US $17.63 |
||
|
9
|
9
290837406
Arbre balan.ass*shaft-bal.assy
Includes 9 - 14.; |
290837406 |
— | ||
| replacement | |||||
|
9
|
9
420837406
Shaft-bal.assy
Includes 9 - 14.; |
420837406 |
— | ||
|
9
|
9
420837400 Shaft-balance |
420837400 |
US $131.53 |
||
|
10
|
10
420818800
Masse balancem.*mass-balance
|
420818800 |
— | ||
|
11
|
11
420930390
Anneau etanche *seal-oil
|
420930390 |
— | ||
| replacement | |||||
|
11
|
11
420930392 Anneau etanche *seal-oil |
420930392 |
US $16.05 |
||
|
12
|
12
420834305
Gear-balance
|
420834305 |
— | ||
|
13
|
13
290932095
Roulement bille*ball bearing
|
290932095 |
— | ||
| replacement | |||||
|
13
|
13
420932095
Ball bearing
|
420932095 |
— | ||
|
14
|
14
290932098
Roulement bille*ball bearing
|
290932098 |
— | ||
| replacement | |||||
|
14
|
14
420932098 Roulement bille*ball bearing |
420932098 |
US $30.57 |
||
|
15
|
15
290246055
Clavette *key-woodruff
|
290246055 |
— | ||
| replacement | |||||
|
15
|
15
420246055 Clavette *key-woodruff |
420246055 |
US $31.30 |
||
|
16
|
16
290832420
Roulement aigui*needle bearing
|
290832420 |
— | ||
| replacement | |||||
|
16
|
16
420832421 Roul.aiguille *needle bearing |
420832421 |
US $54.98 |
||
|
17
|
17
290887300
Piston ass. *piston-assy.
Includes 17 - 19.; |
290887300 |
— | ||
| replacement | |||||
|
17
|
17
420887300 Piston ass. 81.89mm *piston-assy.Includes 17 - 19.; |
420887300 |
US $146.85 |
||
|
18
|
18
290815080
Segment r 82.00*r-ring 82.00
|
290815080 |
— | ||
| replacement | |||||
|
18
|
18
420815080 Segment r 82.00*r-ring 82.00 |
420815080 |
US $28.05 |
||
|
19
|
19
290815100
Segment l 82.00*l-ring 82.00
|
290815100 |
— | ||
| replacement | |||||
|
19
|
19
420815100 Segment l 82.00*l-ring 82.00 |
420815100 |
US $51.97 |
||
|
20
|
20
290916401
Goupille piston*pin-piston
|
290916401 |
— | ||
| replacement | |||||
|
20
|
20
420916404 Piston Pin |
420916404 |
US $42.81 |
||
|
21
|
21
290845100
Circlip #20 *circlip-#20
|
290845100 |
— | ||
| replacement | |||||
|
21
|
21
420845100 Circlip #20 *circlip-#20 |
420845100 |
US $19.60 |
||
|
22
|
22
290430782
Joint torique *o-ring
|
290430782 |
— | ||
| replacement | |||||
|
22
|
22
420430782 Joint torique *o ring |
420430782 |
US $69.50 |
||
|
23
|
23
290958057
Volant inertie *clutch-fly.pto
Includes 23 - 24.; |
290958057 |
— | ||
| replacement | |||||
|
23
|
23
420958057
Volant inertie *clutch-fly.pto
Includes 23 - 24.; |
420958057 |
— | ||
|
24
|
24
290499113
Graisseur *fitting-grease
|
290499113 |
— | ||
| replacement | |||||
|
24
|
24
420499113 Graisseur *fitting-grease |
420499113 |
US $48.55 |
||
|
25
|
25
293800015
Loctite 242 *loctite-242
|
293800015 |
— | ||
| replacement | |||||
|
25
|
25
293800060 Loctite 243 *loctite-243 |
293800060 |
US $31.18 |
||
|
26
|
26
293800023
Loctite 767 lubrifiant antigrippage, 454 gr.
|
293800023 |
— | ||
|
27
|
27
413707000 Dow corning 111*dow corning 111 |
413707000 |
US $86.77 |
||
|
28
|
28
290886392
Ens.joint etanc*set-gasket
|
290886392 |
— | ||
| replacement | |||||
|
28
|
28
420886392 Ens.joint etanc*set-gasket |
420886392 |
US $183.57 |
||
|
29
|
29
290886396
Ens.joint cyl. *set-gasket cyl
|
290886396 |
— | ||
| replacement | |||||
|
29
|
29
420886396 Set-gasket cyl |
420886396 |
US $97.89 |
||
|
30
|
30
420078704
Moteur 787 semi*block-short787
|
420078704 |
— | ||
| replacement | |||||
|
30
|
30
421000100
Ens.carter-cyl.*short block 787 grey
|
421000100 |
— | ||
