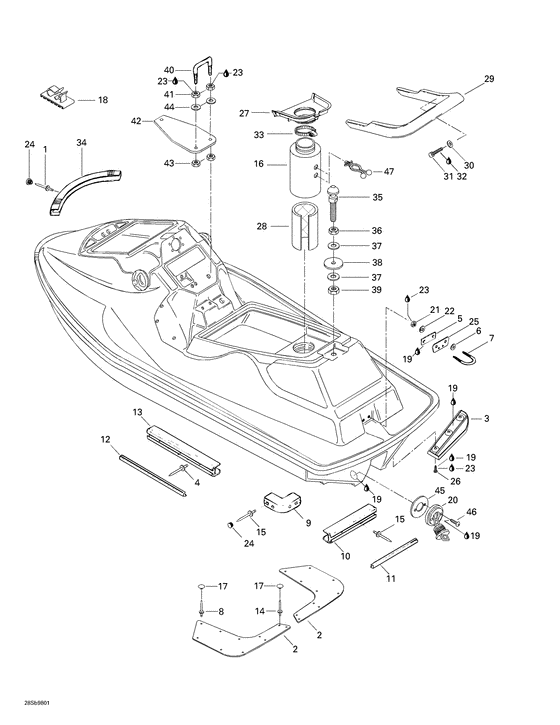

09- body Diagram Bombardier SPX
- Year
- 1998
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
292000232
Plaque stab.ga.*plate-stab.lh.
|
292000232 |
— | ||
|
|
291000550
Tapis arr.ga. *carpet-lh.rear
|
291000550 |
— | ||
|
1
|
1
293150013 Rivet-pop 3/16 *rivet-pop 3/16 |
293150013 |
from US $2.12 |
||
|
2
|
2
291000549
Tapis arr.dr. *carpet-rh.rear
|
291000549 |
— | ||
|
3
|
3
292000231
Plaque stab.dr.*plate-stab.rh.
|
292000231 |
— | ||
|
4
|
4
293150005 Rivet-pop 3/16 *rivet-pop 3/16 |
293150005 |
US $6.80 |
||
|
5
|
5
291000307 Plaque retenue *plate-retainer |
291000307 |
US $13.60 |
||
|
6
|
6
293050001 Rondelle plate *flat washer |
293050001 |
US $19.90 |
||
|
7
|
7
292000011 Bride en u *clamp-u |
292000011 |
US $68.29 |
||
|
8
|
8
293150036 Rivet-pop 1/8 *rivet-pop 1/8 |
293150036 |
US $0.37 |
||
|
9
|
9
291000220
Coin pare-chocs*corner-bumper
|
291000220 |
— | ||
|
10
|
10
291000498
Pare-chocs arr.*bumper-rear
|
291000498 |
— | ||
| replacement | |||||
|
10
|
10
291000227
Ext.parechoc ar*ext-bumper rea
|
291000227 |
— | ||
|
11
|
11
291000698
Moulure parecho*trim-bump.rear
|
291000698 |
— | ||
| replacement | |||||
|
11
|
11
204050279 Moulure parecho*trim-bumper/rear |
204050279 |
US $36.72 |
||
|
12
|
12
291000697
Moulure parecho*trim-bump.side
|
291000697 |
— | ||
| replacement | |||||
|
12
|
12
204050271 Moulure parecho*trim-bump.side |
204050271 |
US $56.05 |
||
|
13
|
13
291000495
Pare-chocs lat.*bumper-side
|
291000495 |
— | ||
| replacement | |||||
|
13
|
13
291000842
Pare-chocs lat.*bumper-side
|
291000842 |
— | ||
|
14
|
14
293150016 Rivet-pop 1/8 *rivet-pop 1/8 |
293150016 |
US $25.50 |
||
|
15
|
15
293150014 Rivet-pop 3/16 *rivet-pop 3/16 |
293150014 |
US $37 |
||
|
16
|
16
291001103 Boyau vent.arr.*hose-vent rear |
291001103 |
US $37.71 |
||
|
17
|
17
293000014 Capuchon press.*cap-snap black |
293000014 |
US $67 |
||
|
18
|
18
293750005 Attache collier*tie-clamp |
293750005 |
US $38.85 |
||
|
19
|
19
293800033
Scell.silicone *seal-silicone
|
293800033 |
— | ||
| replacement | |||||
|
19
|
19
293800086
Scell.silicone *seal-silicone
|
293800086 |
— | ||
|
20
|
20
292000187 Bouchon purge *plug-drain |
292000187 |
from US $21.60 |
||
|
21
|
21
212100001
Nut-hexagonal din.934a2
|
212100001 |
— | ||
| replacement | |||||
|
21
|
21
232081600 Nut-hexagonal din.934a2 |
232081600 |
US $9.50 |
||
|
22
|
22
213000001
Washer-lock helical din.127b-a2
|
213000001 |
— | ||
| replacement | |||||
|
22
|
22
234181601 Washer-lock helical din.127b-a2 |
234181601 |
US $7.10 |
||
|
23
|
23
293800005 Loctite 271 *loctite-271 |
293800005 |
US $31.18 |
||
|
24
|
24
291000339 Bouchon parecho*plug-bumper |
291000339 |
from US $4.90 |
||
|
25
|
25
291000544
Plaque finition*plate-finition
|
291000544 |
— | ||
|
26
|
26
211000059
Screw-plastite pan hd.ph
|
211000059 |
— | ||
| replacement | |||||
|
26
|
26
243262060
Screw-plastite pan hd.ph
|
243262060 |
— | ||
|
27
|
27
291001105
Adap.boyau *adap-hose vent
|
291001105 |
— | ||
|
28
|
28
291000400
Assourdisseur *damping-sound
|
291000400 |
— | ||
|
29
|
29
269000462
Grab handle (black)
|
269000462 |
— | ||
|
30
|
30
213200011
Washer-flat din.9021b-a2
|
213200011 |
— | ||
| replacement | |||||
|
30
|
30
234082600 Washer-flat din.9021b-a2 |
234082600 |
US $31.10 |
||
|
31
|
31
215981660
Screw-socket hd.din.912a2
|
215981660 |
— | ||
| replacement | |||||
|
31
|
31
205081660 Screw-socket hd.din.912a2 |
205081660 |
US $10.65 |
||
|
32
|
32
293800015
Loctite 242 *loctite-242
|
293800015 |
— | ||
| replacement | |||||
|
32
|
32
293800060 Loctite 243 *loctite-243 |
293800060 |
US $31.18 |
||
|
33
|
33
293650054 Bride serrage *clamp-tridon |
293650054 |
US $53.65 |
||
|
34
|
34
291000494
Nez pare-chocs *nose-bumper
|
291000494 |
— | ||
|
35
|
35
291000691 Ergot de siege *stud-seat |
291000691 |
US $44.83 |
||
|
36
|
36
218300600
Nut-jam hexagonal din.439b-a2
|
218300600 |
— | ||
| replacement | |||||
|
36
|
36
232100600 Nut-jam hexagonal din.439b-a2 |
232100600 |
US $14.35 |
||
|
37
|
37
217002600
Washer-flat din.9021b-a2
|
217002600 |
— | ||
| replacement | |||||
|
37
|
37
234002600 Washer-flat din.9021b-a2 |
234002600 |
US $14.35 |
||
|
38
|
38
291000628 Rondelle caout.*washer-rubber |
291000628 |
US $11.15 |
||
|
39
|
39
212000003
Nut-stop elastic din.985a2
|
212000003 |
— | ||
| replacement | |||||
|
39
|
39
232501600 Nut-stop elastic din.985a2 |
232501600 |
US $10.65 |
||
|
40
|
40
291000468 Crochet siege *hook seat |
291000468 |
US $17.82 |
||
|
41
|
41
212100004
Nut-hexagonal din.934a2
|
212100004 |
— | ||
| replacement | |||||
|
41
|
41
232061600 Nut-hexagonal din.934a2 |
232061600 |
US $7.40 |
||
|
42
|
42
275500113
Supp.filtre ess*supp-filter fu
|
275500113 |
— | ||
|
43
|
43
212000001
Nut-stop elastic din.985-a2(m6)
|
212000001 |
— | ||
| replacement | |||||
|
43
|
43
232561600 Nut-stop elastic din.985-a2 |
232561600 |
US $7.40 |
||
|
44
|
44
213200007
Washer-flat din.9021b-a2(m6)
|
213200007 |
— | ||
| replacement | |||||
|
44
|
44
234062600 Washer-flat din.9021b-a2 |
234062600 |
US $10 |
||
|
45
|
45
293250030 Joint etanche *gasket |
293250030 |
US $38.85 |
||
|
46
|
46
211000021 Screw-tri.plask pan.hd.phil. |
211000021 |
US $11.76 |
||
|
47
|
47
291000714 Attache *bracket |
291000714 |
US $2.62 |
||
