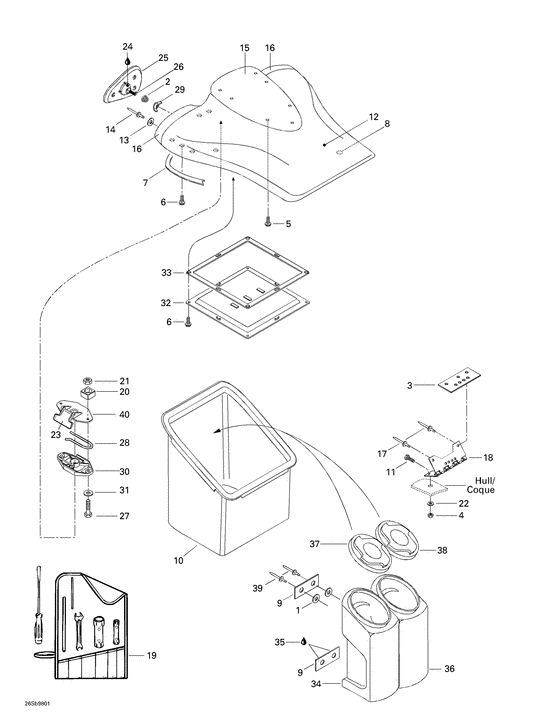

09- front storage compartment Diagram Bombardier SPX
- Year
- 1998
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
269500056
Miroir ass.ga. *mirror-assy.lh
|
269500056 |
— | ||
|
|
269500173
Boitier miroir *housing-lh.
|
269500173 |
— | ||
|
1
|
1
213200018
Washer-flat din.9021b-a2
|
213200018 |
— | ||
| replacement | |||||
|
1
|
1
234032600 Washer-flat din.9021b-a2 |
234032600 |
US $7.10 |
||
|
2
|
2
269500082 Ressort miroir *spring-mirror |
269500082 |
US $58.30 |
||
|
3
|
3
269500107 Plaque retenue *plate-retainer |
269500107 |
US $13.60 |
||
|
4
|
4
212000004
Nut-stop elastic din.985a2
|
212000004 |
— | ||
| replacement | |||||
|
4
|
4
232551600 Nut-stop elastic din.985a2 |
232551600 |
US $7.40 |
||
|
5
|
5
211000028
Screw-pt.hex.flange k40 x 10
|
211000028 |
— | ||
| replacement | |||||
|
5
|
5
241140060 Screw-pt.hex.flange k40 x 10 |
241140060 |
US $9.60 |
||
|
6
|
6
211000033
Screw-pt.hex.flange k40 x 16
|
211000033 |
— | ||
| replacement | |||||
|
6
|
6
241141660 Screw-pt.hex.flange k40 x 16 |
241141660 |
US $9.60 |
||
|
7
|
7
293200020
Anneau etanche *seal-tray
|
293200020 |
— | ||
|
8
|
8
269500227 Couv.bagage inf*cover-stor.low |
269500227 |
US $139.71 |
||
|
9
|
9
293250037 Joint etanche *gasket |
293250037 |
US $31.30 |
||
|
10
|
10
269500416
Coffre bagage *tray-storage
|
269500416 |
— | ||
|
11
|
11
210000009
Screw-hex.cap din.933a2
|
210000009 |
— | ||
| replacement | |||||
|
11
|
11
207152060 Screw-hex.cap din.933a2 |
207152060 |
US $9.50 |
||
|
12
|
12
269500362
Couv.bagage sup*cover-stor.upp
|
269500362 |
— | ||
| replacement | |||||
|
12
|
12
269500170 Couv.bagage sup*cover-stor.upp |
269500170 |
US $159.09 |
||
|
13
|
13
213200016 Washer-flat emhart |
213200016 |
US $9.50 |
||
|
14
|
14
293150008 Rivet-pop 3/16 *rivet-pop 3/16 |
293150008 |
US $6.60 |
||
|
15
|
15
269500171
Deflecteur *deflector
|
269500171 |
— | ||
|
16
|
16
269500172
Boitier miroir *housing-rh.
|
269500172 |
— | ||
|
17
|
17
293150039 Rivet-pop 3/16 *rivet-pop 3/16 |
293150039 |
US $9.60 |
||
|
18
|
18
269500112
Charniere stlss*hinge-stlss.
|
269500112 |
— | ||
| replacement | |||||
|
18
|
18
269500672
Charniere stlss*hinge-stlss.
|
269500672 |
— | ||
|
19
|
19
295000066
Owner tool kit
|
295000066 |
— | ||
|
20
|
20
269500252 Logement ecrou *housing-nut asIncludes 20 - 21.; |
269500252 |
US $19.22 |
||
|
21
|
21
212100004
Nut-hexagonal din.934a2
|
212100004 |
— | ||
| replacement | |||||
|
21
|
21
232061600 Nut-hexagonal din.934a2 |
232061600 |
US $7.40 |
||
|
22
|
22
213200004
Washer-flat din.125a-a2
|
213200004 |
— | ||
| replacement | |||||
|
22
|
22
234051600 Washer-flat din.125a-a2 |
234051600 |
US $10 |
||
|
23
|
23
269000016
Levier loquet *lever-latch
|
269000016 |
— | ||
| replacement | |||||
|
23
|
23
269700077
Levier loquet *lever-latch
|
269700077 |
— | ||
|
24
|
24
293550010 Graisse synth. *grease-synth. |
293550010 |
US $33.61 |
||
|
25
|
25
269500055
Miroir ass.dr. *mirror-assy.rh
Includes 25 - 26.; |
269500055 |
— | ||
|
26
|
26
269500079
Rotule miroir *joint-ball
|
269500079 |
— | ||
|
27
|
27
210000014
Screw-hex.cap din.933a2
|
210000014 |
— | ||
| replacement | |||||
|
27
|
27
207163560 Screw-hex.cap din.933a2 |
207163560 |
US $19.20 |
||
|
28
|
28
269700017 Ressort loquet *spring-latch |
269700017 |
US $29.13 |
||
|
29
|
29
218661600
Nut-wing ansi b18.17 type a
|
218661600 |
— | ||
| replacement | |||||
|
29
|
29
232661600 Nut-wing ansi b18.17 type a |
232661600 |
US $40.70 |
||
|
30
|
30
269000015
Base loquet *base-latch
|
269000015 |
— | ||
| replacement | |||||
|
30
|
30
269700109 LATCH ASS Y |
269700109 |
US $26.30 |
||
|
31
|
31
213200001
Washer-flat din.125a-a2(m6)
|
213200001 |
— | ||
| replacement | |||||
|
31
|
31
234061600 Washer-flat din.125a-a2 |
234061600 |
US $10.25 |
||
|
32
|
32
269500241 Couv.acces ass.*cover-acc.assyIncludes 32 - 33.; |
269500241 |
US $48.93 |
||
|
33
|
33
293200033 Anneau etanche *seal-tray |
293200033 |
US $14.25 |
||
|
34
|
34
269500151
Boitier extinct*housing-exting
|
269500151 |
— | ||
| replacement | |||||
|
34
|
34
269500606 Boitier extinct*housing-exting |
269500606 |
US $29.38 |
||
|
35
|
35
293800033
Scell.silicone *seal-silicone
|
293800033 |
— | ||
| replacement | |||||
|
35
|
35
293800086
Scell.silicone *seal-silicone
|
293800086 |
— | ||
|
36
|
36
269500180
Boitier rang. *housing-storag
|
269500180 |
— | ||
| replacement | |||||
|
36
|
36
269500606 Boitier extinct*housing-exting |
269500606 |
US $29.38 |
||
|
37
|
37
269500236
Cap extincteur *cap-extinguish
|
269500236 |
— | ||
| replacement | |||||
|
37
|
37
269500603
Cap extincteur *cap-extinguish
|
269500603 |
— | ||
|
38
|
38
269500237
Capuchon rang. *cap-storage
|
269500237 |
— | ||
| replacement | |||||
|
38
|
38
269500604
Capuchon rang. *cap-storage
|
269500604 |
— | ||
|
39
|
39
293150032 Rivet-pop 1/8 *rivet-pop 1/8 |
293150032 |
US $19.50 |
||
|
40
|
40
269700020
Couv.loquet *cover-latch
|
269700020 |
— | ||
| replacement | |||||
|
40
|
40
269700076
Couv.loquet *cover-latch
|
269700076 |
— | ||
