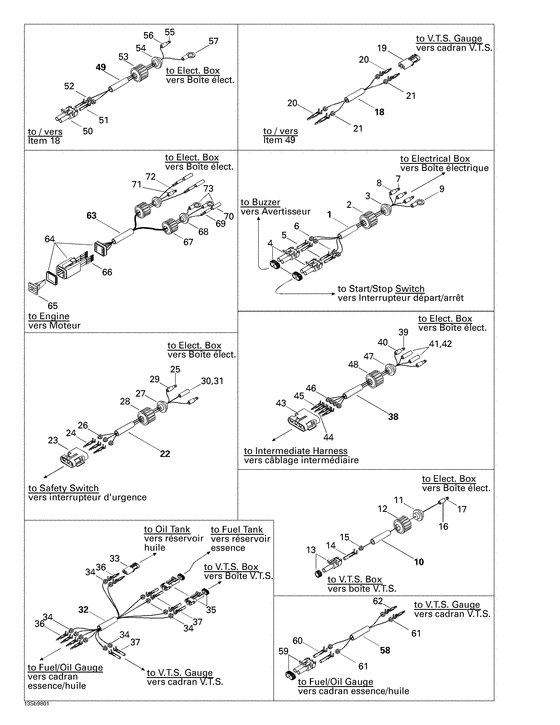

10- electrical harness Diagram Bombardier SPX
- Year
- 1998
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
278000659
Cablage avert. *harness-buzzer
Includes 1 - 9.; |
278000659 |
— | ||
|
2
|
2
278000100 Bouchon elect. *cap-elect.wire |
278000100 |
US $13.35 |
||
|
3
|
3
570026800
Passe-fils 4 t *grommet-4 ways
|
570026800 |
— | ||
| replacement | |||||
|
3
|
3
293720034
Passe-fils 4 t *grommet-4 ways
|
293720034 |
— | ||
|
4
|
4
278000220 Bloc 2 circ.mal*housing-tab(m) |
278000220 |
US $15.74 |
||
|
5
|
5
278000223 Cosse femelle *terminal-femal |
278000223 |
US $21.15 |
||
|
6
|
6
278000218 Joint de fil *seal-wire |
278000218 |
US $58.70 |
||
|
7
|
7
278000230 Cosse male *terminal-male |
278000230 |
US $58.70 |
||
|
8
|
8
278001008 Etui thermique *sheath-insulat |
278001008 |
US $21.15 |
||
|
9
|
9
278000300
Cosse a anneau *barrel-open
|
278000300 |
— | ||
|
10
|
10
278000671
Cablage 1 circ.*harness-1 way
Includes 10 - 17.; |
278000671 |
— | ||
|
11
|
11
293720030
Passe-fils 1 t *grommet-1 ways
|
293720030 |
— | ||
|
12
|
12
278000100 Bouchon elect. *cap-elect.wire |
278000100 |
US $13.35 |
||
|
13
|
13
278000219 Bloc 1 circ.mal*housing-tab |
278000219 |
US $13.60 |
||
|
14
|
14
278000223 Cosse femelle *terminal-femal |
278000223 |
US $21.15 |
||
|
15
|
15
278000218 Joint de fil *seal-wire |
278000218 |
US $58.70 |
||
|
16
|
16
278001008 Etui thermique *sheath-insulat |
278001008 |
US $21.15 |
||
|
17
|
17
278000230 Cosse male *terminal-male |
278000230 |
US $58.70 |
||
|
18
|
18
278000972
Cablage 2 circ.*harness-2 ways
Includes 18 - 21.; |
278000972 |
— | ||
|
19
|
19
278000217 Bloc 2 circ.fem*housing-tab(f) |
278000217 |
US $54.25 |
||
|
20
|
20
278000222 Cosse male *terminal-male |
278000222 |
US $21.15 |
||
|
21
|
21
278000218 Joint de fil *seal-wire |
278000218 |
US $58.70 |
||
|
22
|
22
278000658
Cablage int.urg*harness-safety
Includes 22 - 31.; |
278000658 |
— | ||
|
23
|
23
278000281 Bloc 3 circ.fem*housing-tab |
278000281 |
US $54.25 |
||
|
24
|
24
278000222 Cosse male *terminal-male |
278000222 |
US $21.15 |
||
|
25
|
25
278000230 Cosse male *terminal-male |
278000230 |
US $58.70 |
||
|
26
|
26
278000218 Joint de fil *seal-wire |
278000218 |
US $58.70 |
||
|
27
|
27
278000193 Passe-fils 3 t *grommet-3 ways |
278000193 |
US $1.96 |
||
|
28
|
28
278000100 Bouchon elect. *cap-elect.wire |
278000100 |
US $13.35 |
||
|
29
|
29
278001008 Etui thermique *sheath-insulat |
278001008 |
US $21.15 |
||
|
30
|
30
278001009 Cosse femelle *terminal-femal |
278001009 |
US $21.15 |
||
|
31
|
31
278001007 Etui thermique *sheath-insulat |
278001007 |
US $22.45 |
||
|
32
|
32
278000827
Cablage 6 circ.*harness-6 ways
Includes 32 - 37.; |
278000827 |
— | ||
|
33
|
33
278000217 Bloc 2 circ.fem*housing-tab(f) |
278000217 |
US $54.25 |
||
|
34
|
34
278000218 Joint de fil *seal-wire |
278000218 |
US $58.70 |
||
|
35
|
35
278000220 Bloc 2 circ.mal*housing-tab(m) |
278000220 |
US $15.74 |
||
|
36
|
36
278000222 Cosse male *terminal-male |
278000222 |
US $21.15 |
||
|
37
|
37
278000223 Cosse femelle *terminal-femal |
278000223 |
US $21.15 |
||
|
38
|
38
278000983
Cablage 4 circ.*harness-4 ways
Includes 38 - 48.; |
278000983 |
— | ||
|
39
|
39
278000230 Cosse male *terminal-male |
278000230 |
US $58.70 |
||
|
40
|
40
278001008 Etui thermique *sheath-insulat |
278001008 |
US $21.15 |
||
|
41
|
41
278001007 Etui thermique *sheath-insulat |
278001007 |
US $22.45 |
||
|
42
|
42
278001009 Cosse femelle *terminal-femal |
278001009 |
US $21.15 |
||
|
43
|
43
278000394
Bloc 4 circ.fem*housing-tab
|
278000394 |
— | ||
|
44
|
44
409004300 Cosse male *terminal-male |
409004300 |
US $36.20 |
||
|
45
|
45
278000222 Cosse male *terminal-male |
278000222 |
US $21.15 |
||
|
46
|
46
278000218 Joint de fil *seal-wire |
278000218 |
US $58.70 |
||
|
47
|
47
293720034
Passe-fils 4 t *grommet-4 ways
|
293720034 |
— | ||
|
48
|
48
278000100 Bouchon elect. *cap-elect.wire |
278000100 |
US $13.35 |
||
|
49
|
49
278001017
Cablage 2 circ.*harness-2 ways
Includes 49 - 57.; |
278001017 |
— | ||
|
50
|
50
278000220 Bloc 2 circ.mal*housing-tab(m) |
278000220 |
US $15.74 |
||
|
51
|
51
278000223 Cosse femelle *terminal-femal |
278000223 |
US $21.15 |
||
|
52
|
52
278000218 Joint de fil *seal-wire |
278000218 |
US $58.70 |
||
|
53
|
53
278000100 Bouchon elect. *cap-elect.wire |
278000100 |
US $13.35 |
||
|
54
|
54
293720025
Passe-fils 2 t *grommet-2 ways
|
293720025 |
— | ||
|
55
|
55
278000230 Cosse male *terminal-male |
278000230 |
US $58.70 |
||
|
56
|
56
278001008 Etui thermique *sheath-insulat |
278001008 |
US $21.15 |
||
|
57
|
57
278000992 Cosse a anneau *barrel-open |
278000992 |
US $28.40 |
||
|
58
|
58
278000980
Cablage 2 circ.*harness-2 ways
Includes 58 - 62.; |
278000980 |
— | ||
|
59
|
59
278000220 Bloc 2 circ.mal*housing-tab(m) |
278000220 |
US $15.74 |
||
|
60
|
60
278000223 Cosse femelle *terminal-femal |
278000223 |
US $21.15 |
||
|
61
|
61
278000218 Joint de fil *seal-wire |
278000218 |
US $58.70 |
||
|
62
|
62
278000222 Cosse male *terminal-male |
278000222 |
US $21.15 |
||
|
63
|
63
278000982
Cablage moteur *harness-engine
Includes 63 - 73.; |
278000982 |
— | ||
|
64
|
64
278000736 Bloc 6 circ.mal*housing-tab |
278000736 |
US $25.19 |
||
|
65
|
65
278000737 Cale 6 circ.mal*wedge-6 ways m |
278000737 |
US $19.45 |
||
|
66
|
66
278000632 Cosse femelle *terminal-femal |
278000632 |
US $28.40 |
||
|
67
|
67
278000100 Bouchon elect. *cap-elect.wire |
278000100 |
US $13.35 |
||
|
68
|
68
278000193 Passe-fils 3 t *grommet-3 ways |
278000193 |
US $1.96 |
||
|
69
|
69
278001009 Cosse femelle *terminal-femal |
278001009 |
US $21.15 |
||
|
70
|
70
278001007 Etui thermique *sheath-insulat |
278001007 |
US $22.45 |
||
|
71
|
71
278001008 Etui thermique *sheath-insulat |
278001008 |
US $21.15 |
||
|
72
|
72
278000230 Cosse male *terminal-male |
278000230 |
US $58.70 |
||
|
73
|
73
278000992 Cosse a anneau *barrel-open |
278000992 |
US $28.40 |
||
