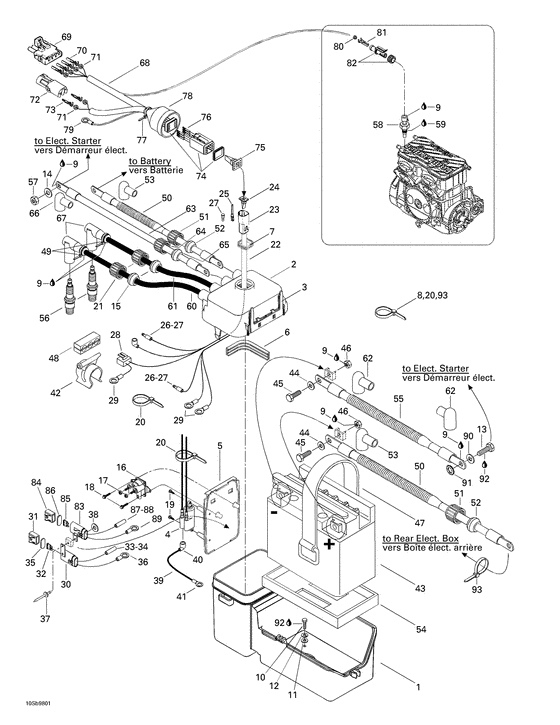

10- rear electrical box Diagram Bombardier SPX
- Year
- 1998
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
409007300 Cosse femelle *terminal-femal. |
409007300 |
US $6 |
||
|
1
|
1
278001191
Base boite elec*base-box elect
|
278001191 |
— | ||
|
2
|
2
278001264
Couvercle boite*cover-box elec
|
278001264 |
— | ||
| replacement | |||||
|
2
|
2
278001265
Couvercle boite*cover-box elec
|
278001265 |
— | ||
|
3
|
3
278000732
Plaque masse *plate-ground
|
278000732 |
— | ||
|
4
|
4
278000383 Bobine allumage*coil-ignition |
278000383 |
US $124.41 |
||
|
5
|
5
278001193
Plaque montage *plate-mounting
|
278001193 |
— | ||
| replacement | |||||
|
5
|
5
278000826
Plaque montage *plate-mounting
|
278000826 |
— | ||
|
6
|
6
278000440
Joint etanche *gasket
|
278000440 |
— | ||
|
7
|
7
293200030
Joint etanche *gasket
|
293200030 |
— | ||
| replacement | |||||
|
7
|
7
293200055
Joint etanche *gasket
|
293200055 |
— | ||
|
8
|
8
293750002 Tie rap 142mm *tie-rap 142mm |
293750002 |
US $15.50 |
||
|
9
|
9
293550004 Graisse dielect*grease-dielect dc4 |
293550004 |
US $59.94 |
||
|
10
|
10
211000074
Screw-plastite hex.unsl
|
211000074 |
— | ||
| replacement | |||||
|
10
|
10
243041660 Screw-plastite hex.unsl |
243041660 |
US $19.45 |
||
|
11
|
11
213200015
Washer-flat din.9021b-a2
|
213200015 |
— | ||
| replacement | |||||
|
11
|
11
234052600 Washer-flat din.9021b-a2 |
234052600 |
from US $1.32 |
||
|
13
|
13
215681660
Screw-hex.cap din.933a2
|
215681660 |
— | ||
| replacement | |||||
|
13
|
13
207181660 Screw-hex.cap din.933a2 |
207181660 |
US $10.65 |
||
|
14
|
14
213200001
Washer-flat din.125a-a2(m6)
|
213200001 |
— | ||
| replacement | |||||
|
14
|
14
234061600 Washer-flat din.125a-a2 |
234061600 |
US $10.25 |
||
|
15
|
15
278000682 Passe-fils gris*grommet-gray |
278000682 |
US $41.90 |
||
|
16
|
16
278000513
Solenoide dem. *relay-starter
|
278000513 |
— | ||
| replacement | |||||
|
16
|
16
278001802
Relais demareur*starter relay
|
278001802 |
— | ||
|
17
|
17
212000001
Nut-stop elastic din.985-a2(m6)
|
212000001 |
— | ||
| replacement | |||||
|
17
|
17
232561600 Nut-stop elastic din.985-a2 |
232561600 |
US $7.40 |
||
|
18
|
18
211000035
Screw-forming hex.hd.fl.din.7500d
|
211000035 |
— | ||
| replacement | |||||
|
18
|
18
210261040 Screw-forming hex.hd.fl.din.7500d |
210261040 |
US $9.60 |
||
|
19
|
19
215462550
Screw-tapp.hex.din.7976c
|
215462550 |
— | ||
| replacement | |||||
|
19
|
19
209462540 Screw-tapp.hex.iso.1479c |
209462540 |
US $9.80 |
||
|
20
|
20
293750001 Tie rap 94mm *tie-rap 94mm |
293750001 |
US $66.50 |
||
|
21
|
21
278000100 Bouchon elect. *cap-elect.wire |
278000100 |
US $13.35 |
||
|
22
|
22
278000663
Cablage boite *harness-box
Includes 22 - 29.; |
278000663 |
— | ||
|
23
|
23
270000137 Bloc 6 circ.fem*housing-tab |
270000137 |
US $12.19 |
||
|
24
|
24
278000735 Cale 6 circ.fem*wedge-6 ways f |
278000735 |
US $21.15 |
||
|
25
|
25
278000631 Cosse male *terminal-male |
278000631 |
US $58.70 |
||
|
26
|
26
278000230 Cosse male *terminal-male |
278000230 |
US $58.70 |
||
|
27
|
27
278001008 Etui thermique *sheath-insulat |
278001008 |
US $21.15 |
||
|
28
|
28
278001114 Cosse femelle *terminal-femal |
278001114 |
US $21.15 |
||
|
29
|
29
278000300
Cosse a anneau *barrel-open
|
278000300 |
— | ||
|
30
|
30
278000665
Cablage fusible*harness-fuse
Includes 30 - 36.; |
278000665 |
— | ||
|
31
|
31
278000345
Capuchon fusib.*cap-fuse
|
278000345 |
— | ||
| replacement | |||||
|
31
|
31
278001326 Cap.porte-fusib*cap holder-fuse |
278001326 |
US $48.05 |
||
|
32
|
32
278000343 Fusible 15 amp.*fuse-15 amp. |
278000343 |
US $21.15 |
||
|
33
|
33
278001009 Cosse femelle *terminal-femal |
278001009 |
US $21.15 |
||
|
34
|
34
278001007 Etui thermique *sheath-insulat |
278001007 |
US $22.45 |
||
|
35
|
35
278000805 Coussinet *cushion |
278000805 |
US $21.15 |
||
|
36
|
36
278000300
Cosse a anneau *barrel-open
|
278000300 |
— | ||
|
37
|
37
293150014 Rivet-pop 3/16 *rivet-pop 3/16 |
293150014 |
US $37 |
||
|
38
|
38
213200016 Washer-flat emhart |
213200016 |
US $9.50 |
||
|
39
|
39
278000664
Cablage masse *harness-ground
Includes 39 - 41.; |
278000664 |
— | ||
|
40
|
40
278000228 Cosse femelle *terminal-femal |
278000228 |
US $12.85 |
||
|
41
|
41
278000300
Cosse a anneau *barrel-open
|
278000300 |
— | ||
|
42
|
42
278000559 Support collier*support-collar |
278000559 |
US $10.17 |
||
|
43
|
43
278000712
Batterie *battery
|
278000712 |
— | ||
| replacement | |||||
|
43
|
43
278001756 Batterie yb16clb *battery (dry) |
278001756 |
US $182.53 |
||
|
44
|
44
211200018 Washer-flat m6 |
211200018 |
US $5.35 |
||
|
45
|
45
211000045
Screw-hexagonal cap
|
211000045 |
— | ||
| replacement | |||||
|
45
|
45
207161644 Screw-hex.cap din.933 |
207161644 |
US $9.50 |
||
|
46
|
46
211100022
Nut-battery m6
|
211100022 |
— | ||
| replacement | |||||
|
46
|
46
232061414 Nut-hexagonal din.934 |
232061414 |
US $6.80 |
||
|
47
|
47
293850031
Sangle batterie*strap-battery
|
293850031 |
— | ||
|
48
|
48
278000245 Support fils 3 *support-wire |
278000245 |
US $7.31 |
||
|
49
|
49
293750002 Tie rap 142mm *tie-rap 142mm |
293750002 |
US $15.50 |
||
|
50
|
50
278000511
Cable rouge *cable-red
Includes 50 - 53.; |
278000511 |
— | ||
|
51
|
51
278000100 Bouchon elect. *cap-elect.wire |
278000100 |
US $13.35 |
||
|
52
|
52
278000098 Passe-fils noir*grommet-black |
278000098 |
US $8.38 |
||
|
53
|
53
278000020 Capuchon batt. *cap-wire batt. |
278000020 |
US $30.35 |
||
|
54
|
54
278001234
Tampon inf.batt*pad-batt.lower
|
278001234 |
— | ||
| replacement | |||||
|
54
|
54
278001976 Tampon inf.batt*pad-batt.lower |
278001976 |
US $28.31 |
||
|
55
|
55
278000512
Battery ground cable
|
278000512 |
— | ||
|
56
|
56
278000609
Bougie br8es *plug-spark br8es
|
278000609 |
— | ||
| replacement | |||||
|
56
|
56
219703119 SPARK PLUG, NGK BR8-ES |
219703119 |
from US $10.34 |
||
|
57
|
57
212000001
Nut-stop elastic din.985-a2(m6)
|
212000001 |
— | ||
| replacement | |||||
|
57
|
57
232561600 Nut-stop elastic din.985-a2 |
232561600 |
US $7.40 |
||
|
58
|
58
278000965 Capteur temp. *sensor-temp. |
278000965 |
US $78.97 |
||
|
59
|
59
293800038 Loctite 518 *loctite-518 |
293800038 |
US $51.97 |
||
|
60
|
60
278001268
Fil bougie *wire-spark plug
|
278001268 |
— | ||
| replacement | |||||
|
60
|
60
278002198
Fil bougie *wire-spark plug
|
278002198 |
— | ||
|
61
|
61
278001268
Fil bougie *wire-spark plug
|
278001268 |
— | ||
| replacement | |||||
|
61
|
61
278002198
Fil bougie *wire-spark plug
|
278002198 |
— | ||
|
62
|
62
278000020 Capuchon batt. *cap-wire batt. |
278000020 |
US $30.35 |
||
|
63
|
63
278000444
Starter cable (red)
Includes 63 - 66.; |
278000444 |
— | ||
|
64
|
64
278000100 Bouchon elect. *cap-elect.wire |
278000100 |
US $13.35 |
||
|
65
|
65
278000098 Passe-fils noir*grommet-black |
278000098 |
US $8.38 |
||
|
66
|
66
278000020 Capuchon batt. *cap-wire batt. |
278000020 |
US $30.35 |
||
|
67
|
67
278000237
Capuchon bougie*cap-spark plug
|
278000237 |
— | ||
|
68
|
68
278001207
Cablage interm.*harness-interm
Includes 68 - 82.; |
278001207 |
— | ||
|
69
|
69
278000395 Bloc 4 circ.mal*housing-tab |
278000395 |
US $90.60 |
||
|
70
|
70
278000223 Cosse femelle *terminal-femal |
278000223 |
US $21.15 |
||
|
71
|
71
278000218 Joint de fil *seal-wire |
278000218 |
US $58.70 |
||
|
72
|
72
278000217 Bloc 2 circ.fem*housing-tab(f) |
278000217 |
US $54.25 |
||
|
73
|
73
278000222 Cosse male *terminal-male |
278000222 |
US $21.15 |
||
|
74
|
74
278000736 Bloc 6 circ.mal*housing-tab |
278000736 |
US $25.19 |
||
|
75
|
75
278000737 Cale 6 circ.mal*wedge-6 ways m |
278000737 |
US $19.45 |
||
|
76
|
76
278000632 Cosse femelle *terminal-femal |
278000632 |
US $28.40 |
||
|
77
|
77
293750002 Tie rap 142mm *tie-rap 142mm |
293750002 |
US $15.50 |
||
|
78
|
78
570150700
Prot.inter. *boot-switch
|
570150700 |
— | ||
|
79
|
79
278000992 Cosse a anneau *barrel-open |
278000992 |
US $28.40 |
||
|
80
|
80
278001013 Joint de fil *seal-wire |
278001013 |
from US $4.80 |
||
|
81
|
81
278001014 Cosse femelle *terminal-femal |
278001014 |
from US $6.09 |
||
|
82
|
82
278001012 Bloc 1 circ.mal*housing-tab |
278001012 |
US $84.60 |
||
|
83
|
83
278000666
Cablage fusible*harness-fuse
Includes 83 - 89.; |
278000666 |
— | ||
|
84
|
84
278000345
Capuchon fusib.*cap-fuse
|
278000345 |
— | ||
| replacement | |||||
|
84
|
84
278001326 Cap.porte-fusib*cap holder-fuse |
278001326 |
US $48.05 |
||
|
85
|
85
278000704 Fusible 7.5amp.*fuse-7.5 amp. |
278000704 |
US $19.45 |
||
|
86
|
86
278000805 Coussinet *cushion |
278000805 |
US $21.15 |
||
|
87
|
87
278001009 Cosse femelle *terminal-femal |
278001009 |
US $21.15 |
||
|
88
|
88
278001007 Etui thermique *sheath-insulat |
278001007 |
US $22.45 |
||
|
89
|
89
278000300
Cosse a anneau *barrel-open
|
278000300 |
— | ||
|
90
|
90
213200002
Washer-flat din.125a-a2(m8)
|
213200002 |
— | ||
| replacement | |||||
|
90
|
90
234081600 Washer-flat din.125a-a2 |
234081600 |
US $7.10 |
||
|
91
|
91
213400001
Washer-lock toothed din.6797a-a2
|
213400001 |
— | ||
| replacement | |||||
|
91
|
91
234381608 Washer-lock toothed din.6797a-a2 |
234381608 |
US $5.35 |
||
|
92
|
92
293800005 Loctite 271 *loctite-271 |
293800005 |
US $31.18 |
||
|
93
|
93
293750009 Tie rap 173mm *tie-rap 173mm |
293750009 |
US $6.70 |
||
