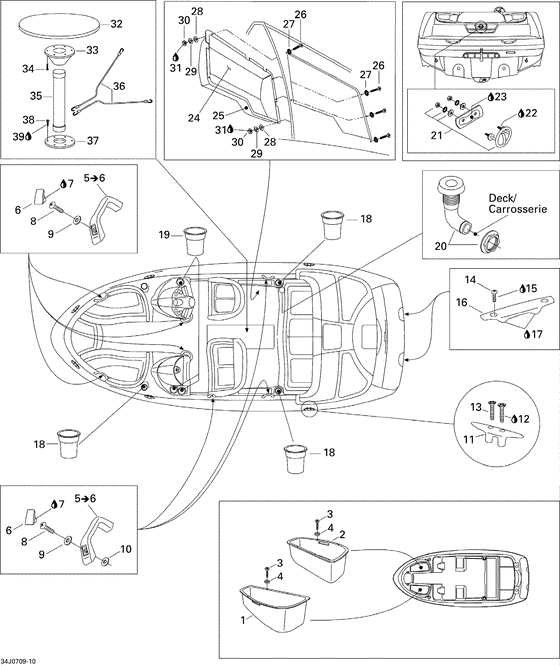

09- body and accessories Diagram Bombardier Utopia
- Year
- 2007
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
204072625
Coffre bagage*tray-storage/port
|
204072625 |
— | ||
|
2
|
2
204072626
Coffre bagage*tray-storage/stbd.
|
204072626 |
— | ||
|
3
|
3
204100049 Screw-tapp.ctsk.fl.hd.ph.#8 x 1 |
204100049 |
US $19.60 |
||
|
4
|
4
204100057 Rondelle-finit.*washer-finishing |
204100057 |
US $7.10 |
||
|
5
|
5
204071710
Poignee maint.*handle-grip
Includes 5 to 6; |
204071710 |
— | ||
|
7
|
7
413705800 Loctite 414 *loctite-414 |
413705800 |
US $33.61 |
||
|
8
|
8
205963060 Screw-socket bn.hd.s.grip iso.7380a2 |
205963060 |
US $1.79 |
||
|
9
|
9
234061600 Washer-flat din.125a-a2 |
234061600 |
US $10.25 |
||
|
10
|
10
204100089 Rondel.plate *washer-flat |
204100089 |
US $8.95 |
||
|
11
|
11
204070592 Agrafe base *cleat-openbase |
204070592 |
US $38.83 |
||
|
12
|
12
293800060 Loctite 243 *loctite-243 |
293800060 |
US $31.18 |
||
|
13
|
13
204100144 Screw-socket hd.ctsk.din.7991-a2/m6 |
204100144 |
US $7 |
||
|
14
|
14
205364060 Screw-socket hd.ctsk.din.7991-a2 |
205364060 |
US $19.60 |
||
|
15
|
15
293800060 Loctite 243 *loctite-243 |
293800060 |
US $31.18 |
||
|
16
|
16
204070194 Poignee maint. *handle-grip |
204070194 |
US $43.81 |
||
|
17
|
17
293800086
Scell.silicone *seal-silicone
|
293800086 |
— | ||
|
18
|
18
204072721
Coupole retenue*cup holder
|
204072721 |
— | ||
|
19
|
19
204072216 Coupole reten.*holder-cup/blk. |
204072216 |
US $14.81 |
||
|
20
|
20
204072742
Raccord-drain*fitting-drain
|
204072742 |
— | ||
|
21
|
21
204070206
Ancrage skieur *tow-ski (66449-1)
|
204070206 |
— | ||
|
22
|
22
293800005 Loctite 271 *loctite-271 |
293800005 |
US $31.18 |
||
|
23
|
23
293800086
Scell.silicone *seal-silicone
|
293800086 |
— | ||
|
24
|
24
204072697
Tapis-rangem.*carpet-side storage/stbd.
|
204072697 |
— | ||
|
24
|
24
204072701
Tapis-rangem.*carpet-side storage/port
|
204072701 |
— | ||
|
25
|
25
204072348
Rangem.later.*storage-side/port
|
204072348 |
— | ||
|
25
|
25
204072363
Rangem.later.*storage-side/stbd.
|
204072363 |
— | ||
|
26
|
26
204000130
Bolt-elevator
|
204000130 |
— | ||
|
27
|
27
234381608 Washer-lock toothed din.6797a-a2 |
234381608 |
US $5.35 |
||
|
28
|
28
234062600 Washer-flat din.9021b-a2 |
234062600 |
US $10 |
||
|
29
|
29
211200025 Rondelle frein *washer-lock 1/4 |
211200025 |
US $8.40 |
||
|
30
|
30
211100026 Nut-hexagonal 1/4-20 |
211100026 |
US $9.80 |
||
|
31
|
31
293800060 Loctite 243 *loctite-243 |
293800060 |
US $31.18 |
||
|
32
|
32
204072768
Table cockpit*table-cockpit
|
204072768 |
— | ||
|
33
|
33
204071315 Montage-table *mount-table/plast. |
204071315 |
US $50.97 |
||
|
34
|
34
209951960 Screw-tapp.ctsk.ov.hd.din.7983c-a2 |
209951960 |
US $14.50 |
||
|
35
|
35
204070634
Poteau table *post-table
|
204070634 |
— | ||
|
36
|
36
204070905 Courr.glaciere *strap-ice chest |
204070905 |
US $38.83 |
||
|
37
|
37
204071209 Base de table *base-plast.table |
204071209 |
US $56.05 |
||
|
38
|
38
209943260 Screw-tapp.ctsk.ov.hd.din.7983c-a2 |
209943260 |
US $9.50 |
||
|
39
|
39
293800086
Scell.silicone *seal-silicone
|
293800086 |
— |
