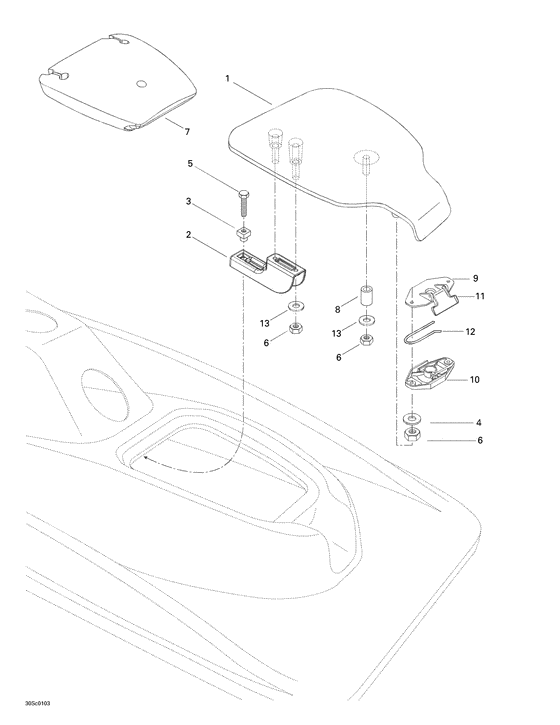

09- rear access cover Diagram Bombardier XP
- Year
- 2001
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
269500803
Couv.acces *cover-access
|
269500803 |
— | ||
| replacement | |||||
|
1
|
1
269501153 Couv.acces *access cover |
269501153 |
US $354.93 |
||
|
2
|
2
269500575
Reteneur base *keeper-base
Includes 2 - 3.; |
269500575 |
— | ||
|
3
|
3
211100033 Nut-square |
211100033 |
US $97.35 |
||
|
4
|
4
234061600 Washer-flat din.125a-a2 |
234061600 |
US $10.25 |
||
|
5
|
5
211000047 Screw-special m8 |
211000047 |
US $19.45 |
||
|
6
|
6
232561600 Nut-stop elastic din.985-a2 |
232561600 |
US $7.40 |
||
|
7
|
7
269500417
Flotteur *float
|
269500417 |
— | ||
|
8
|
8
291000177 Entretoise *spacer |
291000177 |
US $62.90 |
||
|
9
|
9
269700020
Couv.loquet *cover-latch
|
269700020 |
— | ||
| replacement | |||||
|
9
|
9
269700076
Couv.loquet *cover-latch
|
269700076 |
— | ||
|
10
|
10
269000015
Base loquet *base-latch
|
269000015 |
— | ||
| replacement | |||||
|
10
|
10
269700109 LATCH ASS Y |
269700109 |
US $26.30 |
||
|
11
|
11
269700016
Levier loquet *lever-latch
|
269700016 |
— | ||
| replacement | |||||
|
11
|
11
269700077
Levier loquet *lever-latch
|
269700077 |
— | ||
|
12
|
12
269700017 Ressort loquet *spring-latch |
269700017 |
US $29.13 |
||
|
13
|
13
234062600 Washer-flat din.9021b-a2 |
234062600 |
US $10 |
||
