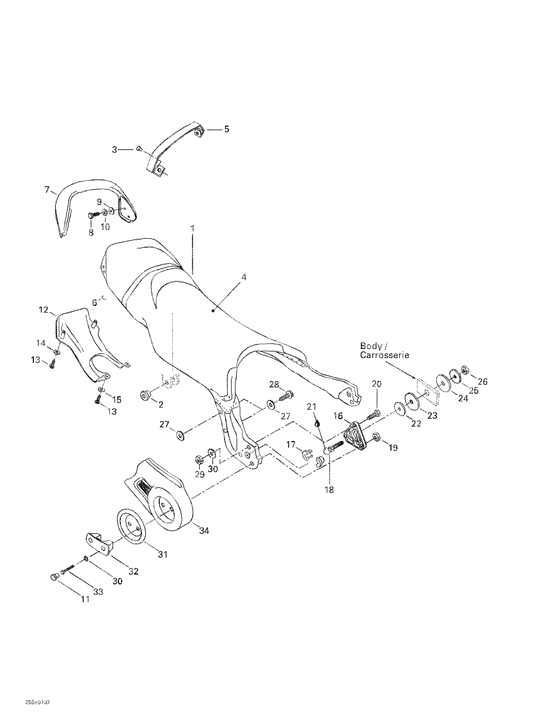

09- seat Diagram Bombardier XP
- Year
- 2002
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
269000432 Couv.chassis ga*cover-frame lh |
269000432 |
US $67.29 |
||
|
1
|
1
269000807
Siege sub.assy *seat-sub-assy
Includes 1 - 10.; |
269000807 |
— | ||
|
2
|
2
269000427
12mm*spacer-12mm
|
269000427 |
— | ||
|
3
|
3
293150067 Rivet tri-fast *rivet-tri-fast |
293150067 |
US $38.30 |
||
|
4
|
4
269000428
Housse & mousse*cover-& foam lrv
|
269000428 |
— | ||
| replacement | |||||
|
4
|
4
269000807
Siege sub.assy *seat-sub-assy
|
269000807 |
— | ||
|
5
|
5
269000443
Sangle de siege*strap-yellow
|
269000443 |
— | ||
|
6
|
6
293730005
Agrafe monelle *staple-monelle
|
293730005 |
— | ||
|
7
|
7
269000434
Poignee noire *handle-grab
|
269000434 |
— | ||
|
8
|
8
207382560 Screw-hex.cap din.933a2 s.grip |
207382560 |
US $31.10 |
||
|
9
|
9
234081600 Washer-flat din.125a-a2 |
234081600 |
US $7.10 |
||
|
10
|
10
234181601 Washer-lock helical din.127b-a2 |
234181601 |
US $7.10 |
||
|
11
|
11
277000203 Capuchon gaine *cap-grip black |
277000203 |
US $20.02 |
||
|
12
|
12
269000429
Couv.chass.arr.*cover-body rr.
|
269000429 |
— | ||
|
13
|
13
243041660 Screw-plastite hex.unsl |
243041660 |
US $19.45 |
||
|
14
|
14
234051600 Washer-flat din.125a-a2 |
234051600 |
US $10 |
||
|
15
|
15
234052600 Washer-flat din.9021b-a2 |
234052600 |
from US $1.32 |
||
|
16
|
16
269000448 Pivot siege *pivot-seatIncludes 16 - 20.; |
269000448 |
US $55.03 |
||
|
19
|
19
232561600 Nut-stop elastic din.985-a2 |
232561600 |
US $7.40 |
||
|
20
|
20
207063044 Screw-hex.cap din.931 |
207063044 |
US $16 |
||
|
21
|
21
293550010 Graisse synth. *grease-synth. |
293550010 |
US $33.61 |
||
|
22
|
22
211200030
Rondelle *washer
|
211200030 |
— | ||
|
23
|
23
293830029 Rondelle caout.*washer-rubber |
293830029 |
US $11.15 |
||
|
24
|
24
293830032
Rondelle caout.*washer-rubber
|
293830032 |
— | ||
|
25
|
25
269000137 Rondelle *washer |
269000137 |
US $58.30 |
||
|
26
|
26
232581650
Nut-stop elastic din.985a2 wax/lube
|
232581650 |
— | ||
|
27
|
27
234042600 Washer-flat din.9021b-a2 |
234042600 |
US $7.40 |
||
|
28
|
28
241142560 Screw-pt.hex.flange k40 x 25 |
241142560 |
from US $2.54 |
||
|
29
|
29
232561600 Nut-stop elastic din.985-a2 |
232561600 |
US $7.40 |
||
|
30
|
30
234061600 Washer-flat din.125a-a2 |
234061600 |
US $10.25 |
||
|
31
|
31
292000438
Coquille *shell
|
292000438 |
— | ||
|
32
|
32
269000430
Amarre siege *bow-eye seat
|
269000430 |
— | ||
|
33
|
33
207165060 Screw-hex.cap din.933a2 |
207165060 |
US $29.75 |
||
|
34
|
34
269000431
Couv.chassis dr*cover-frame rh
|
269000431 |
— | ||
