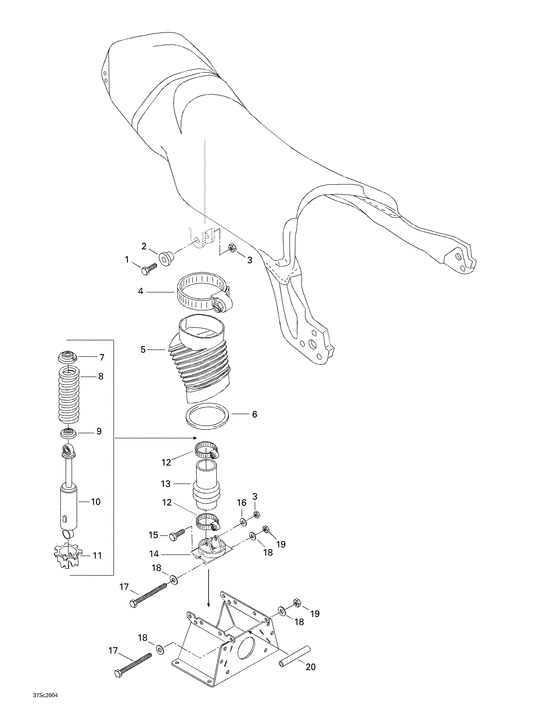

09- seat suspension Diagram Bombardier XP
- Year
- 2000
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
207007060 Screw-hex.cap iso.4014 |
207007060 |
US $19.45 |
||
|
2
|
2
269000427
12mm*spacer-12mm
|
269000427 |
— | ||
|
3
|
3
232501600 Nut-stop elastic din.985a2 |
232501600 |
US $10.65 |
||
|
4
|
4
293650054 Bride serrage *clamp-tridon |
293650054 |
US $53.65 |
||
|
5
|
5
291001470
Soufflet ext. *bellow-outer
|
291001470 |
— | ||
|
6
|
6
293000012 Bague retenue *retainer ring |
293000012 |
US $19.43 |
||
|
7
|
7
503140600
Butee ressort *stopper-spring
|
503140600 |
— | ||
| replacement | |||||
|
7
|
7
503191611
Butee ressort *stopper-spring
|
503191611 |
— | ||
|
8
|
8
291001245
Ressort *spring
|
291001245 |
— | ||
|
9
|
9
503165100 Guide ressort *guide-spring |
503165100 |
US $2.52 |
||
|
10
|
10
291001244
Amortisseur *shock
|
291001244 |
— | ||
|
11
|
11
291001088 Bague reglage *adjuster ring |
291001088 |
US $15.18 |
||
|
12
|
12
293650006 Bride serrage *clamp-tridon |
293650006 |
US $10.92 |
||
|
13
|
13
291001247
Soufflet amort.*bellow-shock
|
291001247 |
— | ||
|
14
|
14
291001201
Supp.amort.inf.*supp-shock low
|
291001201 |
— | ||
| replacement | |||||
|
14
|
14
291001198400
Supp.amort.inf.*supp-shock low
|
291001198400 |
— | ||
|
15
|
15
207006060
Screw-hex.cap iso.4014
|
207006060 |
— | ||
|
16
|
16
234001600 Washer-flat din.125a-a2 |
234001600 |
US $7.40 |
||
|
17
|
17
230062060 Screw-hex.cap din.931a2 |
230062060 |
US $10.69 |
||
|
18
|
18
234062600 Washer-flat din.9021b-a2 |
234062600 |
US $10 |
||
|
19
|
19
232561600 Nut-stop elastic din.985-a2 |
232561600 |
US $7.40 |
||
|
20
|
20
291000757 Entretoise *spacer |
291000757 |
US $21.39 |
||
