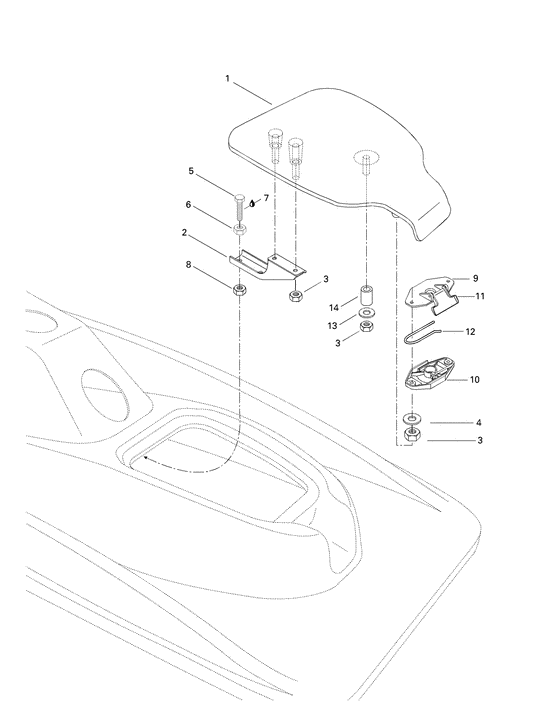

09- rear access cover Diagram Bombardier XP
- Year
- 1997
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
269500343
Couv.acces *cover-access
|
269500343 |
— | ||
|
2
|
2
269500183
Reteneur de base
|
269500183 |
— | ||
|
3
|
3
212000001
Nut-stop elastic din.985-a2(m6)
|
212000001 |
— | ||
| replacement | |||||
|
3
|
3
232561600 Nut-stop elastic din.985-a2 |
232561600 |
US $7.40 |
||
|
4
|
4
213200001
Washer-flat din.125a-a2(m6)
|
213200001 |
— | ||
| replacement | |||||
|
4
|
4
234061600 Washer-flat din.125a-a2 |
234061600 |
US $10.25 |
||
|
5
|
5
215084060
Screw-hex.cap din.933a2
|
215084060 |
— | ||
| replacement | |||||
|
5
|
5
207184060 Screw-hex.cap din.933a2 |
207184060 |
US $14.35 |
||
|
6
|
6
212100001
Nut-hexagonal din.934a2
|
212100001 |
— | ||
| replacement | |||||
|
6
|
6
232081600 Nut-hexagonal din.934a2 |
232081600 |
US $9.50 |
||
|
7
|
7
293800015
Loctite 242 *loctite-242
|
293800015 |
— | ||
| replacement | |||||
|
7
|
7
293800060 Loctite 243 *loctite-243 |
293800060 |
US $31.18 |
||
|
8
|
8
212000002
Nut-stop elastic din.985a2
|
212000002 |
— | ||
| replacement | |||||
|
8
|
8
232581600 Nut-stop elastic din.985a2 |
232581600 |
from US $2.39 |
||
|
9
|
9
269700020
Couv.loquet *cover-latch
|
269700020 |
— | ||
| replacement | |||||
|
9
|
9
269700076
Couv.loquet *cover-latch
|
269700076 |
— | ||
|
10
|
10
269000015
Base loquet *base-latch
|
269000015 |
— | ||
| replacement | |||||
|
10
|
10
269700109 LATCH ASS Y |
269700109 |
US $26.30 |
||
|
11
|
11
269700016
Levier loquet *lever-latch
|
269700016 |
— | ||
| replacement | |||||
|
11
|
11
269700077
Levier loquet *lever-latch
|
269700077 |
— | ||
|
12
|
12
269700017 Ressort loquet *spring-latch |
269700017 |
US $29.13 |
||
|
13
|
13
213200007
Washer-flat din.9021b-a2(m6)
|
213200007 |
— | ||
| replacement | |||||
|
13
|
13
234062600 Washer-flat din.9021b-a2 |
234062600 |
US $10 |
||
|
14
|
14
291000177 Entretoise *spacer |
291000177 |
US $62.90 |
||
|
15
|
15
269500417
Flotteur *float
not shown (under item #1); |
269500417 |
— | ||
