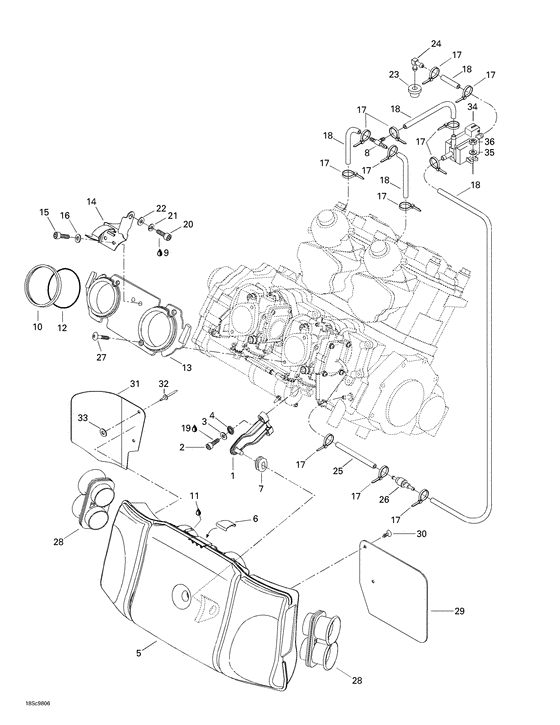

02- air intake system Diagram Bombardier XP
- Year
- 1998
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
273000123
Supp.silenc.adm*supp.silenc
|
273000123 |
— | ||
| replacement | |||||
|
1
|
1
273000227 Supp.silenc.adm*supp.silenc |
273000227 |
US $21.39 |
||
|
2
|
2
215963560
Screw-socket hd.din.912a2
|
215963560 |
— | ||
| replacement | |||||
|
2
|
2
205063560 Screw-socket hd.din.912a2 |
205063560 |
US $14.35 |
||
|
3
|
3
213200001
Washer-flat din.125a-a2(m6)
|
213200001 |
— | ||
| replacement | |||||
|
3
|
3
234061600 Washer-flat din.125a-a2 |
234061600 |
US $10.25 |
||
|
4
|
4
217161600
Washer-lock serrated din.6798a-a2
|
217161600 |
— | ||
| replacement | |||||
|
4
|
4
234461608 Washer-lock serrated din.6798a-a2 |
234461608 |
US $7.40 |
||
|
5
|
5
273000136
Silencieux adm.*silencer-air
|
273000136 |
— | ||
| replacement | |||||
|
5
|
5
295500760
Ens. silencieu*air intake kit
|
295500760 |
— | ||
|
6
|
6
273000112
Plaque support *plate-support
|
273000112 |
— | ||
| replacements | |||||
|
6
|
6
273000204 Plaque support *plate-support |
273000204 |
US $13.21 |
||
|
6
|
6
250400015 Goup.surete *pin-hair |
250400015 |
US $3.83 |
||
|
7
|
7
293720052
Passe-fils *grommet-cable
|
293720052 |
— | ||
|
8
|
8
293710068 Raccord en t *fitting-t |
293710068 |
US $104.70 |
||
|
9
|
9
293800015
Loctite 242 *loctite-242
|
293800015 |
— | ||
| replacement | |||||
|
9
|
9
293800060 Loctite 243 *loctite-243 |
293800060 |
US $31.18 |
||
|
10
|
10
293250076
Joint etanche *gasket
|
293250076 |
— | ||
| replacement | |||||
|
10
|
10
293250122 Joint etanche *gasket |
293250122 |
US $360.65 |
||
|
11
|
11
293550004 Graisse dielect*grease-dielect dc4 |
293550004 |
US $59.94 |
||
|
12
|
12
293250065 Joint torique *o-ring |
293250065 |
US $155.40 |
||
|
13
|
13
270500383
Adap.silenc.adm*adap-silenc.air
|
270500383 |
— | ||
|
14
|
14
270000419
Disp.retenue *holder
|
270000419 |
— | ||
| replacement | |||||
|
14
|
14
270000455 Disp.retenue *holder |
270000455 |
US $38.44 |
||
|
15
|
15
211000177
Screw-socket din.912a2 s.grip
|
211000177 |
— | ||
| replacement | |||||
|
15
|
15
205561260 Screw-socket din.912a2 s.grip |
205561260 |
US $20.40 |
||
|
16
|
16
213200001
Washer-flat din.125a-a2(m6)
|
213200001 |
— | ||
| replacement | |||||
|
16
|
16
234061600 Washer-flat din.125a-a2 |
234061600 |
US $10.25 |
||
|
17
|
17
293750001 Tie rap 94mm *tie-rap 94mm |
293750001 |
US $66.50 |
||
|
18
|
18
270000374 Boyau 4.3mm *hose-4.3mm |
270000374 |
US $198.15 |
||
|
19
|
19
293800005 Loctite 271 *loctite-271 |
293800005 |
US $31.18 |
||
|
20
|
20
215981660
Screw-socket hd.din.912a2
|
215981660 |
— | ||
| replacement | |||||
|
20
|
20
205081660 Screw-socket hd.din.912a2 |
205081660 |
US $10.65 |
||
|
21
|
21
213000001
Washer-lock helical din.127b-a2
|
213000001 |
— | ||
| replacement | |||||
|
21
|
21
234181601 Washer-lock helical din.127b-a2 |
234181601 |
US $7.10 |
||
|
22
|
22
213200011
Washer-flat din.9021b-a2
|
213200011 |
— | ||
| replacement | |||||
|
22
|
22
234082600 Washer-flat din.9021b-a2 |
234082600 |
US $31.10 |
||
|
23
|
23
293720029 Passe-fils *grommet |
293720029 |
US $9.25 |
||
|
24
|
24
293710050 Raccord coude90*fitting-elbow |
293710050 |
US $77.70 |
||
|
25
|
25
276000048 Boyau 6mm. *hose-6mm. |
276000048 |
US $121.95 |
||
|
26
|
26
275500417
Soupape retenue*valve-check
|
275500417 |
— | ||
| replacement | |||||
|
26
|
26
275500479
Soupape retenue*valve-check
|
275500479 |
— | ||
|
27
|
27
270500357
Vis ass. *screw-assy.
|
270500357 |
— | ||
|
28
|
28
273000107
Tube entree sup*tube-inlet top
|
273000107 |
— | ||
|
29
|
29
273000134
Deflecteur *deflector
|
273000134 |
— | ||
|
30
|
30
293730010 Dard noir *dart-black |
293730010 |
US $13.40 |
||
|
31
|
31
273000135
Deflecteur stl.*deflector-stlss.
|
273000135 |
— | ||
|
32
|
32
204000081 Rivet-pop 3/16 *rivet-pop 3/16 |
204000081 |
US $19.20 |
||
|
33
|
33
211200035 Washer-flat |
211200035 |
US $7.10 |
||
|
34
|
34
270600005 Soupape solenoi*valve-solenoid |
270600005 |
US $128.71 |
||
|
35
|
35
213200004
Washer-flat din.125a-a2
|
213200004 |
— | ||
| replacement | |||||
|
35
|
35
234051600 Washer-flat din.125a-a2 |
234051600 |
US $10 |
||
|
36
|
36
212000004
Nut-stop elastic din.985a2
|
212000004 |
— | ||
| replacement | |||||
|
36
|
36
232551600 Nut-stop elastic din.985a2 |
232551600 |
US $7.40 |
||
