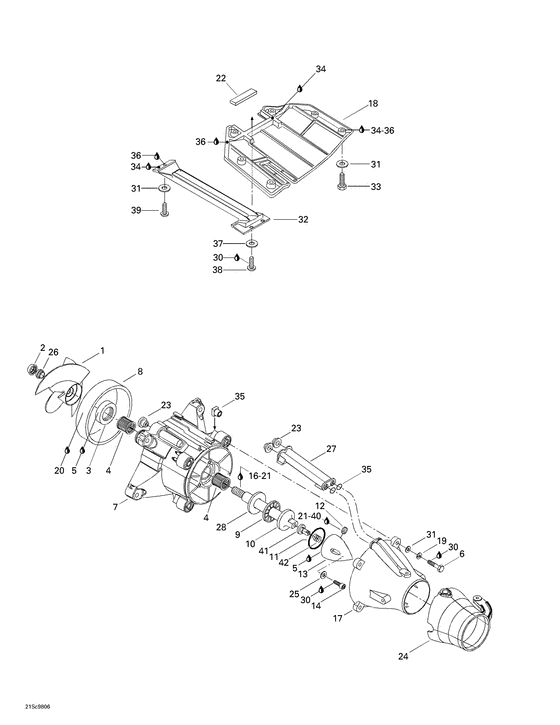

05- propulsion system Diagram Bombardier XP
- Year
- 1998
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
271000920 Helice stlss.as*impeller-assy. |
271000920 |
US $433.02 |
||
|
2
|
2
271000516 Prot.helice *boot-impeller |
271000516 |
US $20.80 |
||
|
3
|
3
293200025
Anneau etanche *double lip seal
|
293200025 |
— | ||
| replacement | |||||
|
3
|
3
267000094 Anneau etanche *oil seal |
267000094 |
from US $24.34 |
||
|
4
|
4
293350017 Roulement aigui*needle bearing |
293350017 |
US $31.18 |
||
|
5
|
5
293800038 Loctite 518 *loctite-518 |
293800038 |
US $51.97 |
||
|
6
|
6
215684560
Screw-hex.cap din.931a2
|
215684560 |
— | ||
| replacement | |||||
|
6
|
6
207084560 Screw-hex.cap din.931a2 |
207084560 |
US $21.75 |
||
|
7
|
7
271000872
Carter helice *housing-impel.ass.
Includes 7 - 8.; |
271000872 |
— | ||
| replacement | |||||
|
7
|
7
295500932
Repair pump kit
Includes 7 - 8.; |
295500932 |
— | ||
|
8
|
8
271000904 Bague d usure *wear ring |
271000904 |
US $84.97 |
||
|
9
|
9
293350019 Palier a butee *thrust-bearing |
293350019 |
US $29.53 |
||
|
10
|
10
271000886 Arbre helice *shaft-impeller |
271000886 |
US $168.25 |
||
|
11
|
11
293250085 Joint etanche *gasket |
293250085 |
US $13.10 |
||
|
12
|
12
211500001 Plug-pipe socket hd sae-j-531 |
211500001 |
US $43.50 |
||
|
13
|
13
271000874
Couvercle turb.*cover-impeller
|
271000874 |
— | ||
| replacement | |||||
|
13
|
13
267000038
Couvercle turb.*cover-impeller
|
267000038 |
— | ||
|
14
|
14
215952060
Screw-socket hd.din.912a2
|
215952060 |
— | ||
| replacement | |||||
|
14
|
14
205052060
Screw-socket hd.din.912a2
|
205052060 |
— | ||
|
15
|
15
211100033 Nut-square |
211100033 |
US $97.35 |
||
|
16
|
16
293800005 Loctite 271 *loctite-271 |
293800005 |
US $31.18 |
||
|
17
|
17
271000864
Venturi ass. *venturi-assy.
|
271000864 |
— | ||
| replacement | |||||
|
17
|
17
271001079
Venturi noir *venturi
|
271001079 |
— | ||
|
18
|
18
271000834
Plaque promenad*plate-riding
|
271000834 |
— | ||
| replacements | |||||
|
18
|
18
278001668
Capteur vitesse*sensor-speed
|
278001668 |
— | ||
|
18
|
18
271001453 Plaque promenad*plate-riding |
271001453 |
US $258.01 |
||
|
19
|
19
213000001
Washer-lock helical din.127b-a2
|
213000001 |
— | ||
| replacement | |||||
|
19
|
19
234181601 Washer-lock helical din.127b-a2 |
234181601 |
US $7.10 |
||
|
20
|
20
293800054 Loctite 648, 50 ml |
293800054 |
US $76.04 |
||
|
21
|
21
293800041 Appret loctite *primer-loctite |
293800041 |
US $47.91 |
||
|
22
|
22
293200003 Joint etanche *seal-tray |
293200003 |
US $37.20 |
||
|
23
|
23
293250084 Joint torique *o-ring |
293250084 |
US $9.15 |
||
|
24
|
24
271000806
Buse direc.noir*nozzle-black
|
271000806 |
— | ||
| replacement | |||||
|
24
|
24
267000079
Buse direc.noir*nozzle-black
|
267000079 |
— | ||
|
25
|
25
213200004
Washer-flat din.125a-a2
|
213200004 |
— | ||
| replacement | |||||
|
25
|
25
234051600 Washer-flat din.125a-a2 |
234051600 |
US $10 |
||
|
26
|
26
271000517 Bague *ring |
271000517 |
US $104 |
||
|
27
|
27
271000785 Sortie d eau *outlet-water |
271000785 |
US $4.90 |
||
|
28
|
28
293350020 Rondelle appuie*thrust washer |
293350020 |
US $56.55 |
||
|
29
|
29
293600011 Huile de pompe *oil-pump |
293600011 |
US $256.68 |
||
|
30
|
30
293800015
Loctite 242 *loctite-242
|
293800015 |
— | ||
| replacement | |||||
|
30
|
30
293800060 Loctite 243 *loctite-243 |
293800060 |
US $31.18 |
||
|
31
|
31
213200002
Washer-flat din.125a-a2(m8)
|
213200002 |
— | ||
| replacement | |||||
|
31
|
31
234081600 Washer-flat din.125a-a2 |
234081600 |
US $7.10 |
||
|
32
|
32
271000763
Grille pompe *grate-pump
|
271000763 |
— | ||
| replacement | |||||
|
32
|
32
271001525
Grille pompe *grate-pump
|
271001525 |
— | ||
|
33
|
33
210000007
Screw-hex.cap din.933a2
|
210000007 |
— | ||
| replacement | |||||
|
33
|
33
207183060 Screw-hex.cap din.933a2 |
207183060 |
US $10.20 |
||
|
34
|
34
293800053
Scellant *sealant
|
293800053 |
— | ||
| replacement | |||||
|
34
|
34
219700363
Instant gasket *instant gasket
|
219700363 |
— | ||
|
35
|
35
293300013 Joint torique *o-ring |
293300013 |
US $100 |
||
|
36
|
36
293800033
Scell.silicone *seal-silicone
|
293800033 |
— | ||
| replacement | |||||
|
36
|
36
293800086
Scell.silicone *seal-silicone
|
293800086 |
— | ||
|
37
|
37
213200001
Washer-flat din.125a-a2(m6)
|
213200001 |
— | ||
| replacement | |||||
|
37
|
37
234061600 Washer-flat din.125a-a2 |
234061600 |
US $10.25 |
||
|
38
|
38
215061660
Screw-hex.cap din.933a2
|
215061660 |
— | ||
| replacement | |||||
|
38
|
38
207161660 Screw-hex.cap din.933a2 |
207161660 |
US $9.50 |
||
|
39
|
39
211000174
Screw-hex.cap din.933a2 s.grip
|
211000174 |
— | ||
| replacement | |||||
|
39
|
39
207382560 Screw-hex.cap din.933a2 s.grip |
207382560 |
US $31.10 |
||
|
40
|
40
293800013 Scellant tuyau *sealant-pipe |
293800013 |
US $106.05 |
||
|
41
|
41
271000898
Poussoir *pusher
|
271000898 |
— | ||
| replacement | |||||
|
41
|
41
271000978 Poussoir *pusher |
271000978 |
US $12.19 |
||
|
42
|
42
271000704 Ressort *spring |
271000704 |
US $36.52 |
||
